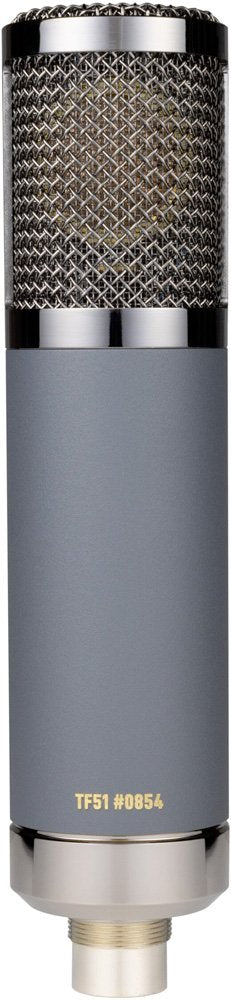

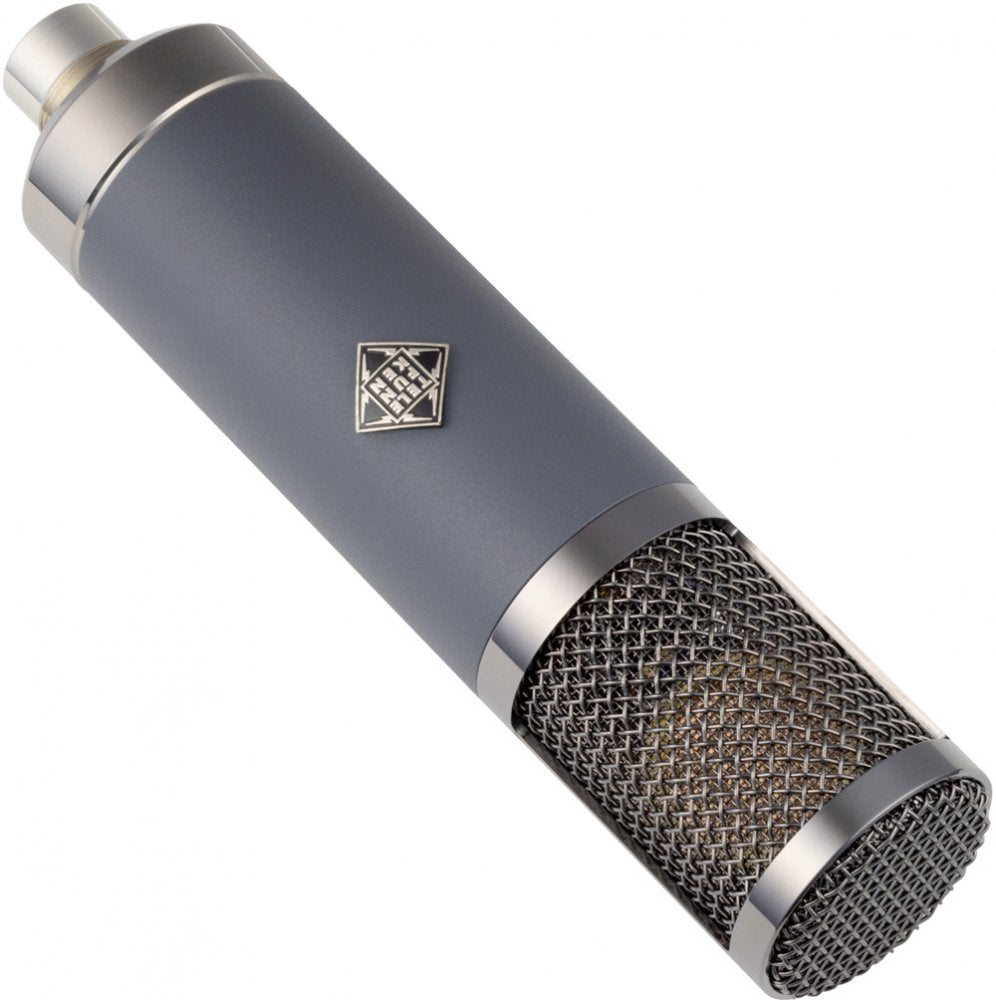

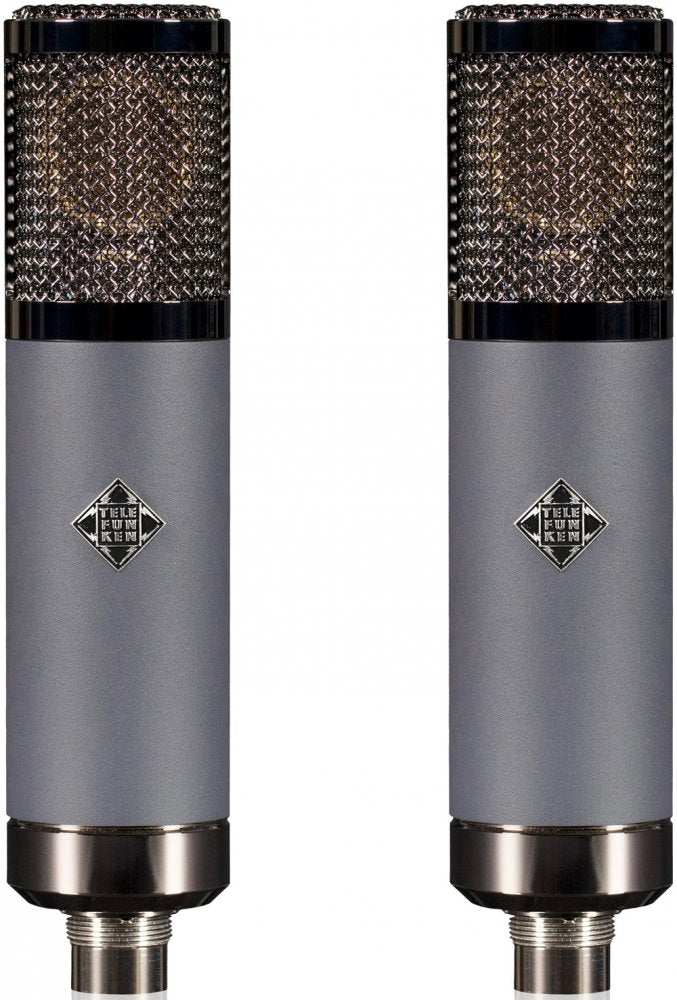

TF51 Matched Pair

The TF51 is a fresh take on the "Austrian" microphone sound associated with the legendary TELEFUNKEN ELA M 251E and C12. The TF51 continues this legacy, exhibiting a smooth midrange and airy top end and capturing every nuance in pleasant detail. The TF51 is a reliable first choice for stand out vocals, acoustic instruments, and percussion. Similar to the 251E and C12, the TF51 features a CK12-style edge terminated capsule, 6072A vacuum tube, and custom-made Haufe transformer. The combination of these components provides a beautifully open and smooth sonic profile, with a certain level of articulation that can only be described as lifelike.

• Airy and open top end, reminiscent of the ELA M 251E

• Balanced low end and natural midrange

• Cardioid, Omni, and Figure 8 polar pattern selection

• CK12-style capsule and German-made Haufe transformer

• TELEFUNKEN Elektroakustik 6072A vacuum tube

• Designed and hand assembled in the USA

• Recommended Applications: Vocals, Acoustic Guitar, Violin, Drum Overheads

Type: Vacuum Tube Condenser

Polar Pattern: Cardioid, Omnidirectional, Figure-8

Frequency Range: 20 Hz " 20 kHz, ±3 dB

Power Source: External Power Supply

Capsule: TK51 Edge Terminated Large Diaphragm

Tube: TELEFUNKEN Elektroakustik 6072A

Transformer: Haufe T31

Sensitivity: 19 mV/Pa, ±1 dB

THD at 1kHZ at 1Pa (Amplifier): < 0.4%

Output Impedance: < 300 Ω

Maximum SPL (for 1% THD): 128 dB

S/N Ratio: 86 dBA

Self Noise (Amplifier): 8 dBA

Dimensions: 200 mm L x 46 mm Dia

Weight: 615 g

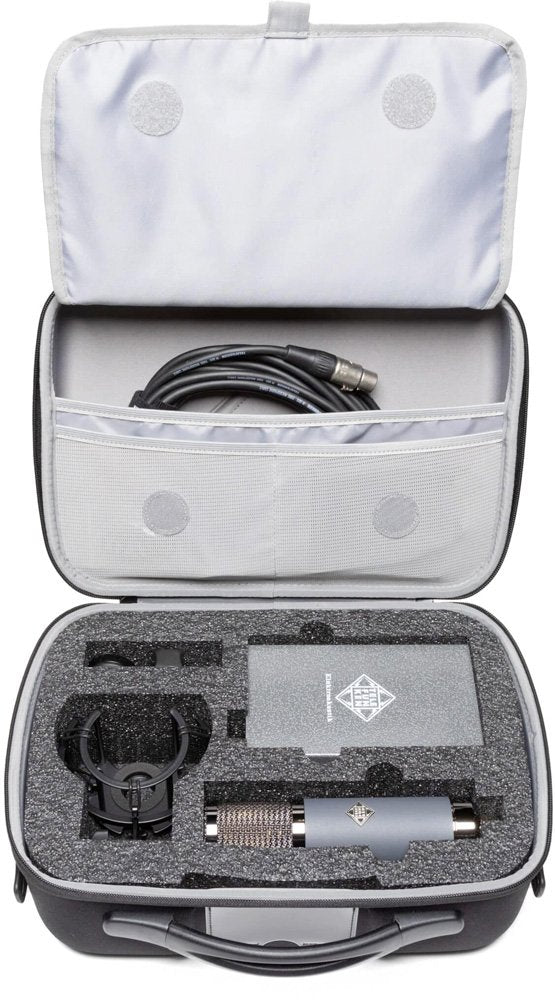

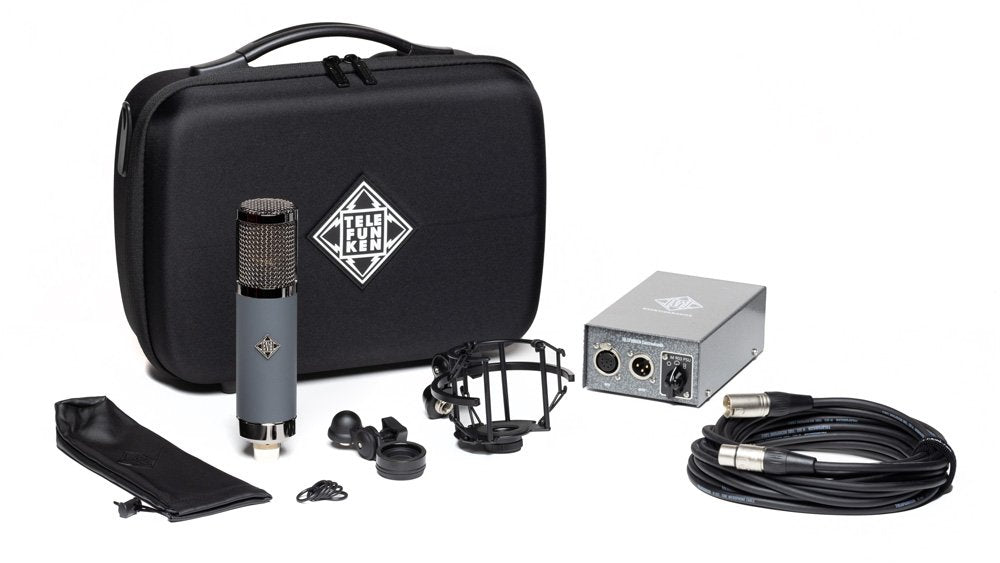

EACH SYSTEM (2) INCLUDES:

TF51 Microphone

M 903 Power Supply

M 803 Tube Microphone Cable " 7m

ZC03 Zipper Case

M 703 Shock Mount

M 782 Stand Mount

MS01 Microphone Sleeve
