TELEFUNKEN

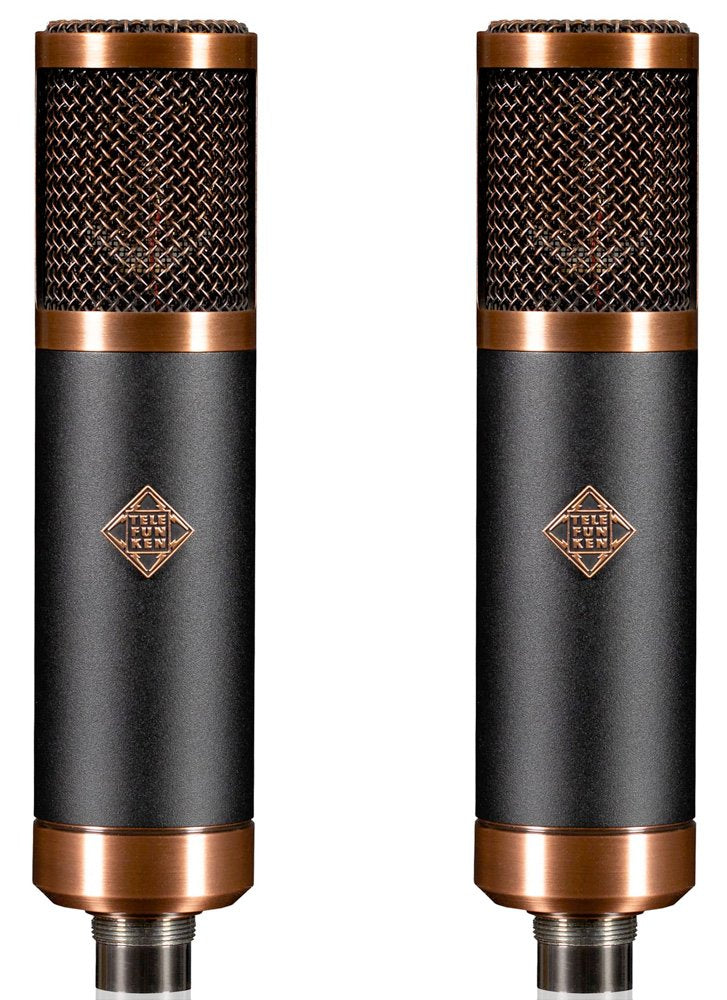

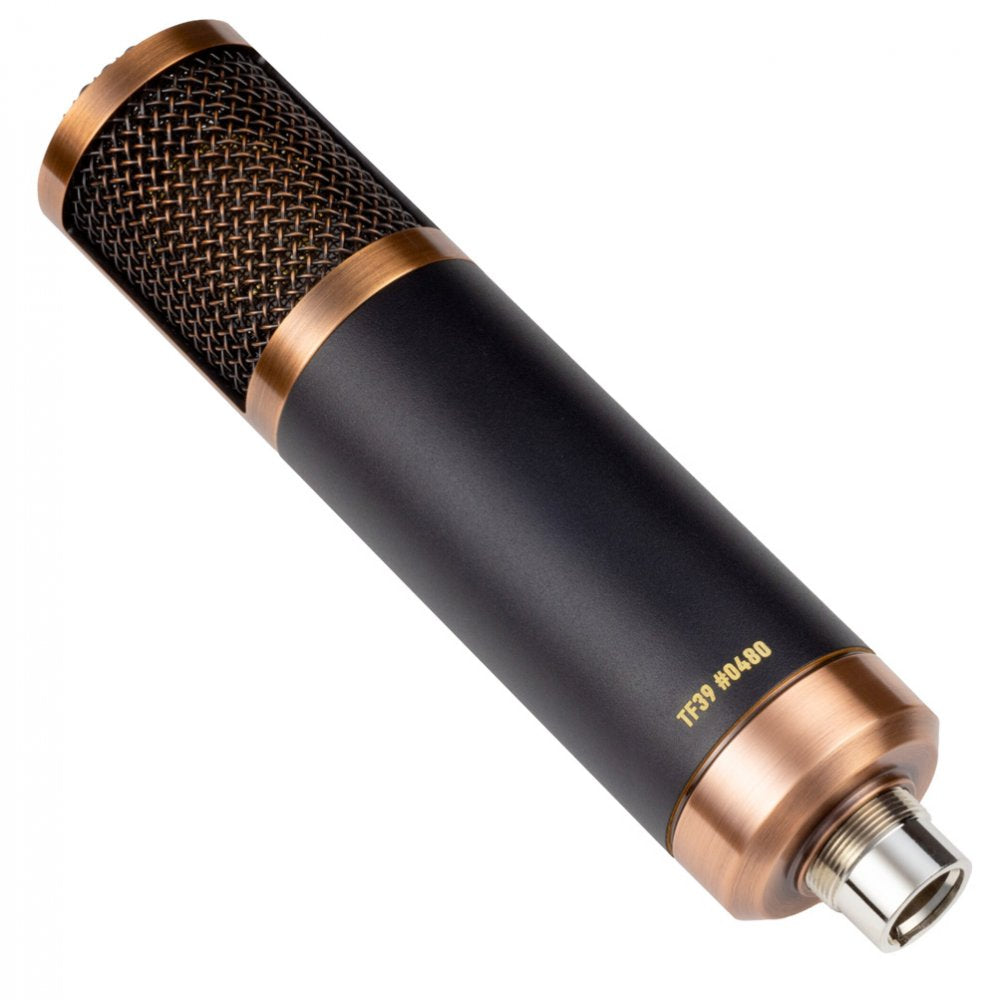

TF39 Copperhead Matched Pair

$5,065.00 CAD

Description

The TF39 is an expansion of the "Copperhead" sound with the addition of 3-pattern selection between Cardioid, Omnidirectional, and Figure-8. This added feature set gives the TF39 greater flexibility and options in the studio.

Features

• Balanced, natural midrange and high end

• Extended low frequency response

• Cardioid, Omni, and Figure 8 polar pattern selection

• Premium Swedish-made Lundahl output transformer

• New Old Stock General Electric 5654W vacuum tube

• Designed and hand assembled in the USA

• Recommended Applications: Vocals, Guitar Amps, Saxophone, Drum Overheads

Specifications

Type: Vacuum Tube Condenser

Polar Pattern: Cardioid, Omnidirectional, Figure-8

Frequency Range: 20 Hz " 20 kHz, ±3 dB

Power Source: External Power Supply

Capsule: TK67 Center Terminated Large Diaphragm

Tube: NOS GE 5654W

Transformer: Lundahl LL1935

Sensitivity: 17 mV/Pa, ±1 dB

THD at 1kHZ at 1Pa (Amplifier): < 0.3%

Output Impedance: < 300 Ω

Maximum SPL (for 1% THD): 130 dB

S/N Ratio: 87 dBA

Self Noise (Amplifier): 7 dBA

Dimensions: 200 mm L x 46 mm Dia

Weight: 650 g

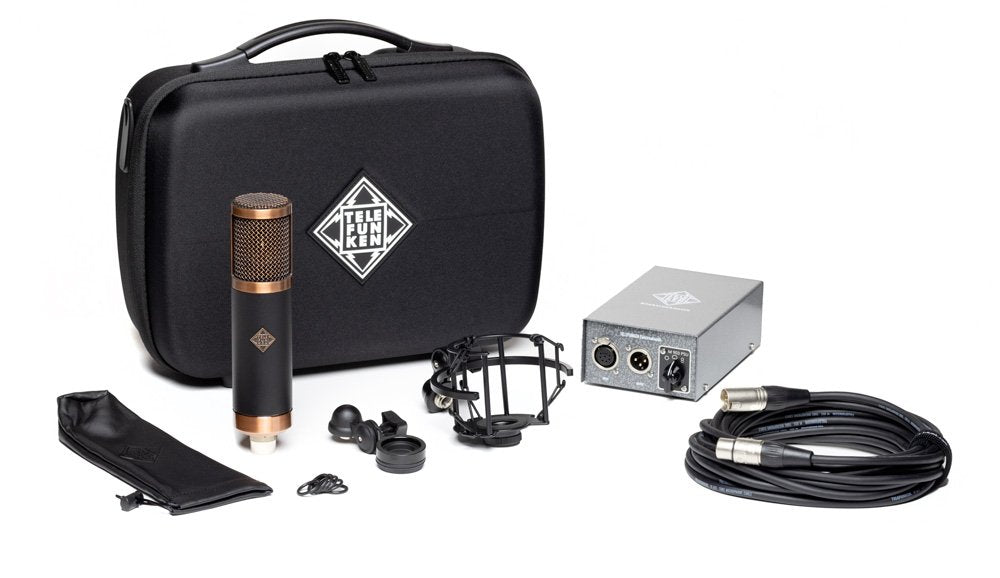

EACH SYSTEM (2) INCLUDES:

TF39 Microphone

M 903 Power Supply

M 803 Tube Microphone Cable " 7m

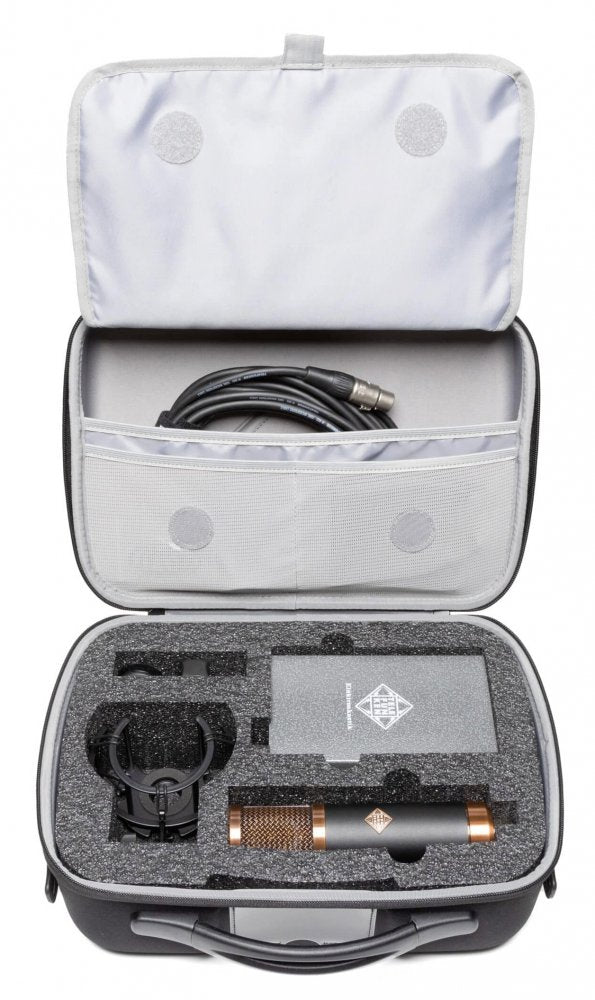

ZC03 Zipper Case

M 703 Shock Mount

M 782 Stand Mount

MS01 Microphone Sleeve
