MANLEY LABS  |  Barcode: MSHLR

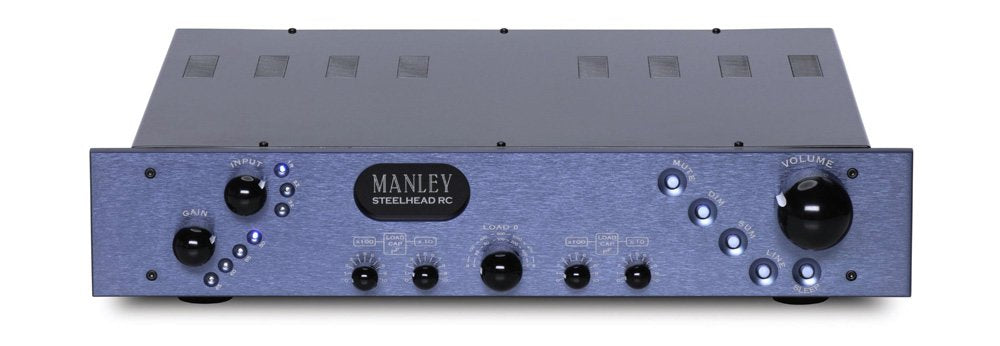

Steelhead RC Phono Stage

$15,500.00 CAD
Request a Quote – For Authorized Dealers Only

Description

It has two inputs that function with the selectable impedance load switch 25, 50, 100, 200 and 400 Ohms via Mr. Clever "Steelhead" transformer/autoformer. It also has an input that functions with the resistive input loading values of: 100,

Specifications

Vacuum tube complement: 6922 SOVTEK Russian x 2 (gain) plus JAN NOS GE 7044 or 5687 x 4 (output buffers)

Fuse type and ratings @ 117 VAC operation: 1.5 Amp 3AG slow-blow mains fuse 0.5 Amp 3AG slow-blow logic fuse

Fuse type and ratings @ 230 VAC operation: 0.75 Amp 3AG slow-blow mains fuse 0.25 Amp 3AG slow-blow logic fuse

Resistively Loaded selections: 5-step user adjustable via fixed low-noise resistors. 100,
