TRIAD-ORBIT

SM-PM2

Hinged pipe mount adapter plate, vaulted and sloped ceiling compatibility, 90° vertical drop, 3/4" NPS pipe support, speaker mount integration

$121.00 CAD
Request a Quote – For Authorized Dealers Only

Can't find the product you're looking for?

Contact Us

Description

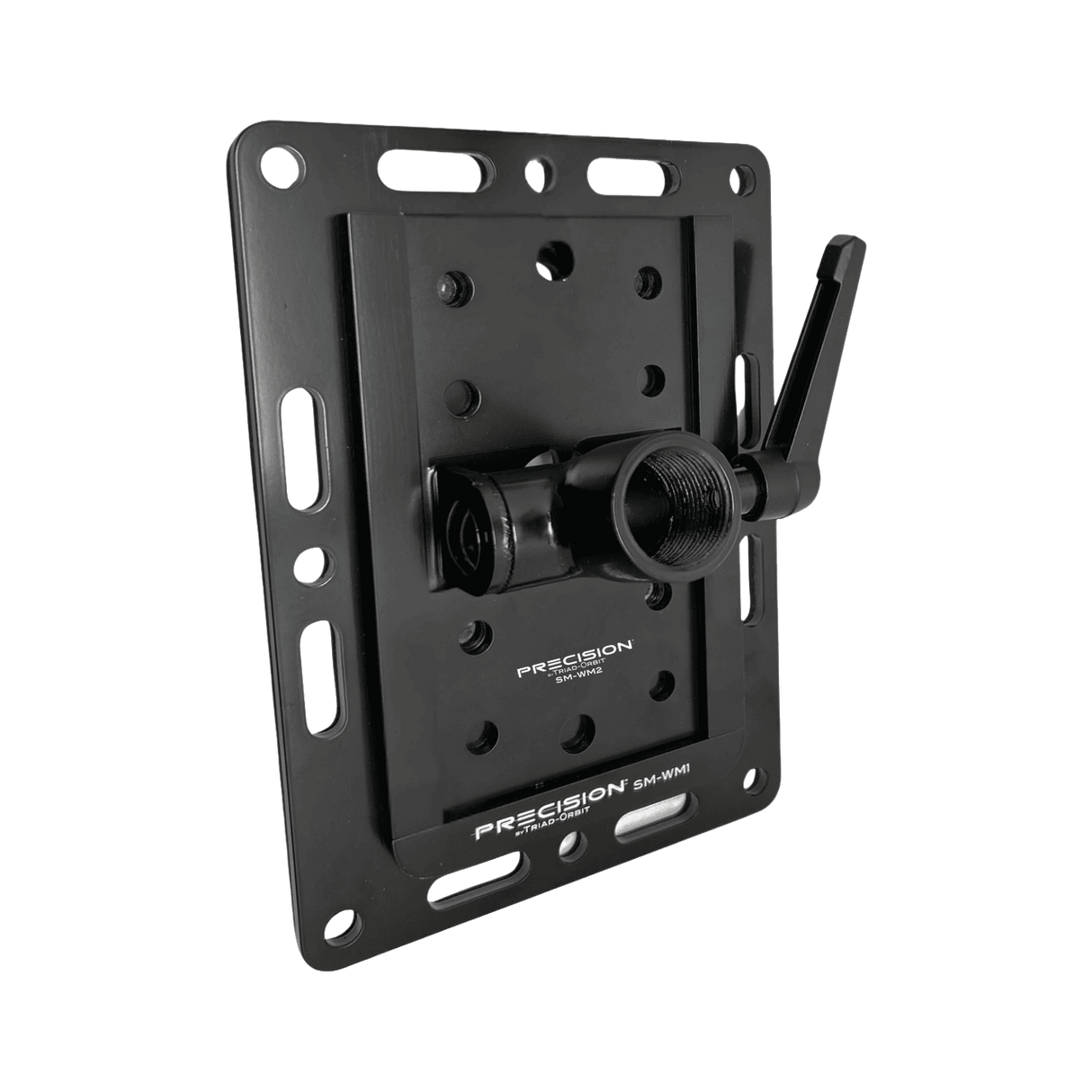

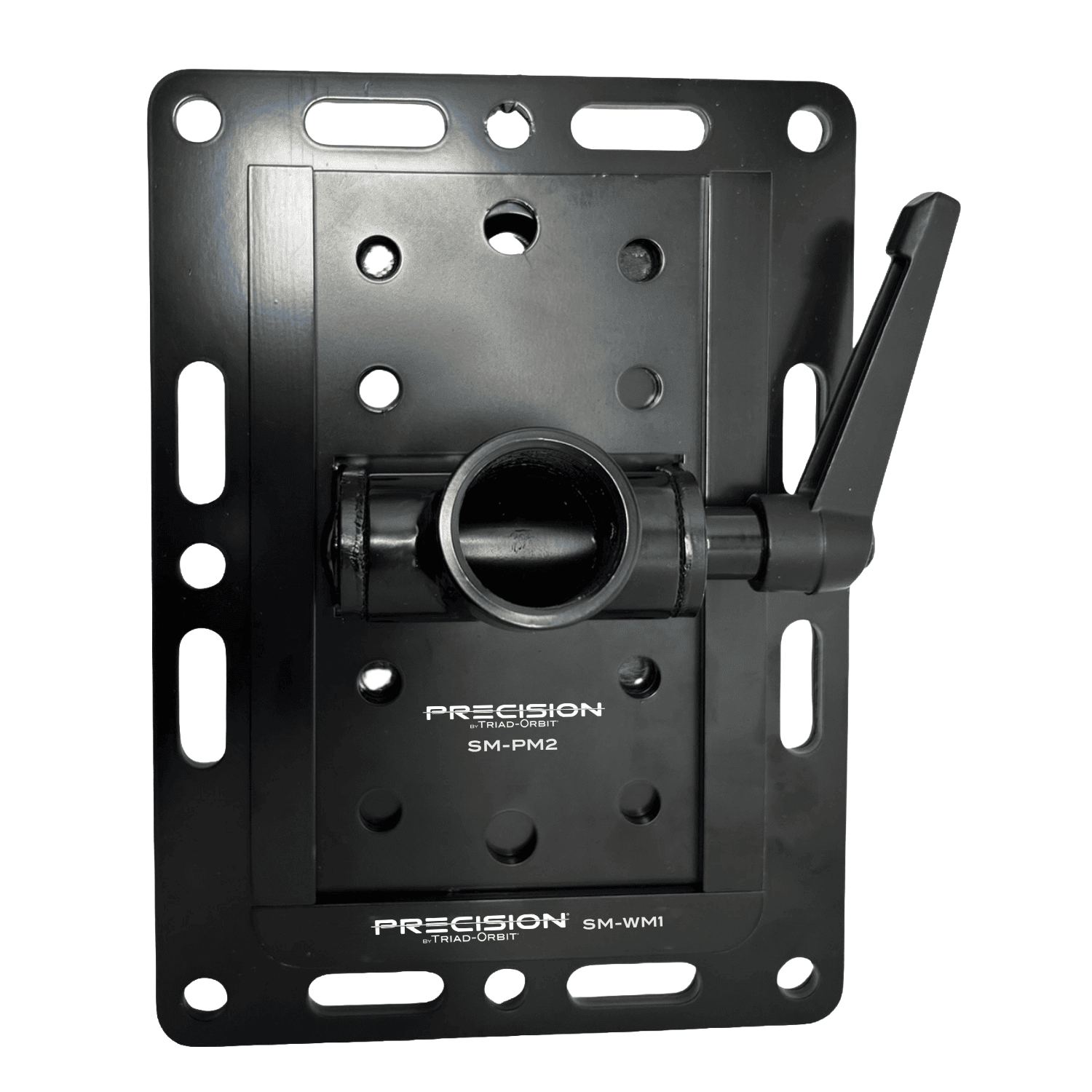

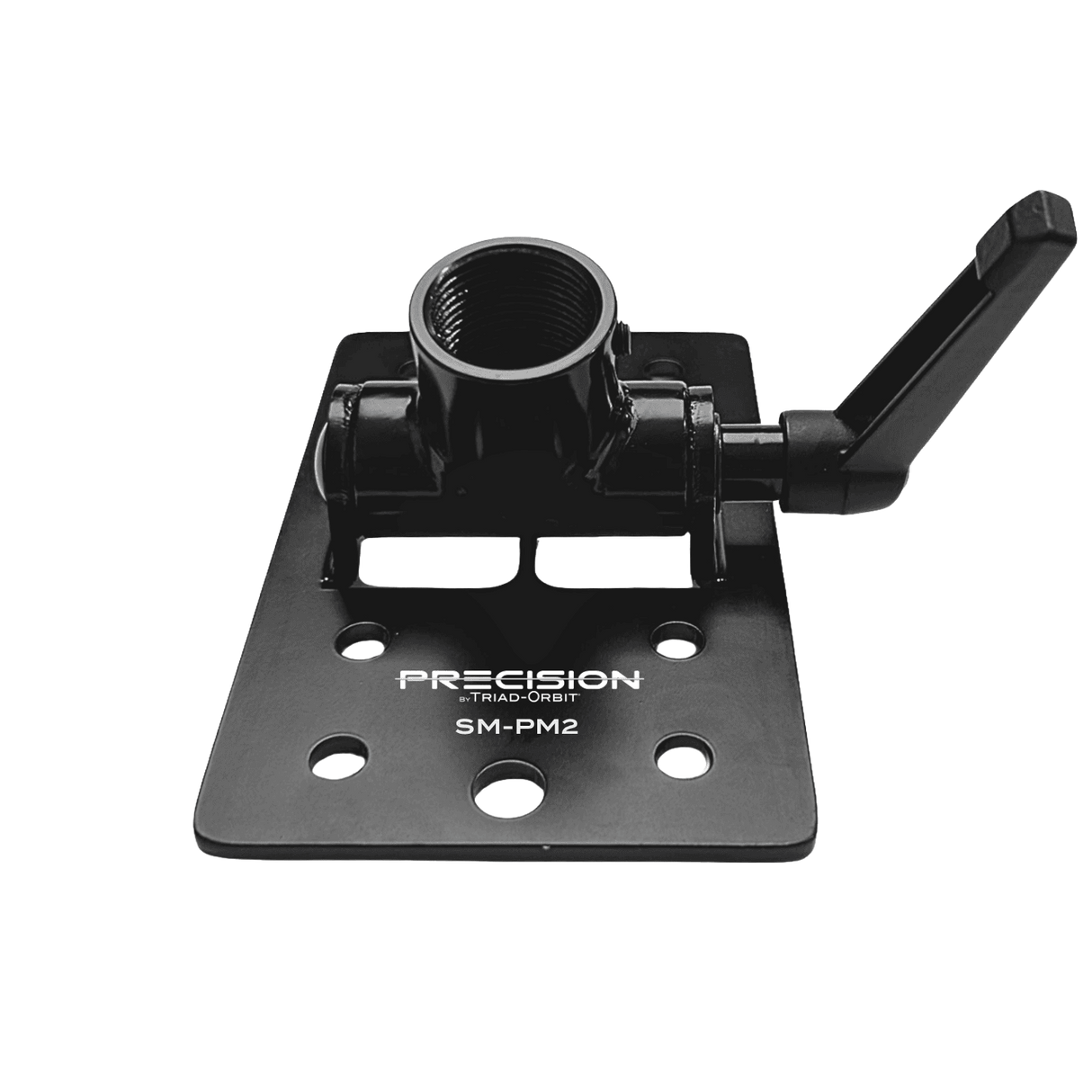

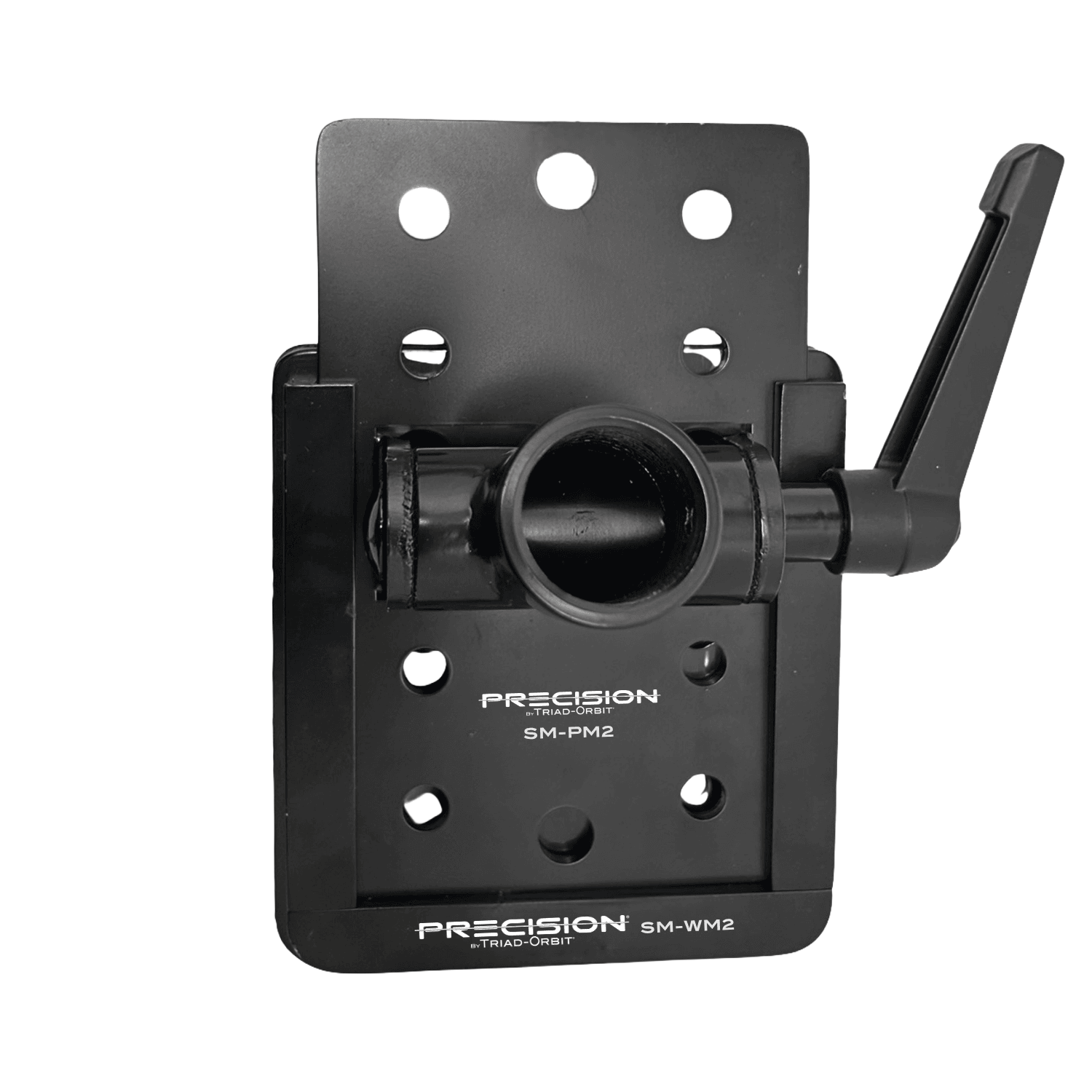

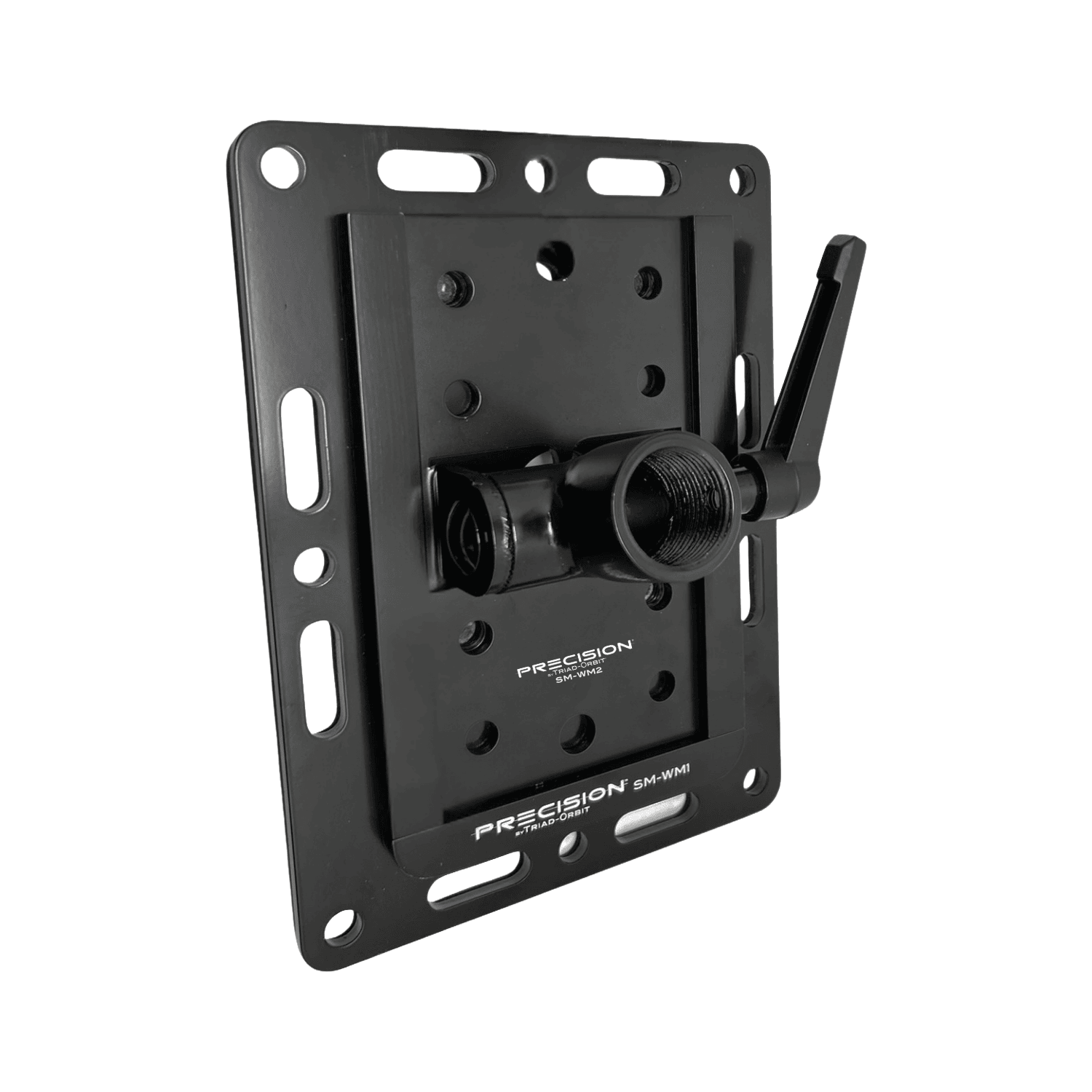

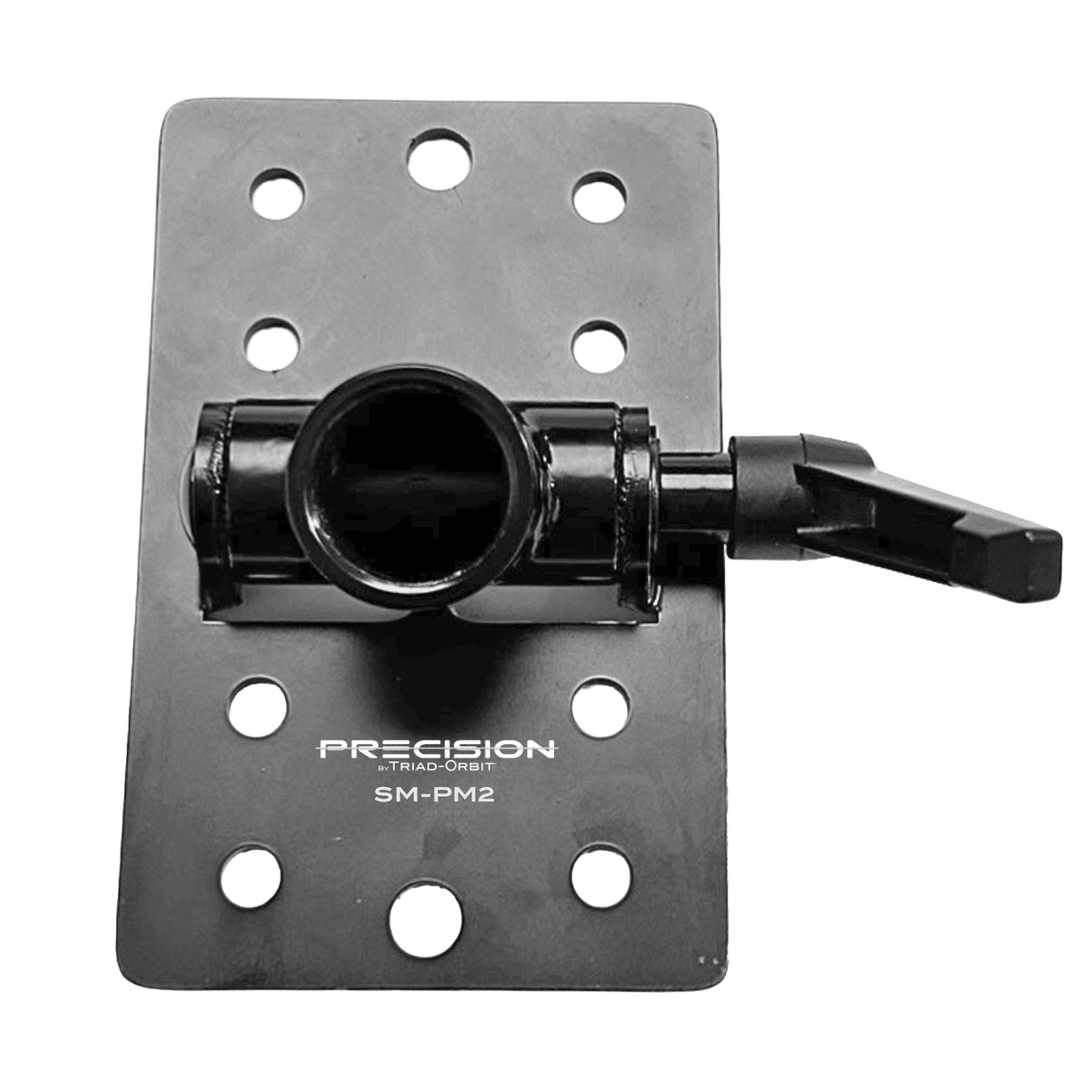

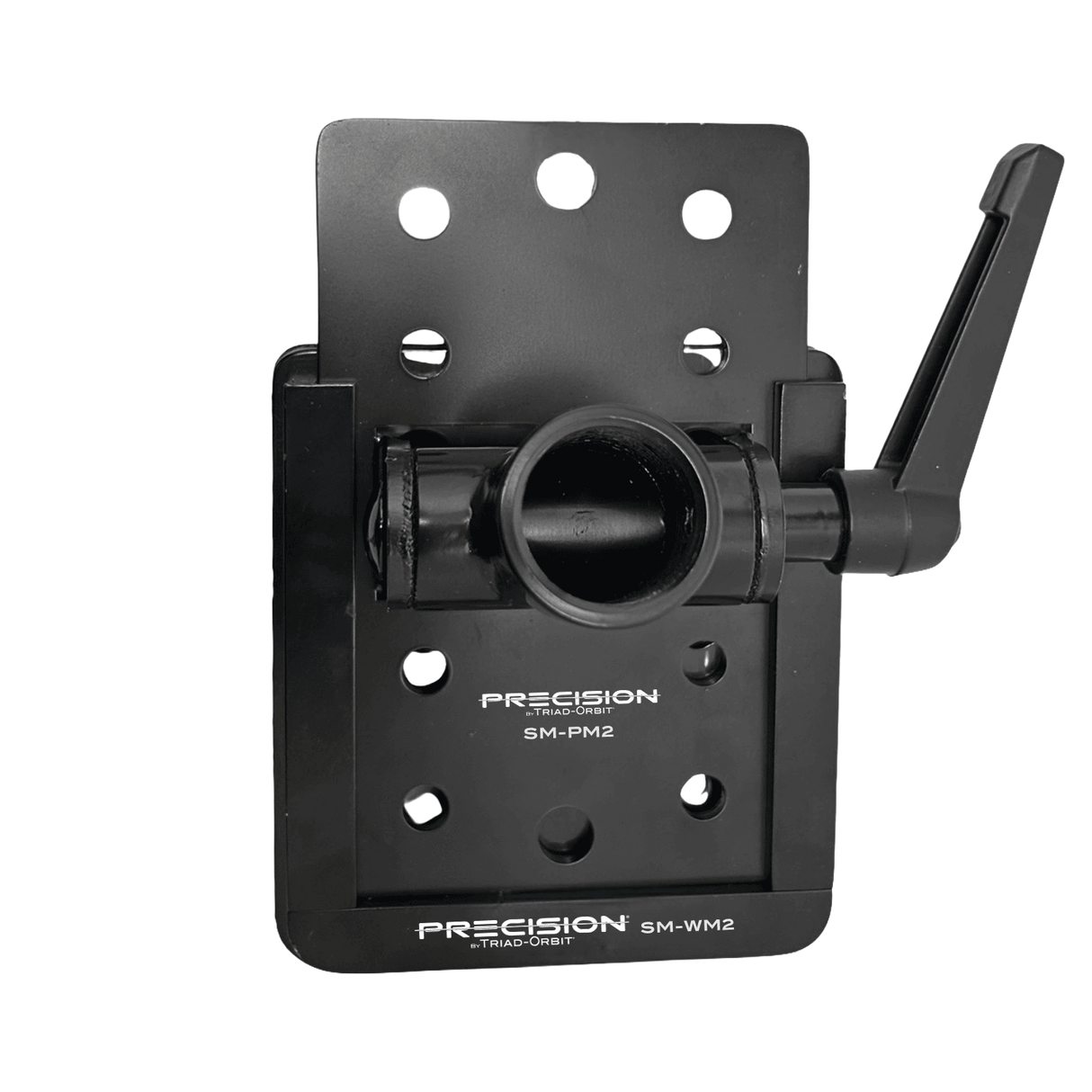

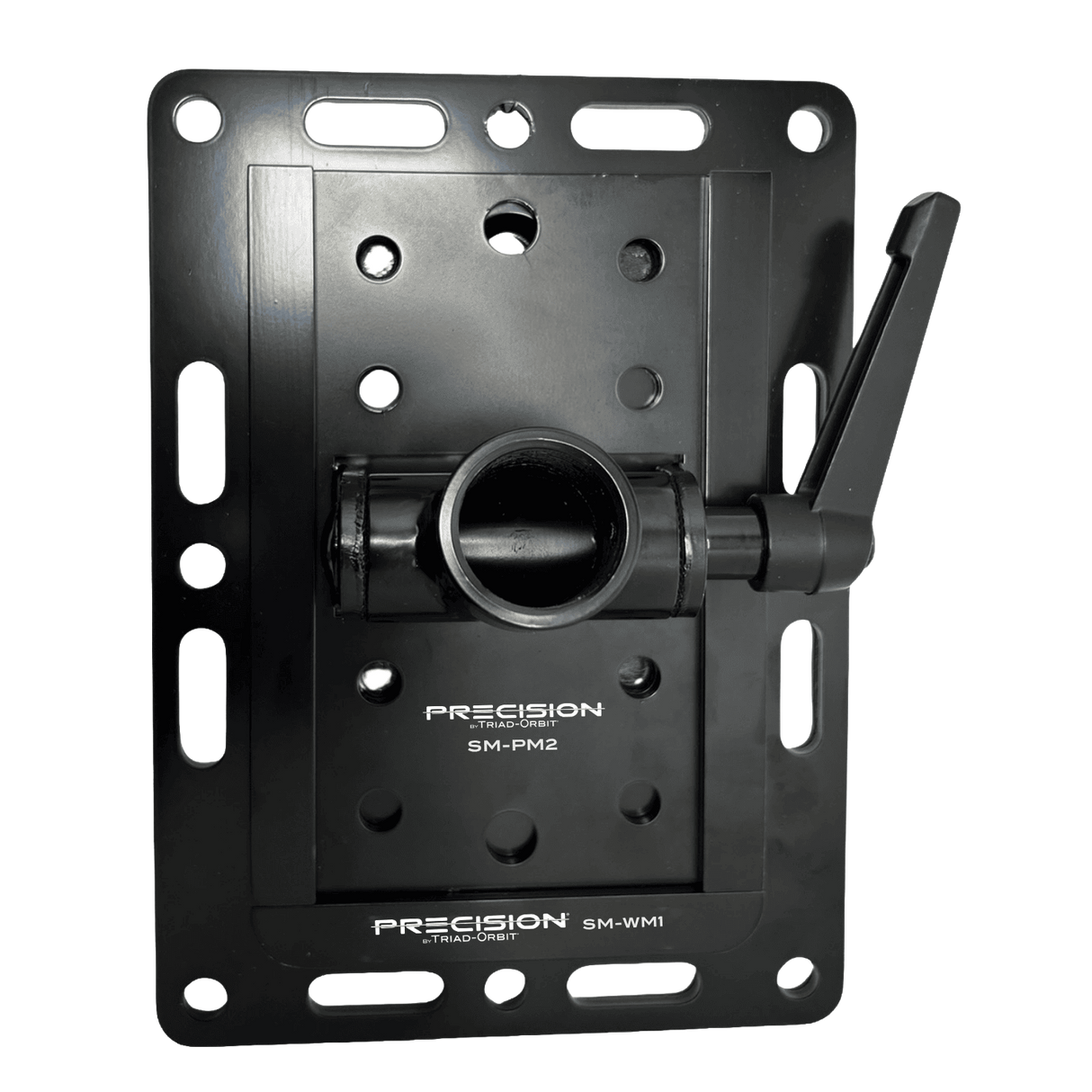

The Precision SM-PM2 is a hinged pipe mount adapter plate designed for suspending speakers from vaulted or sloped ceilings while maintaining proper vertical alignment. Its hinged design compensates for angled ceiling surfaces, providing a true 90-degree vertical drop for a clean, secure, and professional speaker installation.

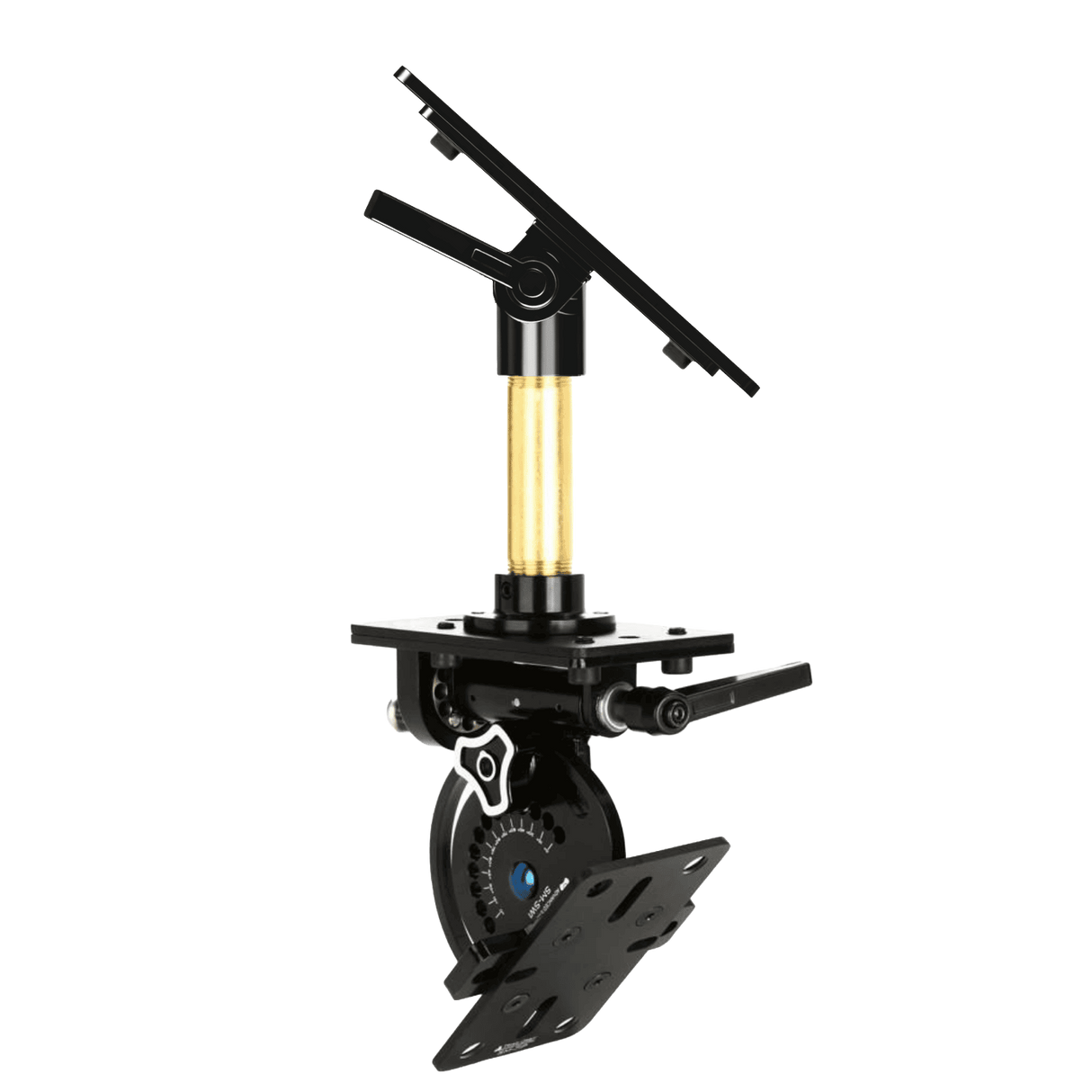

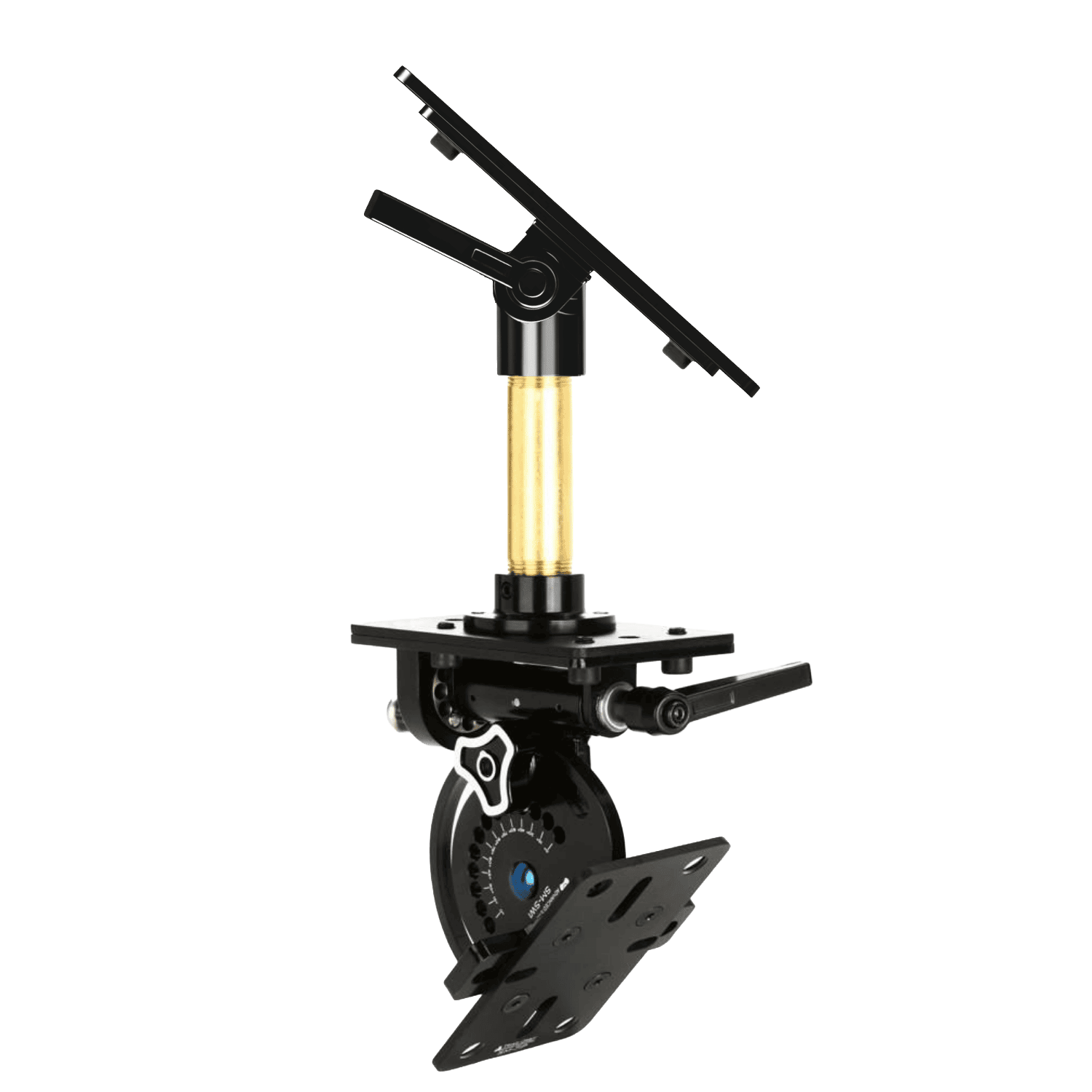

Designed for use with standard 3/4-inch NPS straight pipe threads, the SM-PM2 integrates with the Precision SM-PM1 Pipe Mount Adapter, SM-SW1 Speaker Mounting Swivel, and SM-UM1 Universal Speaker Mount. It offers a practical solution for immersive audio systems, commercial installations, and other environments where accurate speaker positioning is essential, even when ceiling angles present installation challenges.

Specifications

General Specifications
Device Type: Hinged pipe mount adapter plate
Compatibility: Precision SM-PM1 Pipe Mount Adapter, Precision SM-SW1 Speaker Mounting Swivel, Precision SM-UM1 Universal Speaker Mount
Application: Speaker mounting from vaulted and sloped ceilings
Mounting Orientation: Vertical drop from angled ceiling surfaces

Physical Specifications
Overall Dimensions: 86 × 135 × 52.5 mm
Mounting Plate Width: 86 mm
Mounting Plate Height: 135 mm
Projection Depth: 52.5 mm
Pipe Thread Size: 3/4-14 NPS (straight, non-tapered)
Pipe Opening Diameter: 31 mm
Mounting Hole Diameter: 8.2 mm
Center Hole Diameter: 10 mm
Horizontal Mounting Hole Spacing: 49.2 mm
Vertical Mounting Hole Spacing: 79 mm

Installation Features
Ceiling Compatibility: Vaulted ceilings, sloped ceilings
Vertical Alignment: 90° vertical drop from ceiling surface
Compatible Mounting System: Precision SM-PM1 Pipe Mount Adapter
Compatible Speaker Mounts: Precision SM-SW1 Speaker Mounting Swivel, Precision SM-UM1 Universal Speaker Mount
Hinged Design: Supported
