MAMMOTH CABLES

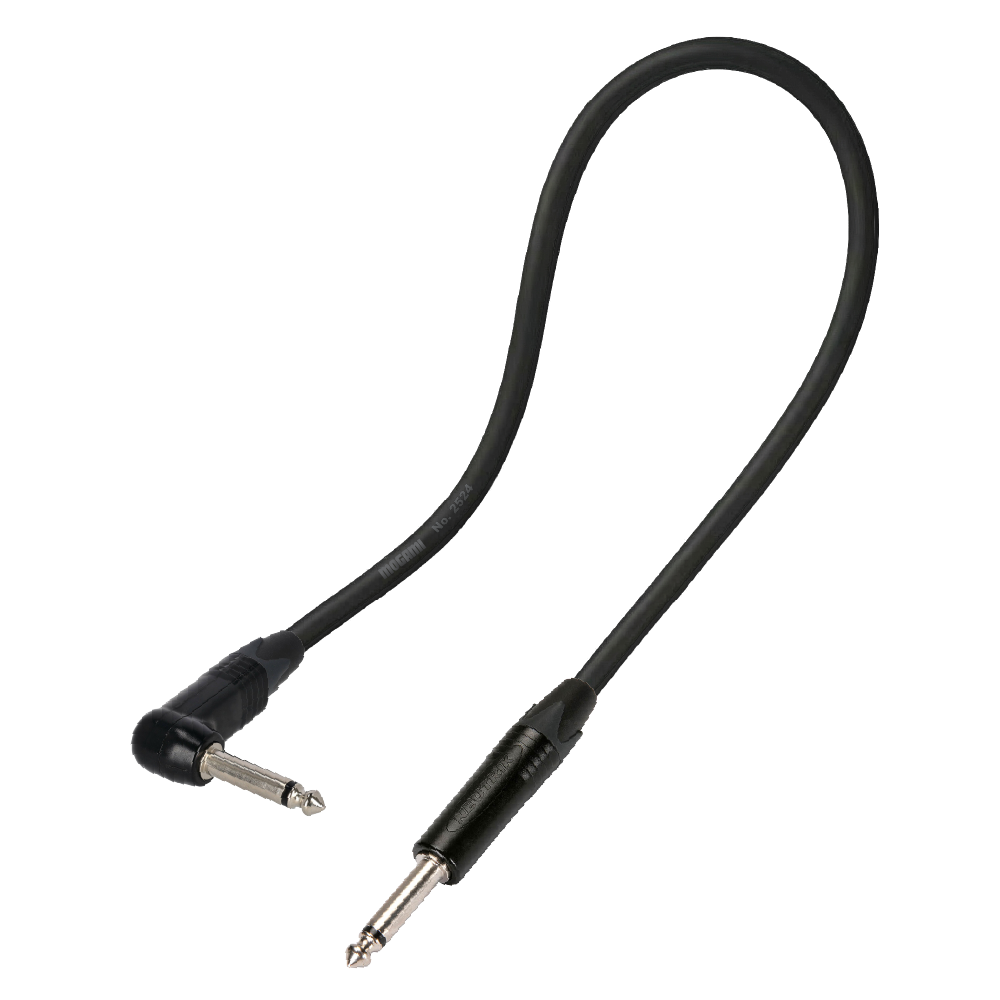

MM2524 TS-TSR 10'

Made with Mogami High Impedance Guitar Cable W2524 and Neutrik 1/4-Inch TS (NP2X-BAG, NP2RX-BAG) Connectors. Length: 10 feet

$69.95 CAD

2 in stock

Request a Quote – For Authorized Dealers Only

Can't find the product you're looking for?

Contact Us

Description

Mogami W2524 Guitar Cable
Designed for high-impedance musical instrument signals, W2524 uses a 20 AWG conductor, served shield, and conductive PVC sub-shield. The conductive layer helps drain voltage generated when the cable is flexed or stepped on, reducing handling noise and microphonics.

NP2X-BAG
A straight 2-pole 1/4-inch professional phone plug with nickel-plated contacts and a black zinc diecast shell. Its slim Plug X Series design features precision-machined one-piece contacts and chuck-type strain relief for dependable cable retention.

NP2RX-BAG
A right-angle 2-pole 1/4-inch professional phone plug with nickel-plated contacts and a black zinc diecast shell. Its all-metal housing provides durability and EMI protection, while precision-machined one-piece contacts and chuck-type strain relief support reliable performance.

Specifications

General Specifications
Brand: Woolly Mammoth Cables
Device Type: Guitar and instrument cable
Cable Length: 10 ft
Mogami Cable Model: W2524
Neutrik Connectors: NP2X-BAG and NP2RX-BAG
Connector Configuration: Straight 1/4-inch TS male to right-angle 1/4-inch TS male

Cable Construction
Conductor Size: 0.565 mm² (20 AWG)
Conductor Construction: 50/0.12A
Insulation Material: Polyethylene
Sub-Shield Material: Conductive PVC
Main Shield: Served shield, approximately 55/0.18A
Jacket Material: PVC
Jacket Colour: Black
Overall Diameter: 6.0 mm (0.236 in)

Electrical Specifications
Inner Conductor DC Resistance at 20°C: 0.033 Ω/m (0.010 Ω/ft)
Shield Conductor DC Resistance at 20°C: 0.014 Ω/m (0.0043 Ω/ft)
Capacitance at 1 kHz, 20°C: 130 pF/m (39.7 pF/ft)
Inductance: 0.2 µH/m (0.061 µH/ft)
Electrostatic Noise: 0.15 mV maximum
Electromagnetic Noise at 10 kHz: 0.07 mV maximum
Microphonics: 0.3 mV maximum
Flex Life: 15,000 cycles
Operating Temperature: -20°C to +60°C

Connector Specifications
Connection Type: 2-pole 1/4-inch phone plugs
Gender: Male
Contact Material: Brass
Contact Plating: 2 µm nickel
Shell Material: Zinc diecast
Shell Plating: Black KTL coating
Wiring: Solder contacts
Cable Outside Diameter Range: 4 to 7 mm
Wire Size: 1 mm² (18 AWG)
Mating Life: More than 1,000 cycles
Rated Voltage: Less than 50 V
Dielectric Strength: 1 kV DC
Initial Insulation Resistance: Greater than 2 GΩ
Connector Operating Temperature: -20°C to +65°C
Standard Compliance: IEC 60603-11 / EIA RS-453

Straight Connector (NP2X-BAG)
Connector Style: Straight
Strain Relief: Polyacetal chuck type
Bushing Material: Polyacetal and polyurethane

Right-Angle Connector (NP2RX-BAG)
Connector Style: Right-angle
Housing: All-metal
Strain Relief: Polyacetal chuck type
Bushing Material: Polyacetal and polyurethane
