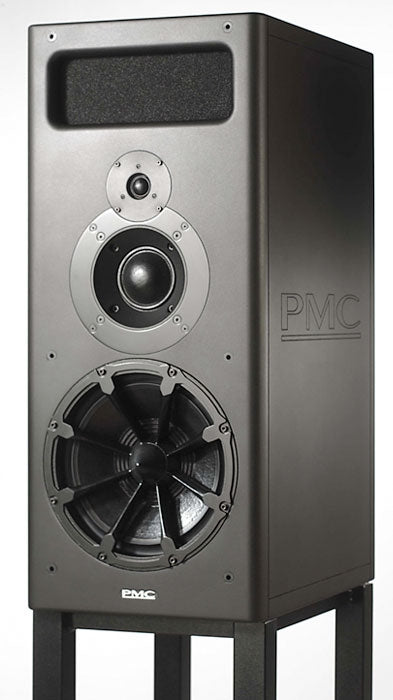

MB2S Passive

The MB2S allows higher SPL's without distortion and loss of definition normally associated with a device of its size. The distinctive MB2S includes the PMC 75 mid driver that has taken the limits of soft dome design and construction to its ultimate conclusion.

The Radial™ low frequency driver allows massive controlled excursions and avoids the effects of power compression, by cooling via its cast alloy exo-skeleton and new rear vented magnet.

As with all PMC models there is matching low profile centre channels (MB2S-C) and subwoofers for use in surround configuration (XB2S).

• Available Finishes: Neo Black

• Crossover Frequency: 380Hz & 3.8kHz

• Dimensions: H 870mm 34.25" W 380mm 14.96" D 535mm 21.06"

• Drive Units: LF 310mm PMC Radial™ driver, MF 75mm PMC fabric dome , HF 27mm fabric soft dome

• Effective ATL™ Length: 3m 10ft

• Impedance: 4 Ohm Nominal

• Input Connectors: 3 Pairs 4mm Sockets (Tri-wire or Tri-Amp)

• Recommended Amp Power: 200-800W

• Sensitivity: 91dB 1W 1m

• Useable Frequency Response: 20Hz-25kHz Peak SPL @ 1M: 124dB

• Weight: 49kg 108lbs
