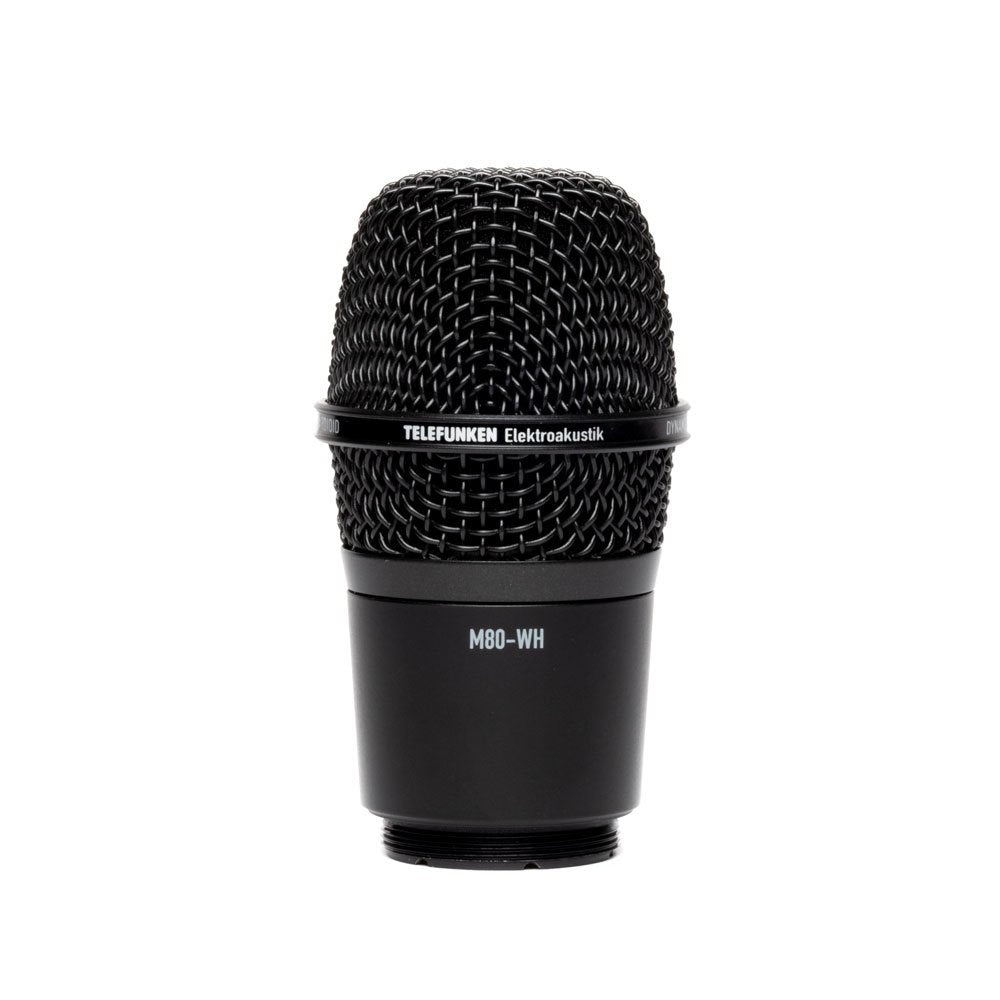

TELEFUNKEN

M80-WHB

$372.00 CAD

Description

The wireless capsule is sonically identical to the M80 standard and M80-SH and has the same condenser like performance, minimal proximity effect, and superior feedback rejection one expects in its sibling products.

The product features the same exact dynamic capsule, head grille, and output transformer all neatly packed within a capsule body that is ready to be mated to your wireless transmitter system of choice.

COMPATIBLE with the following transmitters: Shure: . Axient . UHF-R . QLXD . ULXD . ULX . PG . PGX

Lectrosonics: . HH . HHa

Sony: . UTX-M03

NOT COMPATIBLE with the following transmitters: Shure: . BLX . GLXD . PGXD

The TELEFUNKEN Elektroakustik M80 Dynamic microphone has rapidly become a new standard for live performance and stage use. The microphone features a low-mass capsule built with a super thin Mylar membrane that is coupled with our propriety step-up transformer to give superior clarity and extended high frequency response (which in many ways is similar to what one might expect from a condenser microphone), in a rugged design meant for daily abuse in touring applications.

Features

Same detailed, condenser-like performance as the wired M80

Prestine audio quality with a wide frequency response and high SPL handling

Supercardioid polar pattern provides excellent feedback rejection

Low mass diaphragm reduces proximity effect

Custom-wound impedance-matching audio transformer

Mates with many industry-standard wireless transmitters

Designed and hand assembled in the USA

Specifications

Color : Black body and grid.

Type : Dynamic Moving Coil

Capsule : 25mm

Frequency Range : 30Hz / 18kHz

Polar Pattern : Super-cardiod

Sensitivity : 1.4mV/Pa

Output Impedance : 300 ohms

Maximum SPL : > 140dB

Non Linear Distortion : Less than or equal to 0.5% at 100 dyne / cm sq

Self Noise :

Tube Type : 6072a General Electric JAN twin triode

Power Type :

Size : 3.33" (85mm) length x 2.5" (63mm) diameter

Weight : 6oz (168g)

Supplied Accessories : Cardboard carrying case
