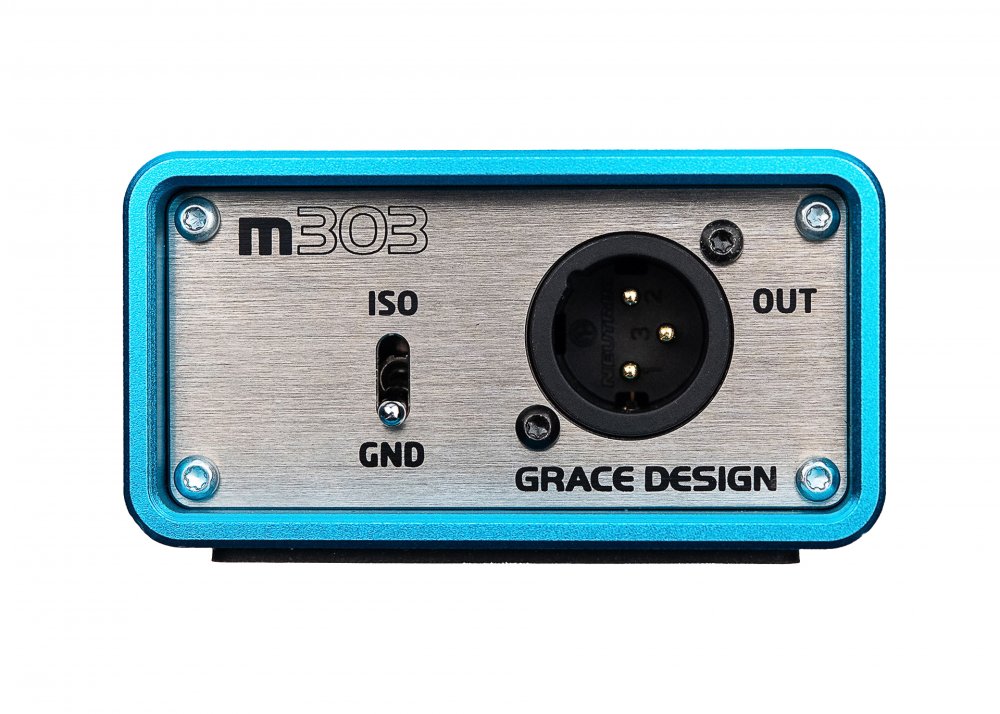

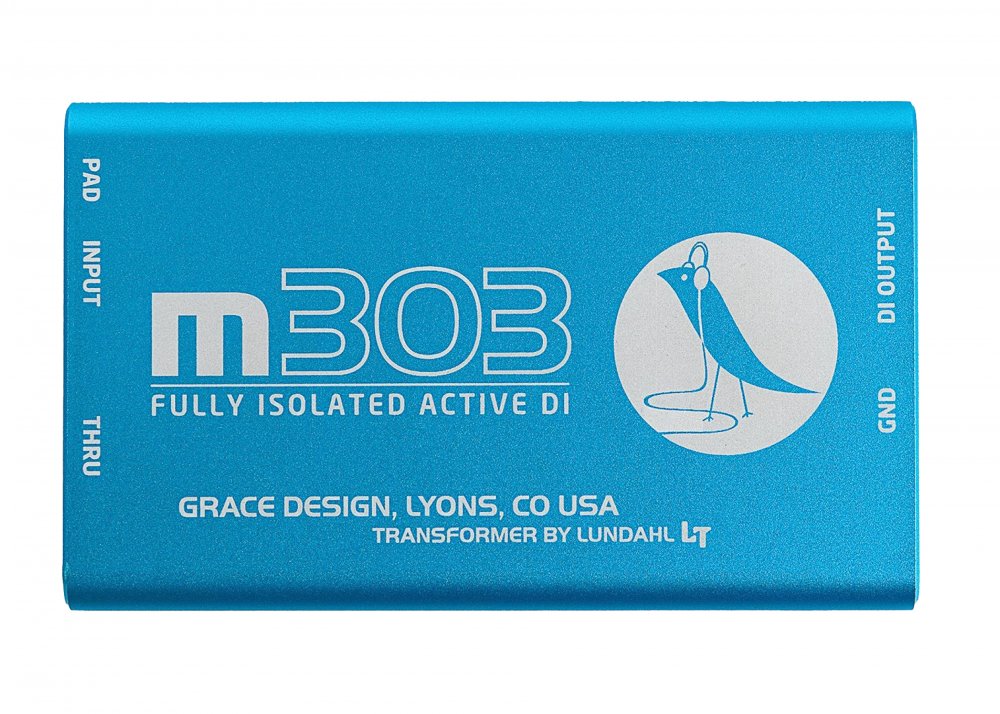

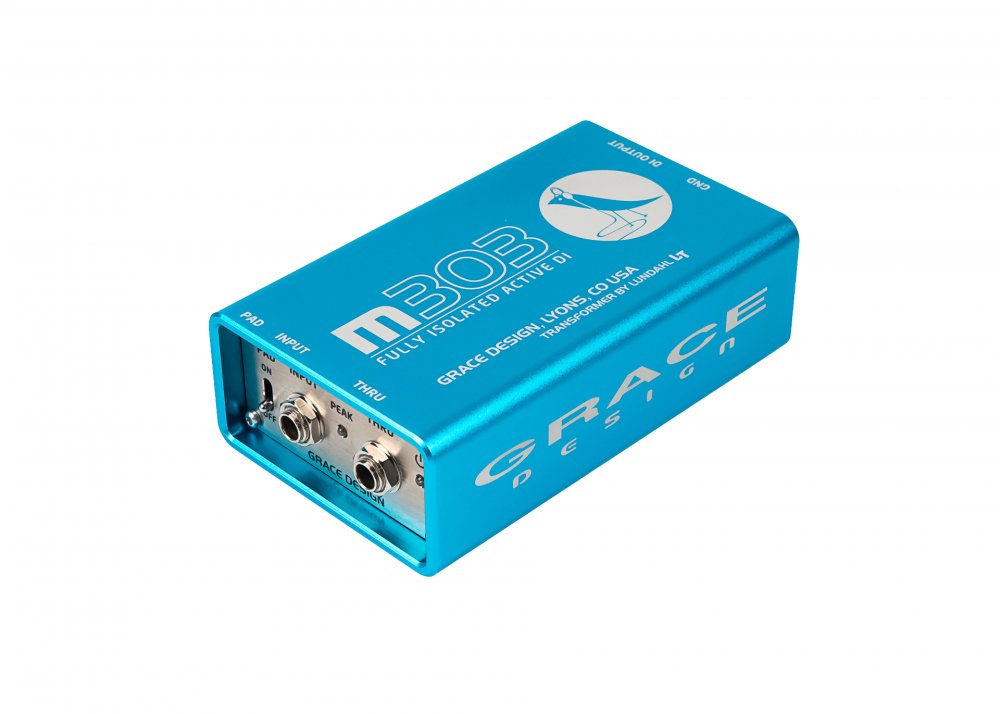

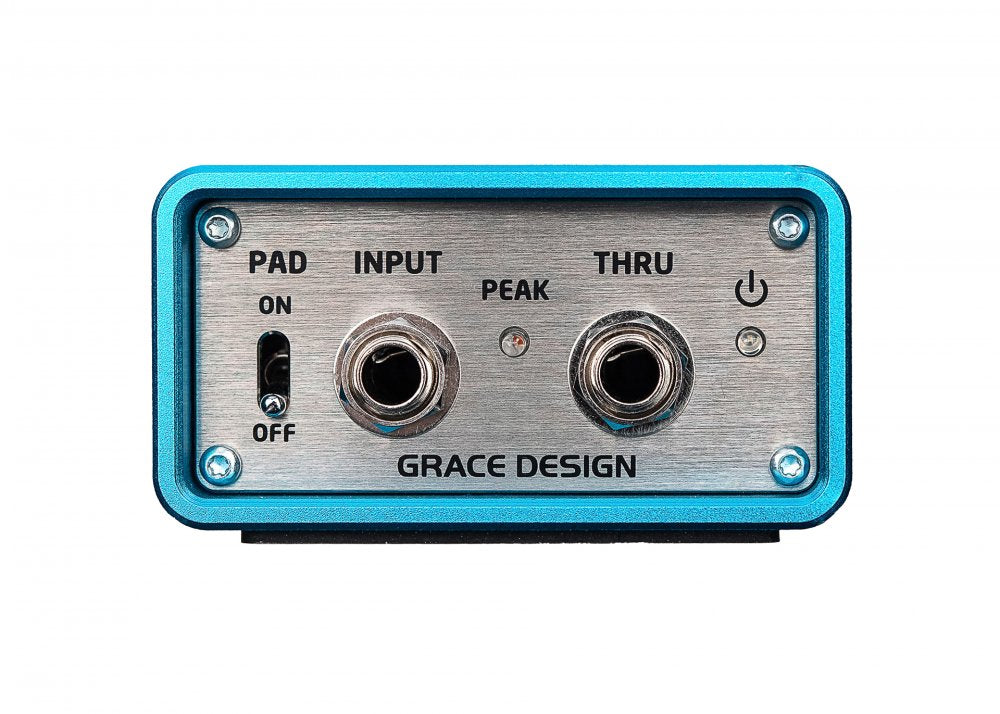

m303

The Grace Design m303 is a premium active direct box (DI) built for both live stage and studio use, offering exceptional audio clarity and performance. Its standout feature is a custom-wound Lundahl transformer that ensures superb low-end clarity and high-frequency detail, delivering a pristine, natural sound. The m303 is designed with full galvanic isolation, meaning it effectively eliminates any unwanted noise or interference, making it perfect for critical audio applications. Housed in a robust extruded aluminum chassis, this DI box is built to withstand the rigors of professional use, while its sleek design enhances its visual appeal.

Key features include ultra-low distortion and noise, wide dynamic range, and a 1M Ohm input impedance, making it compatible with a wide variety of line or pickup sources. The m303 is powered via phantom power and includes a peak indicator LED to alert users when the signal is approaching clipping. Its efficient design draws minimal power and offers excellent protection against electrostatic discharge (ESD) and radio frequency interference (RFI), ensuring consistent performance in any environment. Trusted for its transparent and musical audio quality, the m303 is a top choice for professionals seeking durability and high-fidelity sound.

• Phantom-powered DI with full galvanic isolation and Lundahl transformer

• Ultra-low distortion

• Wide bandwidth

• 1M Ohm input impedance for line or pickup signals

• Peak and power indicator LEDs

• 13dB input pad for high-level signals

• ESD and RFI protection

• Rugged aluminum chassis with recessed connectors

• Low power consumption

GENERAL SPECIFICATIONS:

• Active, phantom-powered direct box (DI) with full galvanic isolation

• Custom-wound Lundahl transformer with high nickel core, magnetically shielded

• Ultra-low distortion: below -100dB at 1kHz, below -80dB at 50Hz

• Ultra-low noise: -118dBu (A weighting)

• Ultra-wide bandwidth: 20Hz - 80kHz

• Dynamic range: 124dB

• Input impedance: 1M Ohm (suitable for line or pickup signals)

• Peak indicator LED (3dB before clipping)

• Power indicator LED

• Phantom power consumption: 4mA

• Input pad: 13dB for high-level signals

• Fully protected against electrostatic discharge (ESD) and radio frequency interference (RFI)

• Rugged ¬º" extruded aluminum chassis with recessed connectors

• High-quality gold contact toggle switches

PERFORMANCE:

• Low frequency headroom: THD+N @ 50Hz < -80dB (0.007%)

• Transparent, musical audio performance

• Deep, rock-solid bass response

PHYSICAL SPECIFICATIONS:

• Durable design for reliability

• Made in the USA

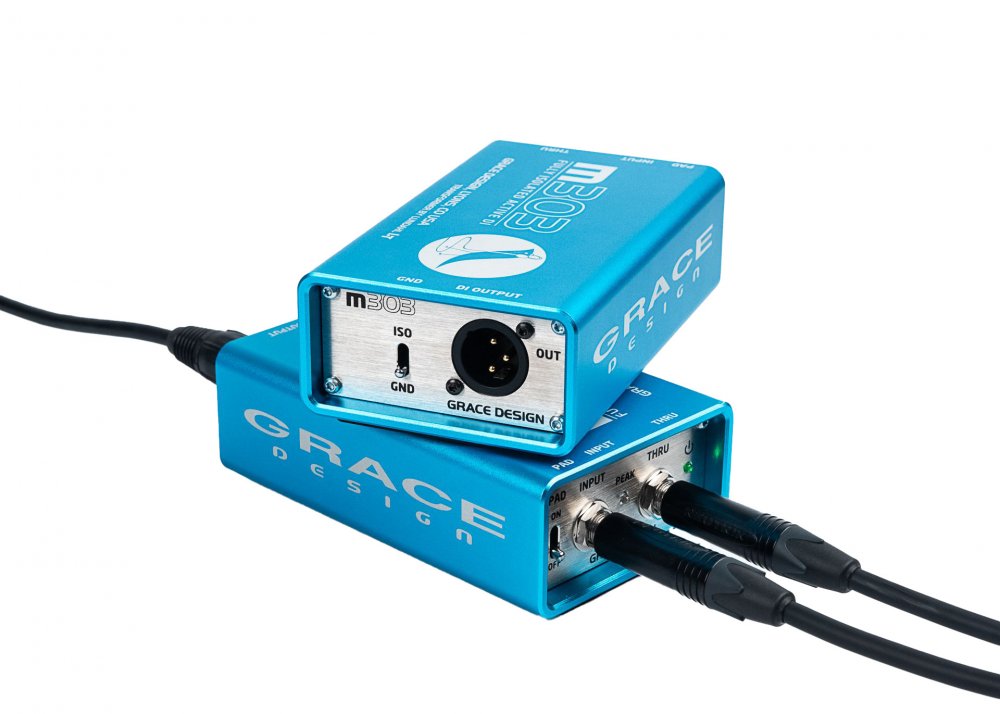

Image shows multiple for display only. Sold as 1 unit.
