MOGAMI

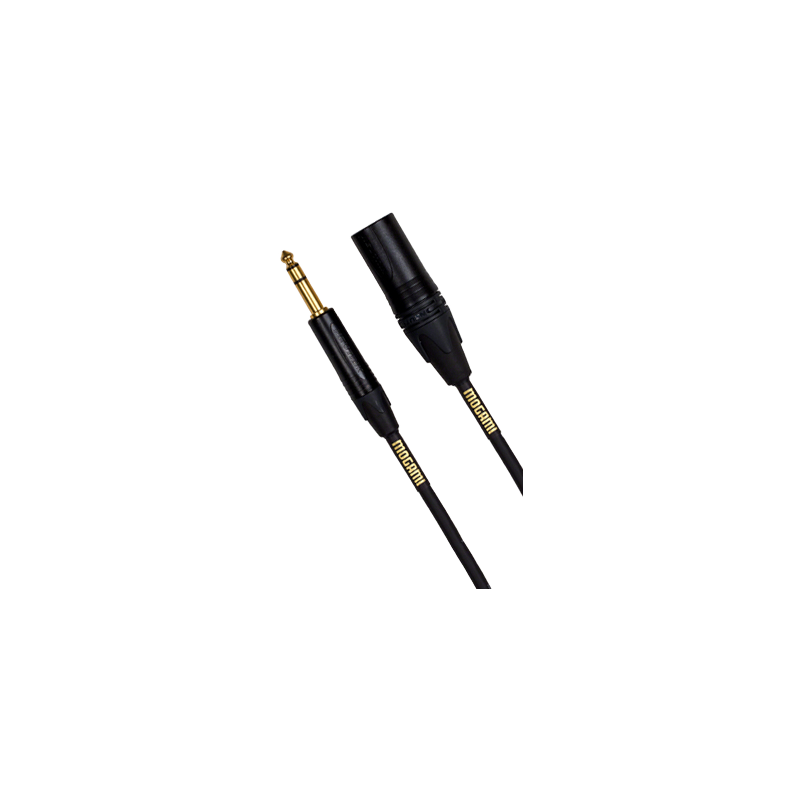

Gold TRS - XLRM 30'

30 Feet - TRS to Male XLR patch cable. Gold plated TRS & XLR pins. Made with Mogami 2534 Quad cable.

$215.95 CAD
Request a Quote – For Authorized Dealers Only

Can't find the product you're looking for?

Contact Us

Description

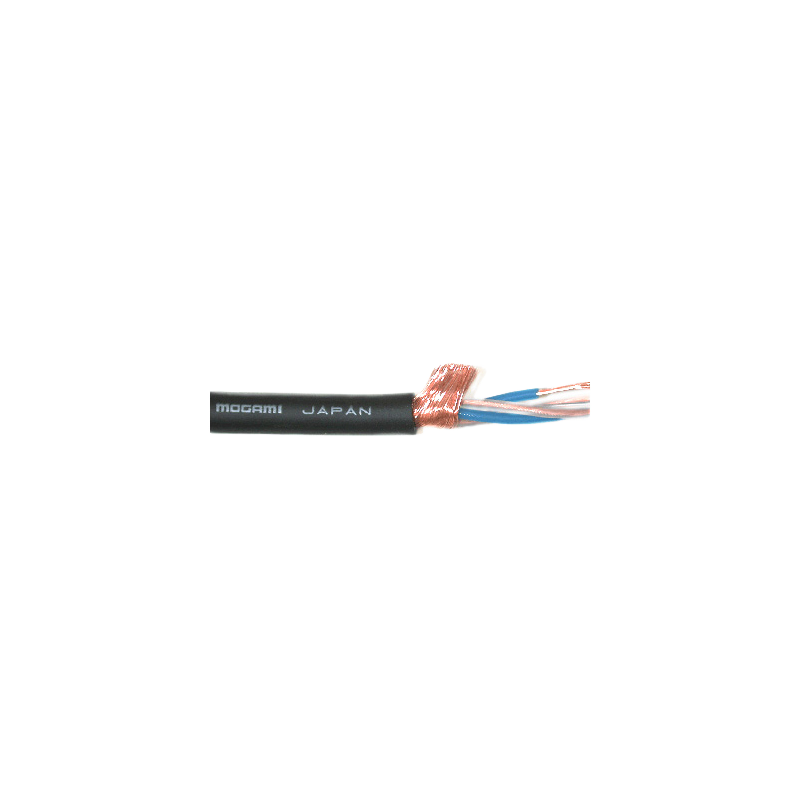

This balanced patch cable with gold-pin/black body ¼" TRS and male XLR connectors is a popular choice for powered speakers. Mogami Gold TRS-XLRM uses Neglex™ Studio Quad cabling, legendary for clarity and freedom from noise/RF interference. Neglex™ type Quad cables are designed for the highest quality recording applications where maximum definition is critical.

Specifications

General Specifications
Cable Type: Quad-conductor audio patch cable
Cable Length: 30 ft
Connector 1: TRS
Connector 2: Male XLR
Number of Conductors: 4

Conductor Specifications
Conductor Material: Oxygen-free copper
Conductor Construction: 20/0.12
Conductor Size: 0.226 mm²
Wire Gauge: 24 AWG
Conductor Insulation: XLPE
Insulation Diameter: 1.6 mm
Insulation Colors: Blue and clear

Shield and Jacket
Shield Type: Served spiral bare copper
Shield Construction: Approximately 64/0.18A
Jacket Material: Flexible PVC
Jacket Diameter: 6.0 mm

Electrical Characteristics
Inner Conductor DC Resistance at 20°C: 0.083 Ω/m
Shield DC Resistance at 20°C: 0.012 Ω/m
Balanced Conductor-to-Conductor Capacitance: 97 pF/m at 1 kHz and 20°C
Balanced Conductor-to-Shield Capacitance: 110 pF/m at 1 kHz and 20°C
Inductance Between Conductors: 0.4 µH/m at 1 kHz and 20°C
Electrostatic Noise: 50 mV maximum
Electromagnetic Noise: 0.15 mV maximum
Voltage Breakdown: DC 500 V for 15 seconds
Insulation Resistance: 100,000 MΩ × m minimum at DC 125 V and 20°C

Mechanical Characteristics
Flex Life: 11,000 cycles
Tensile Strength: 686 N
Applicable Temperature: -20°C to +70°C
