MOGAMI

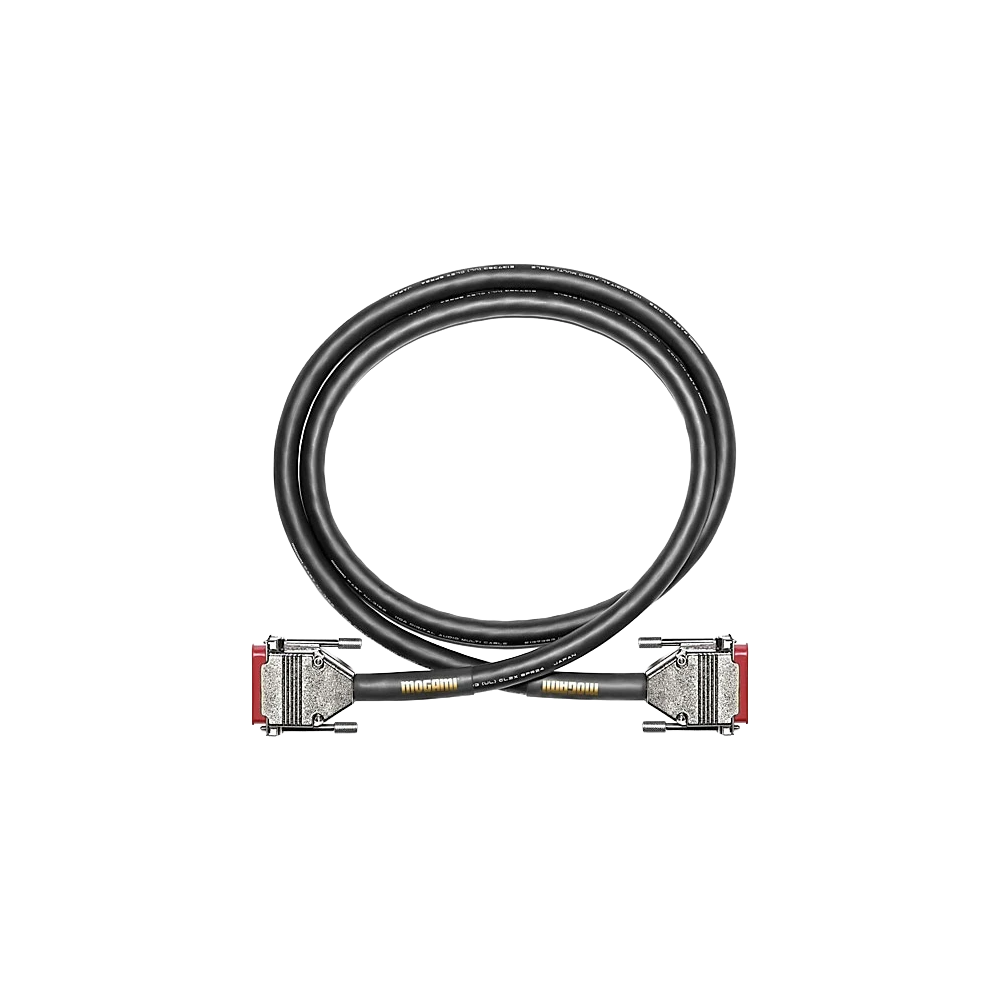

Gold AES YTD DB25 - DB25 10'

10 Feet - 8 channels of AES digital in and out, gold contact DB25 to DB25. Made to connect your Apogee, Mackie, Yamaha AES in/out to a Digi or Tascam pinout machine.

$478.00 CAD
Request a Quote – For Authorized Dealers Only

Can't find the product you're looking for?

Contact Us

Description

Made with Mogami 3162 AES digital cable. Like the world standard MOGAMI multicore microphone "Snake" cable, very flexible and compact design makes these multicore 110 AES/EBU DIGITAL AUDIO cables easy for wiring, installation and handling.

Specifications

General Specifications
Cable Type: AES/EBU format crossover cable
Cable Length: 10 ft
Digital Audio Channels: 8
Input and Output Support: AES/EBU I/O
Nominal Impedance: 110 Ω

Connection Specifications
Connector A: Male DB-25
Connector B: Male DB-25
Wiring Configuration: DB-25 format crossover
Contact Plating: Gold

Cable Construction
Core Count: 8
Conductors per Core: 2
Dielectric Type: Precision dielectric
Shield Type: Spiral shield
Jacket Material: Flexible PVC
