PULTEC

EQP-1A

$6,295.00 CAD
Request a Quote – For Authorized Dealers Only

Description

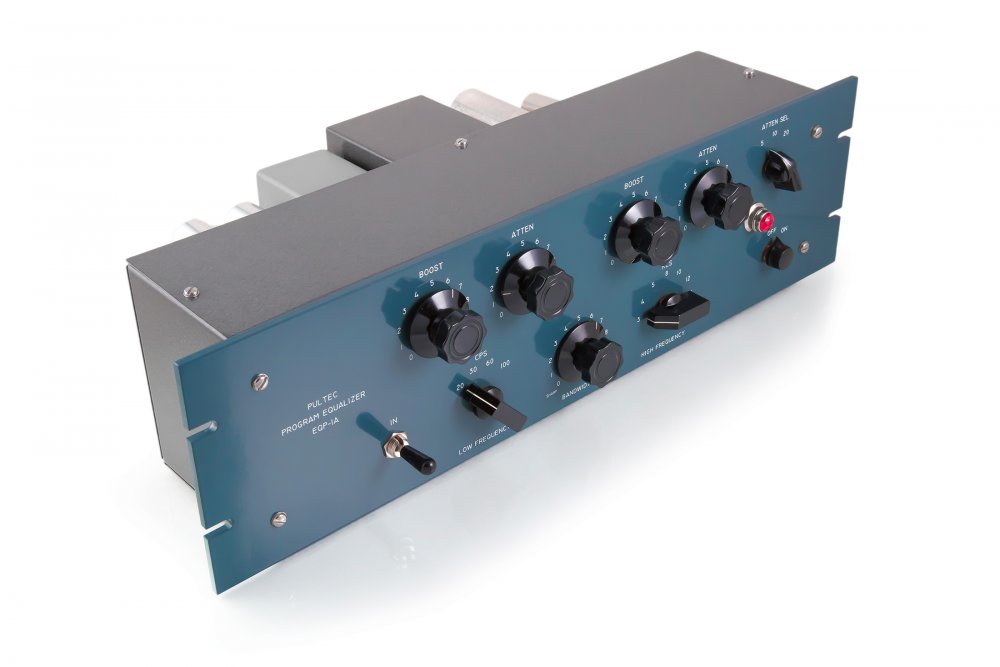

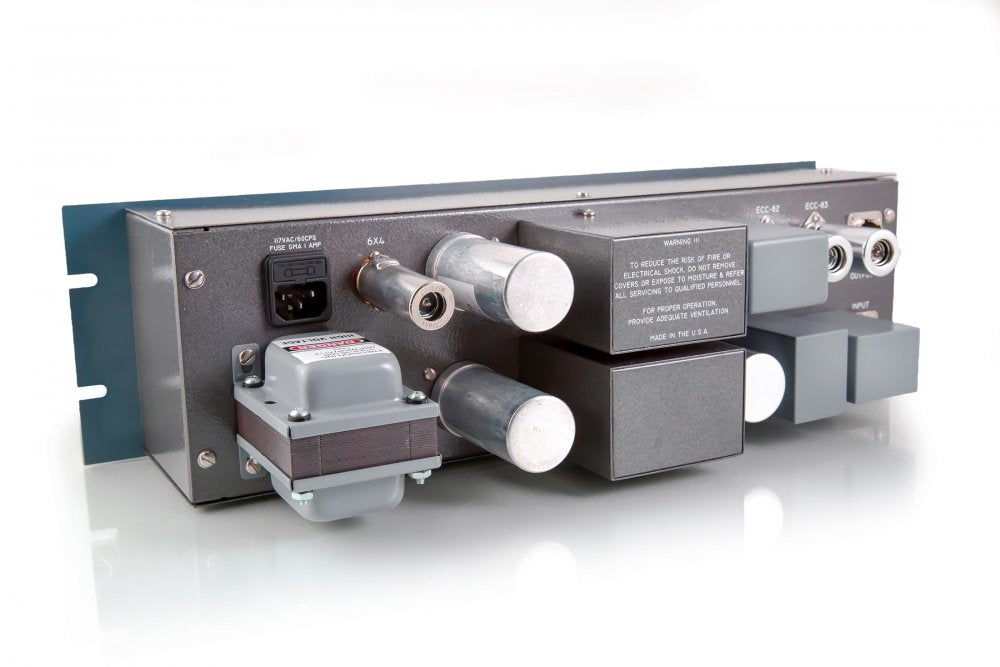

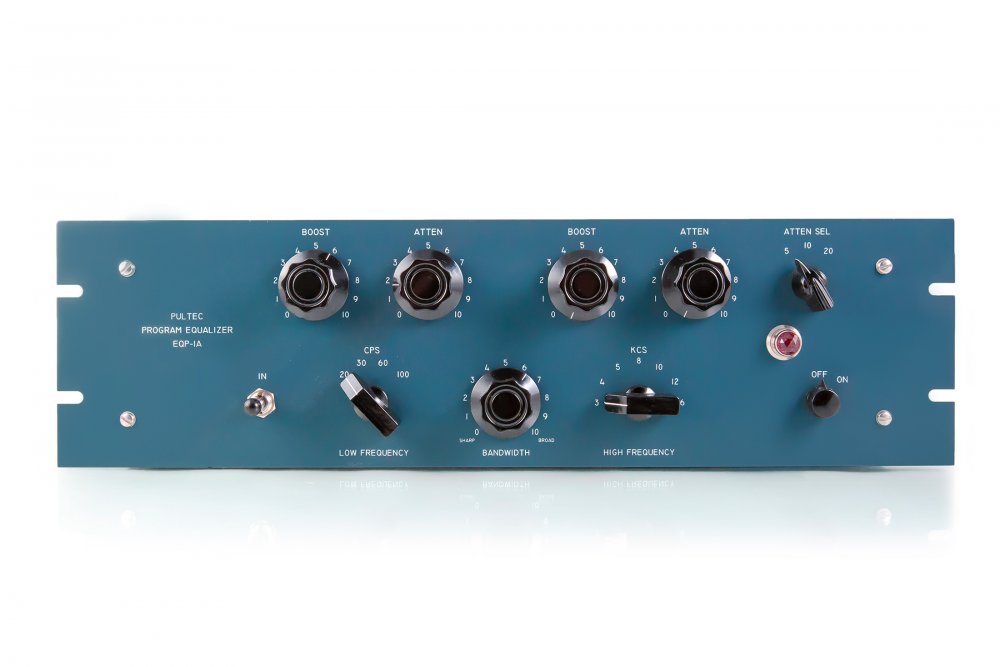

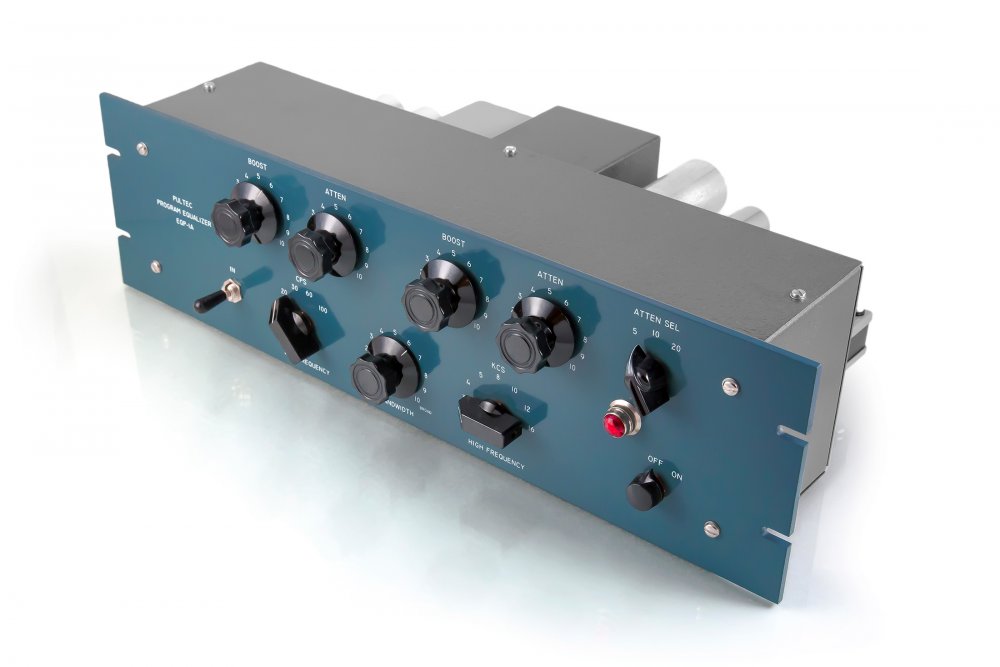

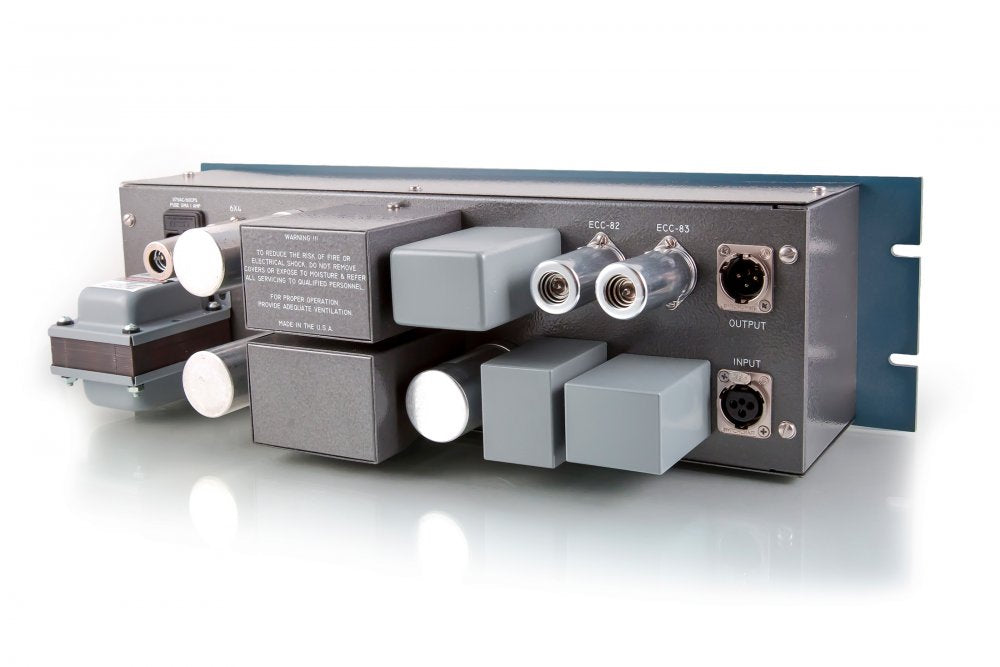

Bringing "the Pultec" back into production, the 3U original from the1950s aesthetic use the exact same components and have the same specs, they finally brought the EQP-1A back into production. We think this is pretty awesome products. The boost and attenuation of the same frequency let you create sounds that only Pultec can archieve.

Specifications

20, 30, 60, 100 CPS (Hz) shelf boost, 0 - 13.5 dB

20, 30, 60, 100 CPS shelf attenuate, 0 - 17.5 dB

3, 4, 5, 8, 10, 12, 16 KCS (kHz) peak boost, 0 - 18 dB

5, 10, 20 kcs shelf attenuate, 0 - 16 dB

Input Transformer: 600 Ohms Output Transformer: 600 Ohms

Noise: 92 dB below +10 dBm Distortion: 0.15% at +10 dBm into 600 Ohms

Amplifier: Flat, 20 cps to 20 kcs, +/- 0.5 dB Tubes: 1 ea 12AU7, 12AX7, 6X4
