TELEFUNKEN

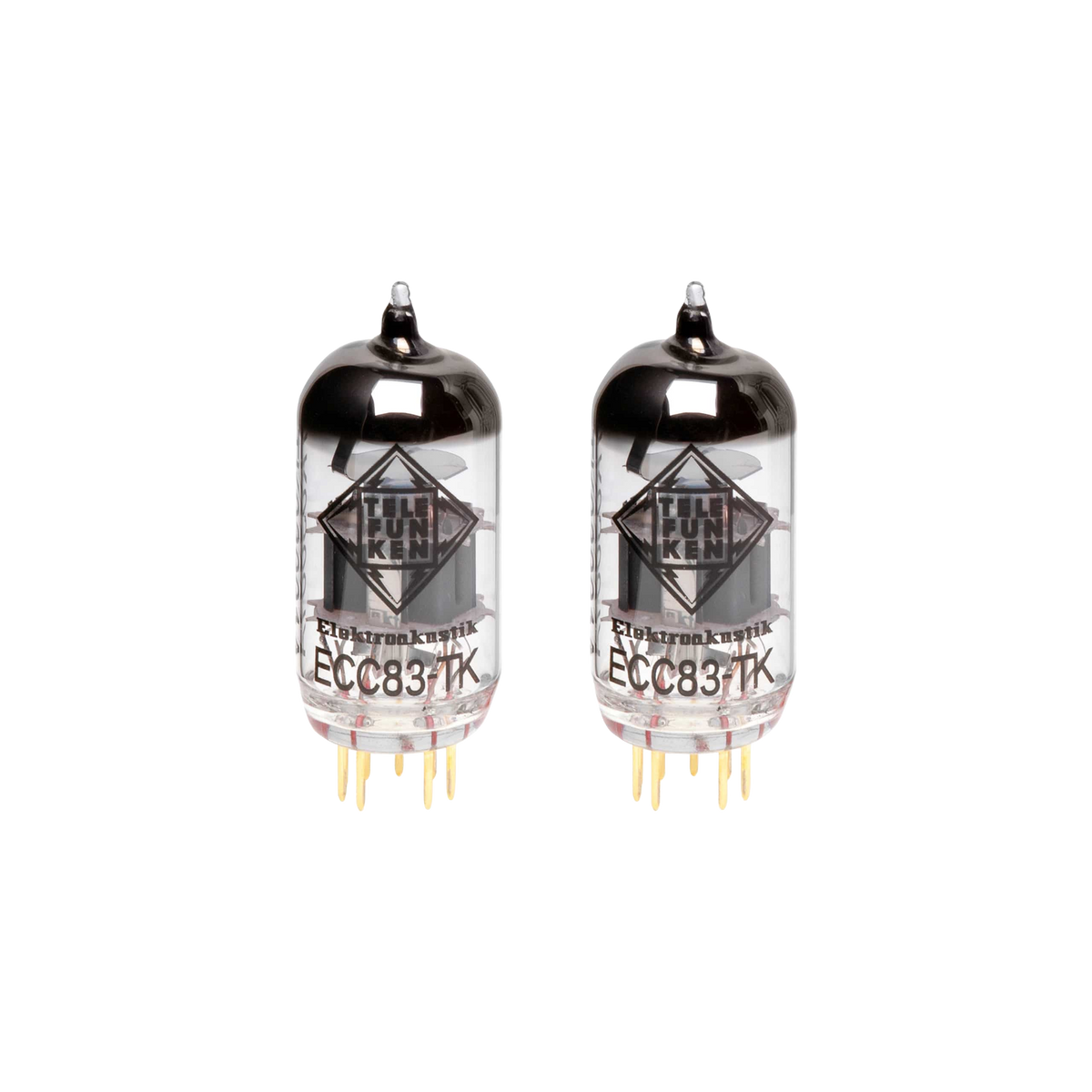

ECC83-TK Vacuum Tube, Matched Pair, Balanced Triodes

Dual-triode preamp vacuum tube pair, matched performance, balanced triodes, high gain, low noise, cryogenic treatment

$266.00 CAD

Can't find the product you're looking for?

Description

This matched pair of ECC83/12AX7 dual-triode vacuum tubes is designed for musicians, audio engineers, and hi-fi enthusiasts using compatible input and inter-stage amplification equipment. High-gain, low-noise performance supports guitar amplifiers, effects, compressors, microphones, and other tube audio devices.

Balanced triodes promote consistent response within each tube, while pair matching supports uniform performance across both tubes. Cryogenic treatment, extensive burn-in, and testing for gain, transconductance, noise, and microphonics provide added stability, with defined lows, a rich midrange, smooth highs, and clean headroom before overdrive.

Specifications

General Specifications
Product Type: Preamp vacuum tubes
Tube Type: ECC83 / 12AX7
Configuration: Matched pair
Internal Structure: Dual triode
Triode Selection: Balanced
Base: Noval
Pin Count: 9

Heater Requirements
Parallel Heater Voltage: 6.3 V
Parallel Heater Current: 300 mA
Series Heater Voltage: 12.6 V
Series Heater Current: 150 mA

Typical Electrical Characteristics
Amplification Factor: 100
Plate Voltage: 250 V
Grid Voltage: -2 V
Plate Current: 1.2 mA
Transconductance: 1.6 mA/V
Internal Plate Resistance: 62.5 kΩ

Processing and Testing
Treatment: Cryogenic
Stabilization: Extended burn-in
Test Parameters: Gain, transconductance, noise, microphonics
