TELEFUNKEN

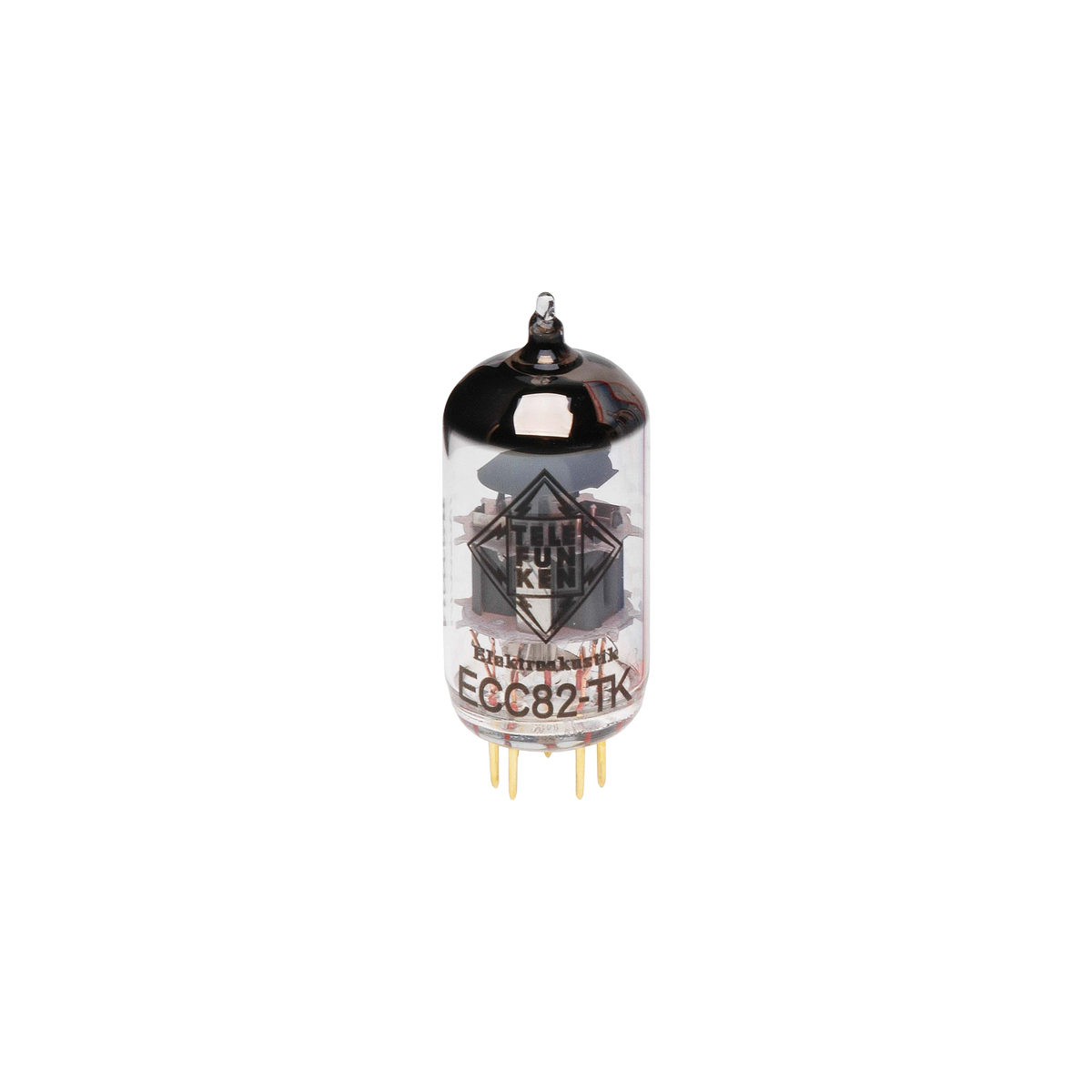

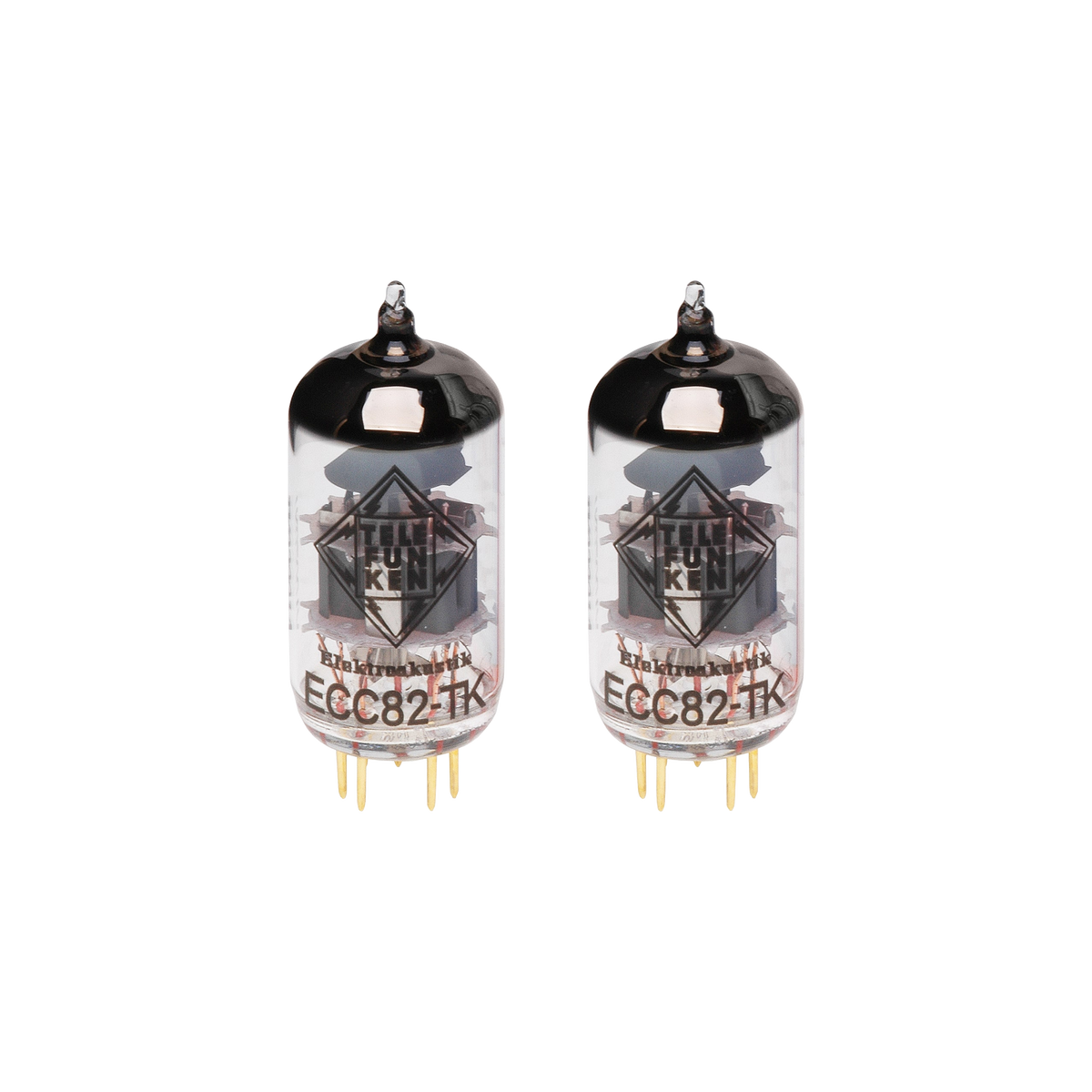

ECC82-TK Vacuum Tube, Matched Pair

Dual-triode vacuum tube set, matched pair, medium gain, low noise, gold-plated pins, 12AU7 compatibility

$250.00 CAD
Request a Quote – For Authorized Dealers Only

Can't find the product you're looking for?

Contact Us

Description

This matched pair of ECC82-TK dual-triode vacuum tubes is designed for hi-fi equipment, phono stages, headphone amplifiers, and instrument amplifiers. Its medium-gain, low-noise characteristics suit line amplification, driver stages, and phase-inverter circuits, with bright tonality, flat mids, focused lows, and wide dynamics.

The matched pair supports consistent performance in compatible two-tube equipment. Each tube is cryogenically treated, measured for gain, transconductance, noise, and microphonics, then burned in and retested for stability. Gold-plated pins support reliable electrical contact and signal transfer.

Specifications

General Specifications
Tube Type: R.F. dual triode
Set Configuration: Matched pair
Equivalent Tube Type: 12AU7
Base: Noval
Pin Count: 9

Heater Requirements
Parallel Heater Voltage: 6.3 V
Parallel Heater Current: 300 mA
Series Heater Voltage: 12.6 V
Series Heater Current: 150 mA

Maximum Ratings
Plate Voltage: 300 V
Grid Voltage: -50 V
Cathode-to-Heater Voltage: 180 V
Cathode Current: 20 mA
Plate Dissipation: 2.75 W
Cathode-to-Heater Resistance: 150 kΩ
Grid Resistor: 1 MΩ

Typical Characteristics
Plate Voltage: 250 V
Grid Voltage: -8.5 V
Plate Current: 10.5 mA
Transconductance: 2.2 mA/V
Internal Account: 7.7 kΩ
Amplification Factor: Dee
Interelectrode Capacitance
Grid-to-Cathode and Heater: 1.9 pF
Plate-to-Cathode and Heater: 1.9 pF
Grid-to-Plate: 1.63 pF

Physical Specifications
Height Excluding Pins: 49 mm
Height Including Pins: 56 mm
Diameter: 22 mm
Weight per Tube: 11.3 g
