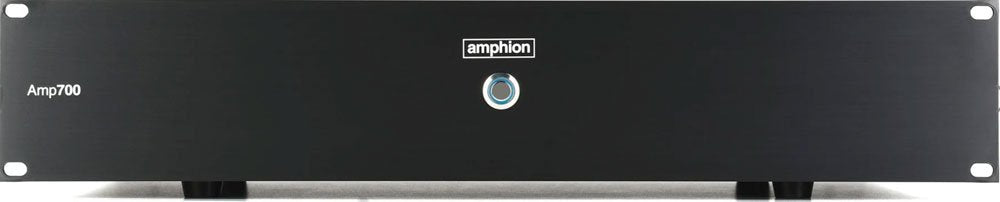

Amp700

It delivers 2 x 350 watts into 8 ohms and 2 x 700 watts into 4 ohm loads. The Amp700 provides low distortion power to ensure perfect control, speed, and high resolution across the whole frequency spectrum. The Amp700 stereo amplifier is the perfect partner to all Amphion models as the buffer stage allows you to set the amplifier gain according to the used speaker model / application.

LOW-DISTORTION POWER:

Amp700 delivers rock-solid control and tight, fast, highly resolving low-distortion power to get maximum performance from your monitors.

ADDED PERFORMANCE:

To reach the needed sonic performance, a proprietary in-house designed buffer stage compliments the merits of the latest Class-D technology.

THE PERFECT PARTNER:

Careful sonic matching and quality components make the amplifiers a perfect partner to all Amphion monitors and other passive speakers.

POWER RATING:

2x 350W, 8

2x 700W, 4

Minimum load impedance 2.5

DYNAMIC RANGE:

117 dB

PEAK OUTPUT CURRENT:

30A

THD+N 1 W@1 KHZ:

0,006%

AMP + POWER SUPPLY EFFICIENCY (MAXIMUM):

84 %

CERTIFICATION:

CE, EuP and Energy Star

WEIGHT:

5,5 kg (12 lbs)

MAINS:

Universal mains, auto select (100-240 V, 50-60 Hz)

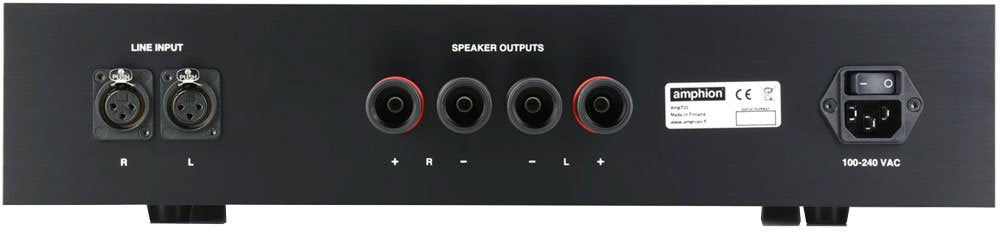

INPUTS:

: 2 x Neutrik XLR inputs

SPEAKER CONNECTORS:

: 3-way binding posts (banana, bare wire or spades)

CASING:

19" rack mountable (2U) high quality aluminium

ASSEMBLY:

Finland
