TRINNOV AUDIO

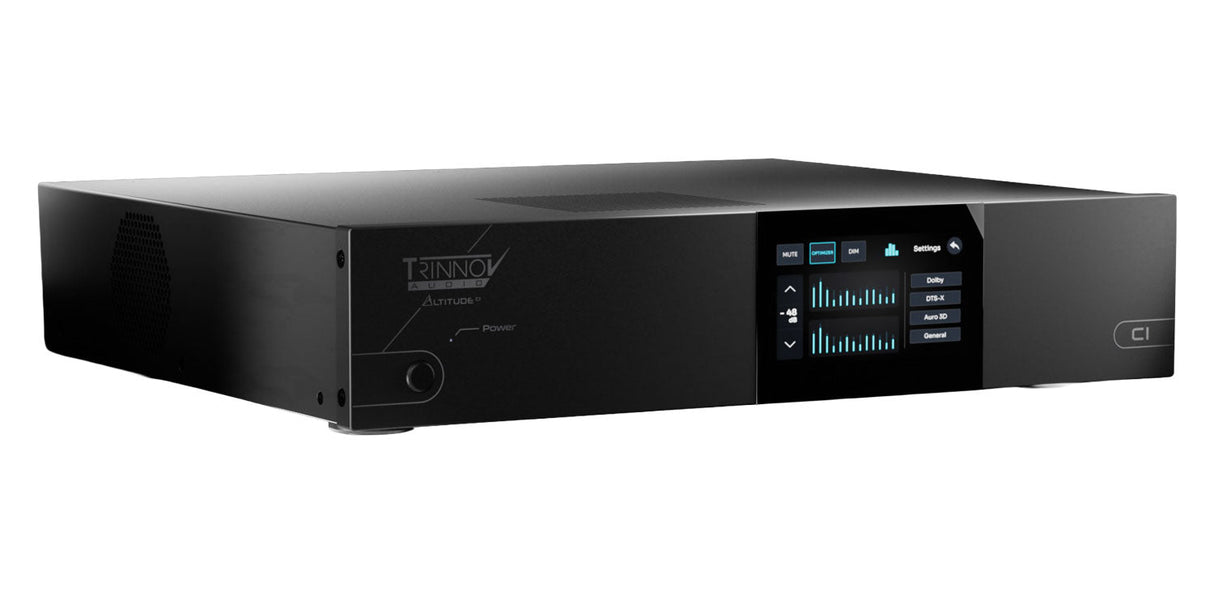

Altitude Ci 24

AV processor, 24-channel decoding, Dante & AES67 support, HDMI 2.1, Dolby Atmos, DTS:X Pro, Auro-3D, IMAX Enhanced, scalable architecture, networked audio integration

$25,196.00 CAD

Can't find the product you're looking for?

Description

The Trinnov AltitudeCI 24 is a high-performance audio processor designed for custom integration, bringing advanced immersive sound capabilities into a streamlined and flexible platform. Built to handle complex home cinema and media room installations, it supports up to 24 channels of decoding, making it an ideal choice for multi-speaker layouts with precise spatial audio. Its compact 2RU design allows it to fit neatly into rack systems while still delivering the depth and clarity expected from premium cinema-grade processing.

Designed with modern installations in mind, the AltitudeCI 24 offers a fully networked approach to audio distribution, with native support for Dante and AES67. This allows seamless communication with compatible amplifiers and audio systems, reducing the need for extra hardware and simplifying system design. Integrators can easily tailor setups using a mix of analog, digital, and networked connections, creating solutions that adapt to both current needs and future expansion.

Beyond connectivity, the AltitudeCI 24 focuses on delivering an exceptional listening experience through Trinnov’s proprietary acoustic optimization technologies. These tools refine sound placement, balance, and room interaction to create a more natural and immersive environment. Whether used in a dedicated home theater or a high-end media space, it provides the control and precision needed to bring content to life with clarity and impact.

Specifications

General Specifications
Device Type: Audio video processor
Compatibility: Dolby Atmos, DTS:X Pro, Auro-3D, IMAX Enhanced

Audio Processing
Decoding Channels: 24
Channel Count: 8 to 32 outputs configurable in 2-channel increments
Future Channel Capacity: Up to 64 channels
Processing Architecture: 64-bit floating point
Sample Rate: Up to 192 kHz

HDMI Connectivity
HDMI Inputs: 4
HDMI Outputs: 2
HDMI Version: 2.1 with HDCP 2.3
Max Bandwidth: 40 Gbps
8K Support: Up to 8K60 (4:2:0)
4K Support: Up to 4K120 (4:4:4)
HDR Formats: HDR10, HDR10+, Dolby Vision, HLG
Gaming Features: VRR, ALLM, FRL
ARC Support: ARC and eARC
Other Features: On-screen display, full pass-through

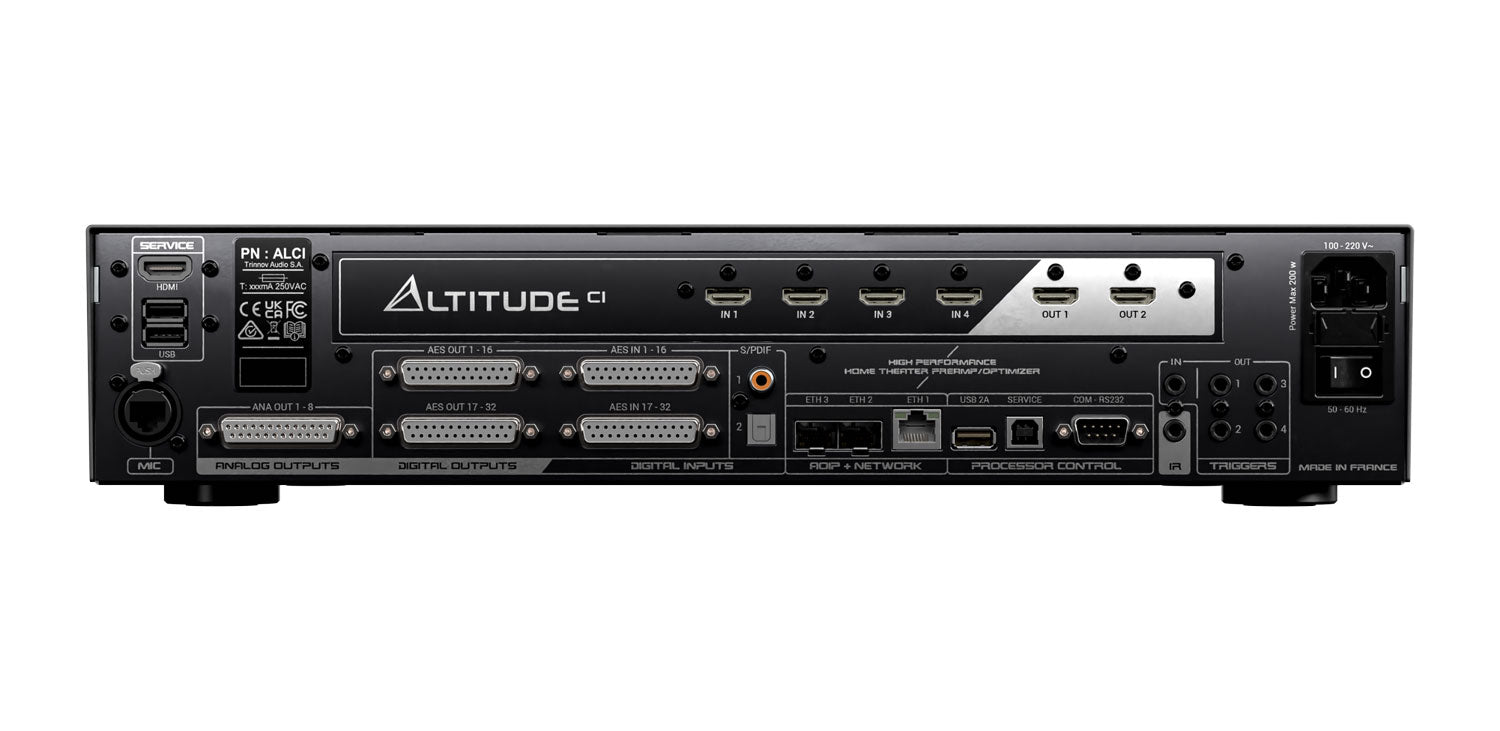

Audio Inputs
Dante Inputs: Up to 32 channels
AES/EBU Inputs: Up to 32 via 2x DB25
S/PDIF Inputs: 1 coaxial, 1 optical
3D Microphone Input: 1 Ethercon with power
Future AoIP Inputs: Up to 64 channels

Audio Outputs
Dante Outputs: Up to 32 channels
AES/EBU Outputs: Up to 32 via 2x DB25
Analog Outputs: 8 balanced via DB25
Analog Output Level: +18 dBu max
THD+N: 110 dB
Dynamic Range: 115 dB A-weighted
Routing: Any channel to any output
Output Types: Analog, digital, AoIP

Network & AoIP
AoIP Protocols: Dante, AES67
Ethernet Ports: 3 Gigabit
Port Types: 1 RJ45, 2 SFP
Networking Modes: Integrated switch, isolated, redundant
Dolby Server Compatibility: AES67 supported

Control & Integration
Control Interfaces: RS-232, IP, IR
IR Input: 3.5 mm jack
Trigger Outputs: 4 programmable
Trigger Input: 1
Control Platforms: Crestron, Control4, Savant, RTI, AMX, Nice, AVA
User Interface: Web UI, macOS, Windows
Mobile Apps: iOS, Android

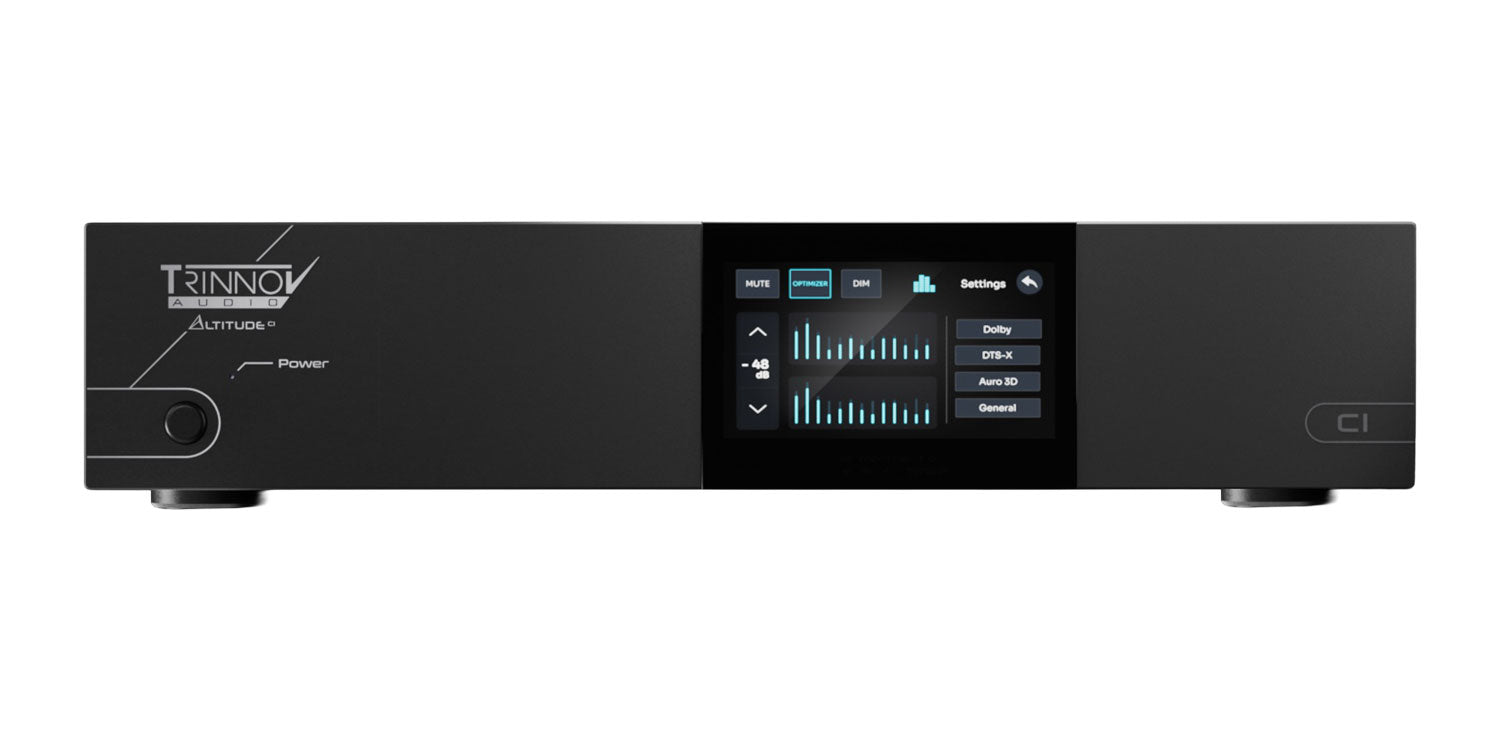

Front Panel: 5-inch touchscreen
Remote Management: Cloud access

Audio Optimization
Technologies: Optimizer, WaveForming, Remapping
Calibration: Guided setup workflow
Microphone Support: 3D measurement microphone

Streaming & Playback
Roon: Ready
UPnP Formats: FLAC, WAV, MP3, OGG
Audirvana: Supported

Power & Thermal
Power Supply: 100 to 240 V auto-switching
Max Power Consumption: 140 W
Idle Power Consumption: 0.5 W
Cooling: Temperature-controlled fans
Heat Output: 480 BTU/hr
Fuse: 2x T800 mA

Chassis & Dimensions
Form Factor: 2RU rack mount
Width: 482 mm
Height: 97 mm
Depth: 371 mm
Weight: 8.6 kg
Construction: Aluminum with glass front panel
