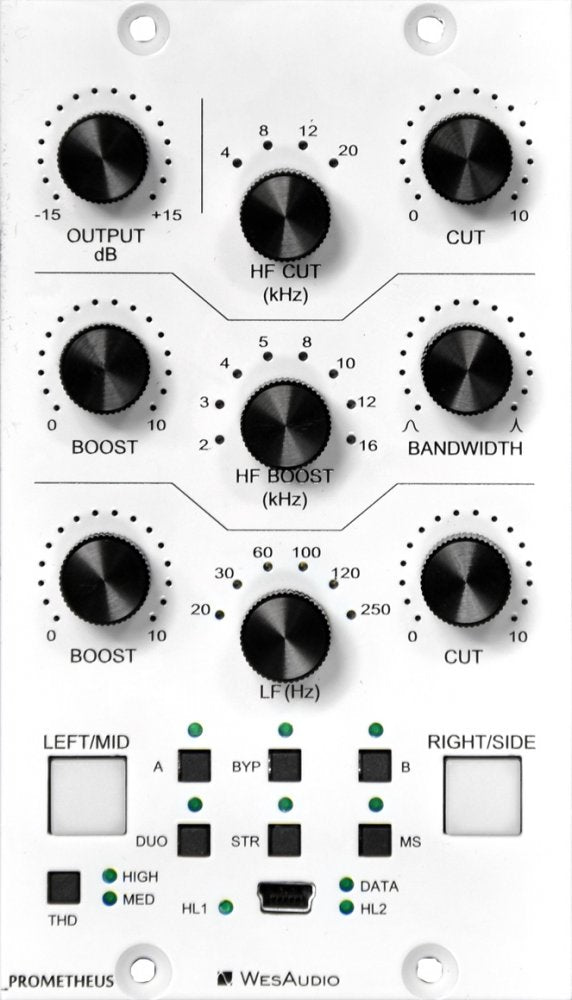

_Prometheus

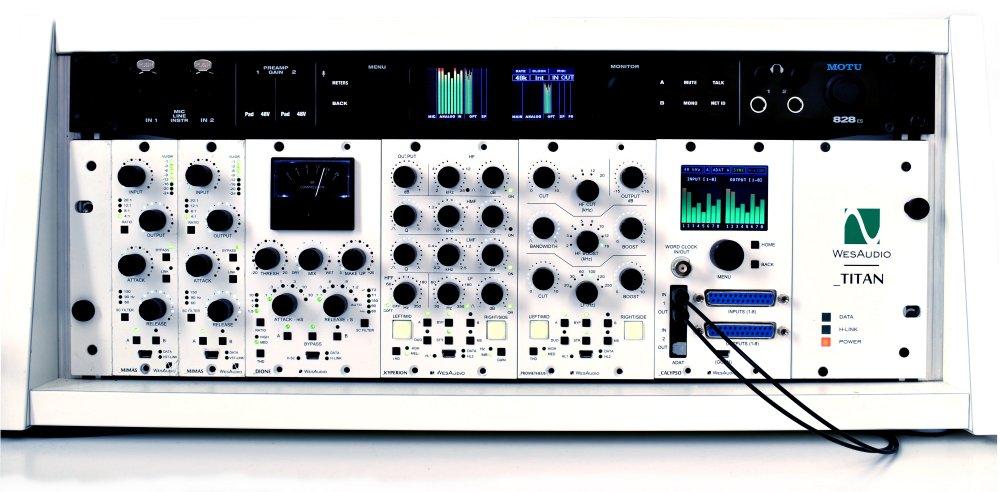

_PROMETHEUS is fully analog passive EQ with +24dBu of headroom. It features pultec-style warm sound with a lot of innovative improvements. Its modern approach to design allows instant recall of your classic vibe through very flexible plugin available in most common formats. _PROMETHEUS as all ng500 products, integrates with your DAW environment via front panel USB socket or _TITAN chassis.

• +24dBu of headroom

• Stereo / Dual mono / Mid/Side operation mode

• Passive equalizer (Pultec-style) design based on inductors

• Low frequency boost/cut - 20, 30, 60, 100, 120, 250 Hz.

• High frequency boost - 2, 3, 4, 5, 8, 10, 12, 16 kHz.

• High frequency cut - 4, 8, 12, 20 KHZ.

• Analog inductor

• Proprietary THD implementation

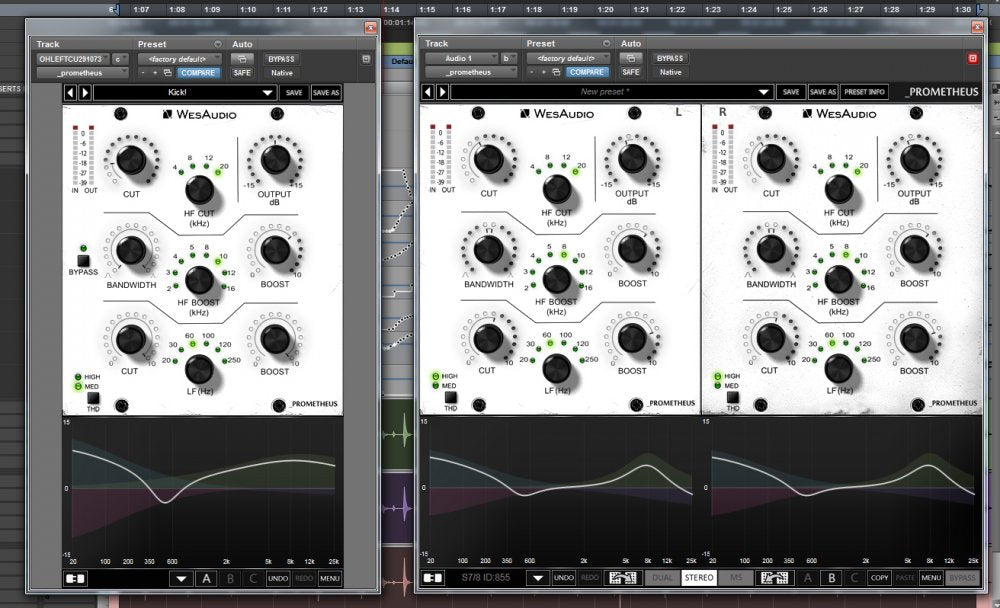

• Flexible DAW/Live plug-in control for instant recall

• 6 touch sensitive encoders allows to record automation

• True bypass

• In and OUT metering with clip detection

• A/B compare feature

• Frequency response: 10Hz-150kHz (-2dB)

• THD+N < 0.01% (1kHz,0dBu)

• Input impedance: 10kohm

• Output impedance: <100ohm

• Max signal level: +24dBu

• Crosstalk:< -100dB

• THD (MID switch): 1%

• THD (HIGH switch): 2.5%

• Power consumption: 70mA per rail

• Dimensions : 76x133x158mm
