_Phoebe

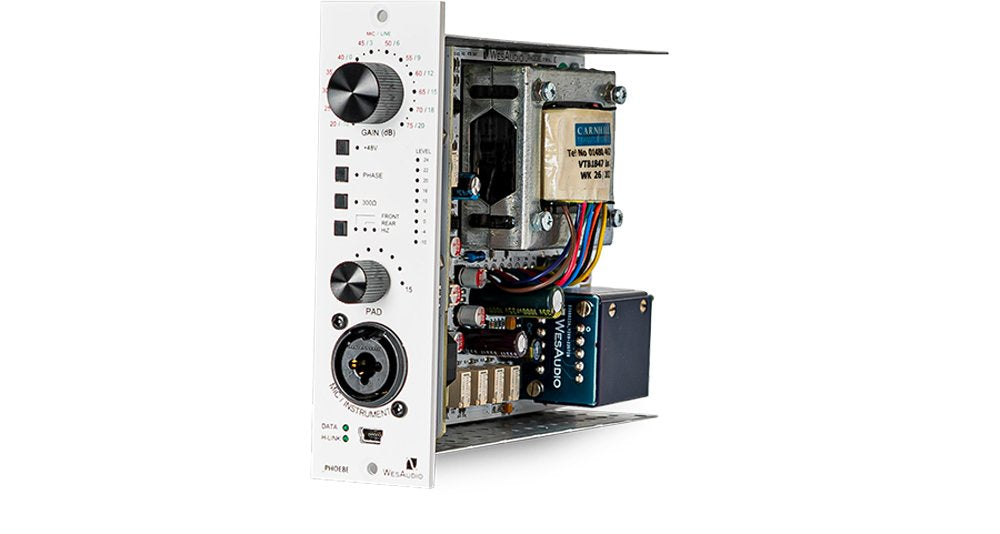

The most noble character of microphone preamplifiers now fully integrated with digital workflow. Dual amp vintage design with most demanded modern features! We are proud to present _PHOEBE " NG500 fully analog, Class A microphone/line/instrument preamplifier with digital recall.

• 100% analog microphone/line preamp with +28dBu of headroom.

• Class A fully analog " inspired by famous British design based on dual amp topology.

• Microphone gain up to 75dB.

• Carnhill Transformers (input and output).

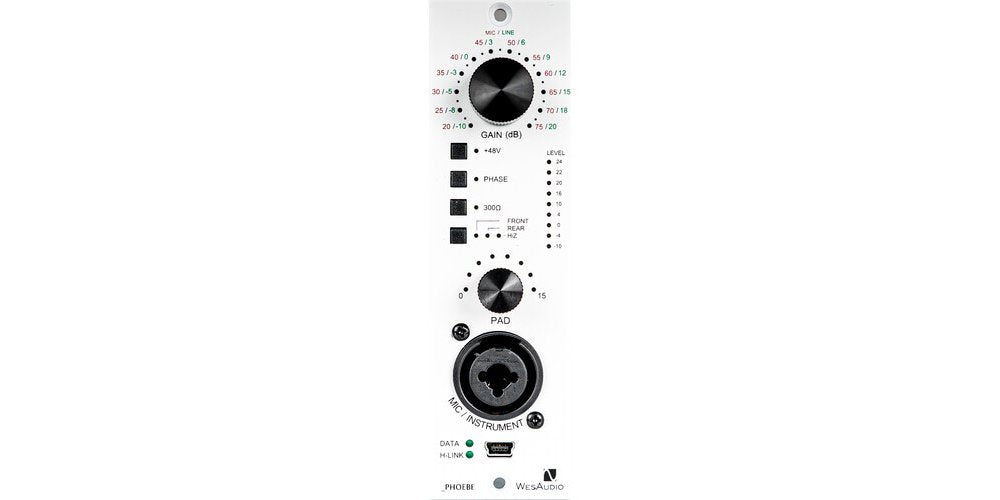

• Output signal metering on the front panel with clip detection.

• Phantom power and phase invert control.

• Switchable impedance input (1200/300Ohm).

• All controls/analog settings are fully manageable via the WesAudio GCon DAW plug-in.

• 15dB OUTPUT PAD " passive output attenuation circuit with 1 dB step. (after the output transformer).

• Front panel XLR/TS socket which supports " HiZ instrument input (TS), line input (XLR), microphone input (XLR).

• Recallable signal source to be either back XLR Socket, or front panel XLR/TS socket.

Frequency response: +/- 0.5dB 20Hz-20kHz; -3dB at 50kHz

Distortion: 0.005% at 1kHz at +20dBu output

Line input impedance: 5.5k ohm bridging

Microphone input impedance: 300/1200 ohm

Noise: unity gain (better than -100dbU) Max gain +75dB (better than -70dbU)

EIN: better than -120dB

Max power consumption: 170mA(+16V); 100mA(-16V)

Dimensions: 38x133x145mm
