WESAUDIO

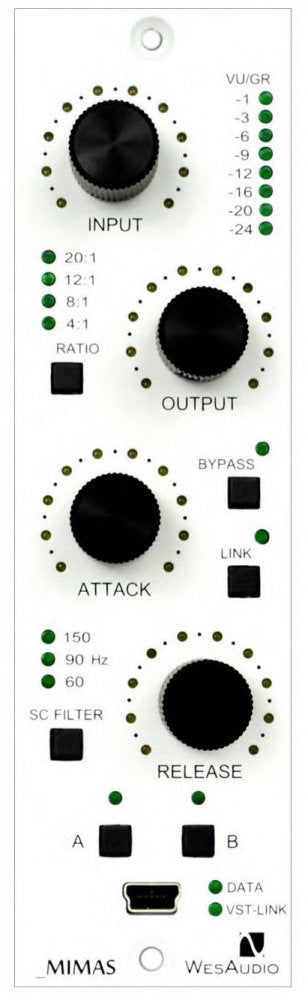

_Mimas

$1,620.00 CAD
Request a Quote – For Authorized Dealers Only

Description

Since year 1968 this style of compression dominated hundreds of recordings and to this day it is most commonly used signal processor in the industry. Lightning-fast attack and release times became main companions of audio engineers. WesAudio proudly presents _MIMAS - ng500 series implementation of legendary FET compressor. This time along with classic analog sound You will receive most demanded feature in audio industry - DIGITAL RECALL.

Features

Fully digitally controlled analog circuit,

+24dBu of headroom,

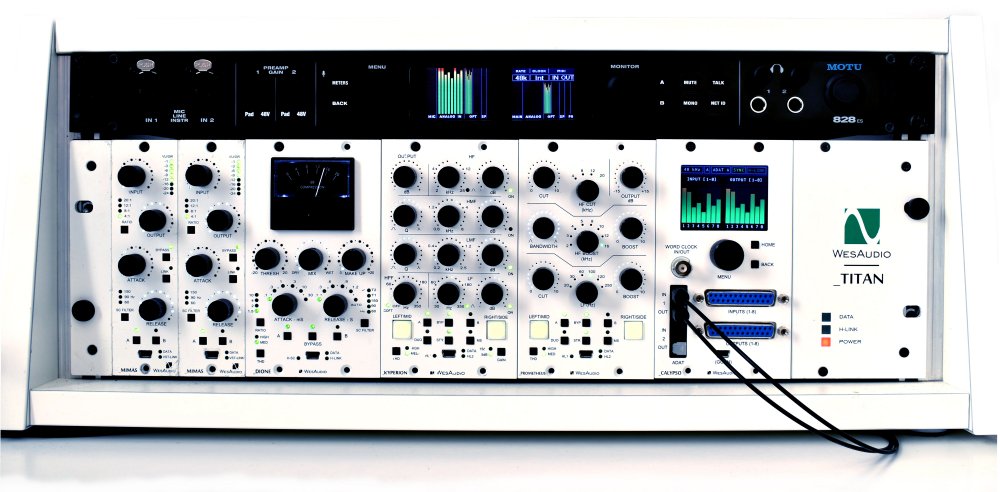

Digital recall can be acheived by connecting unit directly through front panel mini USB socket, or using it inside _TITAN chassis,

Dedicated stereo plugin to manage two devices at the same time,

Digital sidechain - it is possible to send any track from your DAW as side chain signal to the compressor - It is enough to configure side chain feature in connected plugin,

4 touch sensitive encoders (allow to record automation of all parameters to DAW in real time),

True bypass,

Felectable VU(in/out)/GR meter (Switch can be accessed on the plugin),

Free software and firmware upgrades.

Specifications

Attack time: 20us - 800us

Release time: 50ms - 1100ms

Compression ratio : 4:1; 8:1; 12:1; 20:1; all button mode

True Bypass

SC High Pass filter - 60,90,150Hz

Output impedance : 600ohm

Freq. response : 20Hz do 20kHz (+/- 1dB)

Signal to noise ratio SNR : >83dB

Power consumption: 3W (100mA/+16V i 60mA/-16V)
