_Hyperion

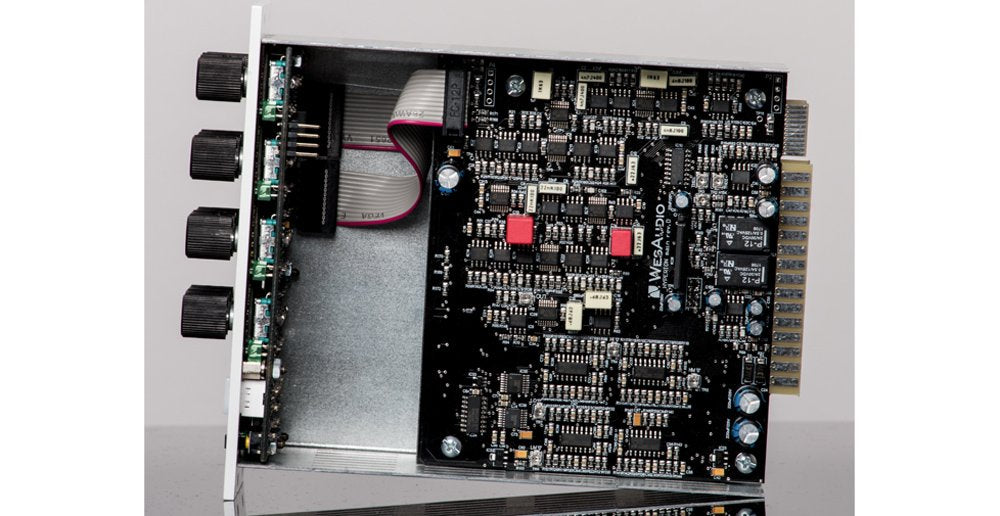

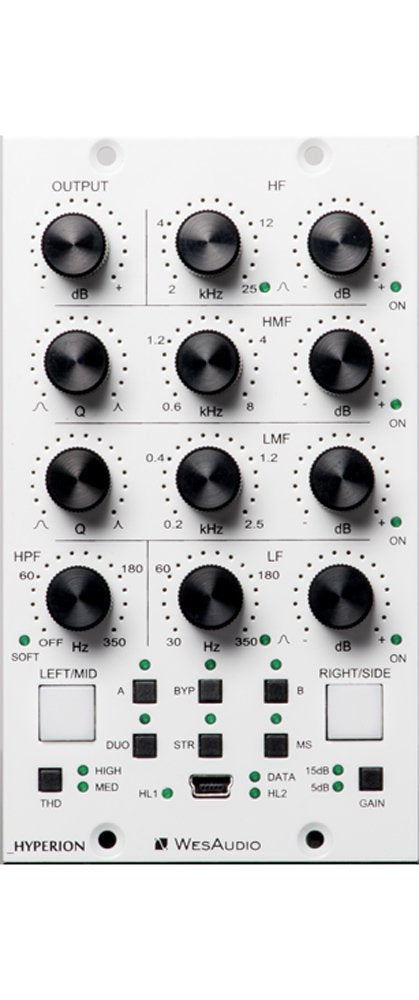

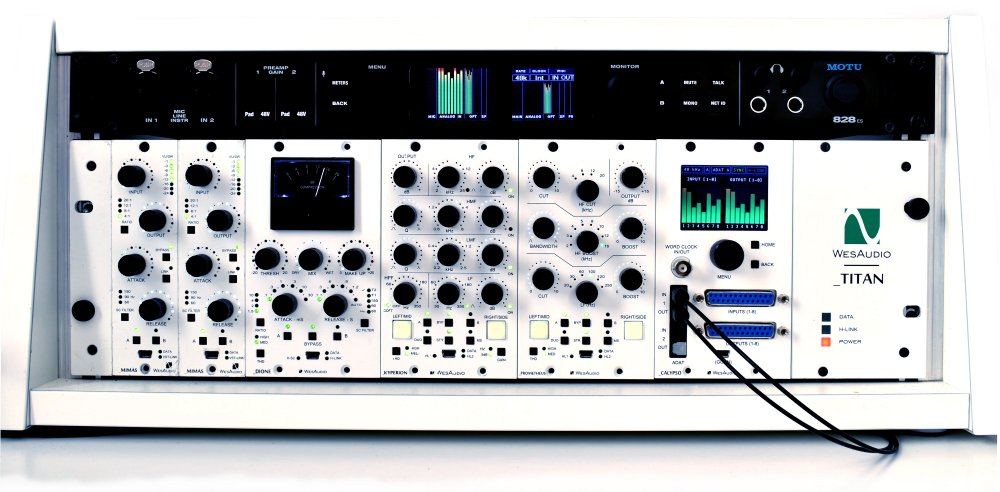

HYPERION is fully analog parametric EQ with +24dBu of headroom. It features a lot of innovative improvements that no other processor on the market provides. Its innovative design utilizes 15 VCAs per channel to provide essentially noiseless parameter changes and very musical nature. _HYPERION is next product in NG500 line where total recall is implemented through front panel USB socket or _TITAN chassis.

• +24dBu of headroom

• Stereo / Dual mono / Mid/Side operation mode

• 4-Band EQ with switchable gain range for 5db or 15dB boost or cut per band:

• High band - 2kHz to 25kHz (bell or shelf)

• High-Mid band - 600Hz to 8Khz with full Q control

• Low-Mid band - 200Hz to 2.5Khz with full Q control

• Low band - 30 Hz to 350Hz (bell or shelf)

• HPF with 12dB/Oct or 6 dB/Oct slopes

• Each band features its own Bypass switch

• Essentially Noiseless parameter changes

• Proprietary THD implementation

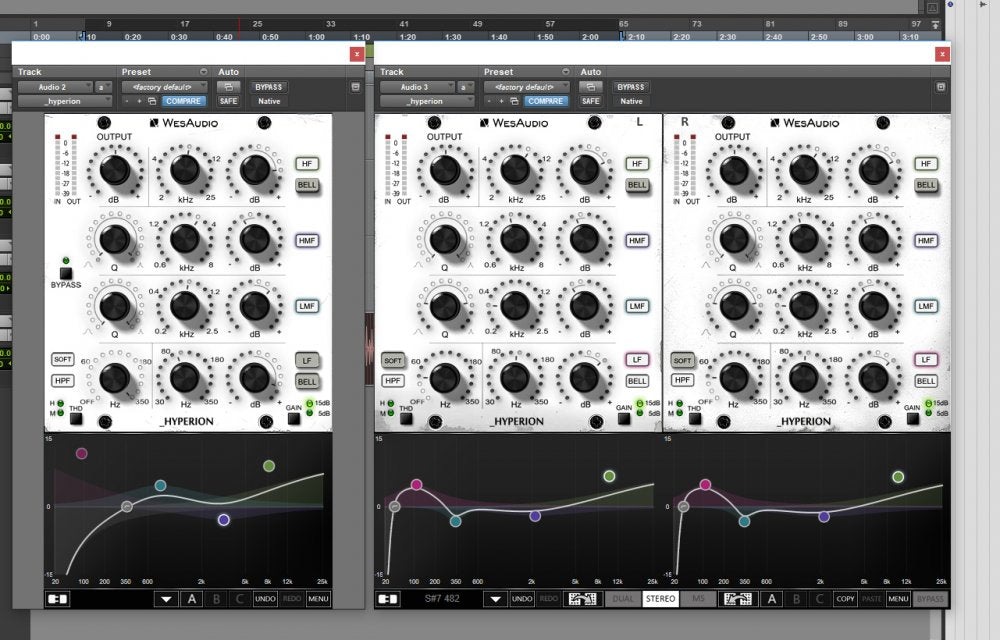

• Flexible DAW/Live plug-in control for instant recall

• 12 touch sensitive encoders allows to record automation

• True bypass

• In and OUT metering with clip detection

• A/B compare feature

• Frequency response: 10Hz-150kHz (-2dB)

• THD+N all bands gain "0": 0.003% (1kHz,0dBu)

• THD+N +15dB band boost: <0.15% (1kHz,0dBu)

• Input impedance: 10kohm

• Output impedance: <100ohm

• Max signal level: +24dBu

• Crosstalk:< -100dB

• THD (MID switch): 1%

• THD (HIGH switch): 2.5%

• Power consumption: 150mA per rail

• Dimensions : 76x133x158mm

• Warranty: 2 years

• Unit needs to warm up for about 5 minutes before usage as its temperature

• may affect some internal variables - like frequencies of each band, and very slightly gain and Q settings.

• Each band can boost or cut in configurable gain mode (It affects also OUTPUT control):

• 15dB boost or cut in 0.25 dB steps,

• 5dB boost or cut in 0.083 dB steps,

• Each frequency control has predefined amount of steps in logarithmic scale:

• HF frequency - 256 steps,

• HMF frequency - 256 steps,

• LMF frequency - 256 steps,

• LF frequency - 200 steps,

• HPF frequency - 128 steps.
