General Specifications

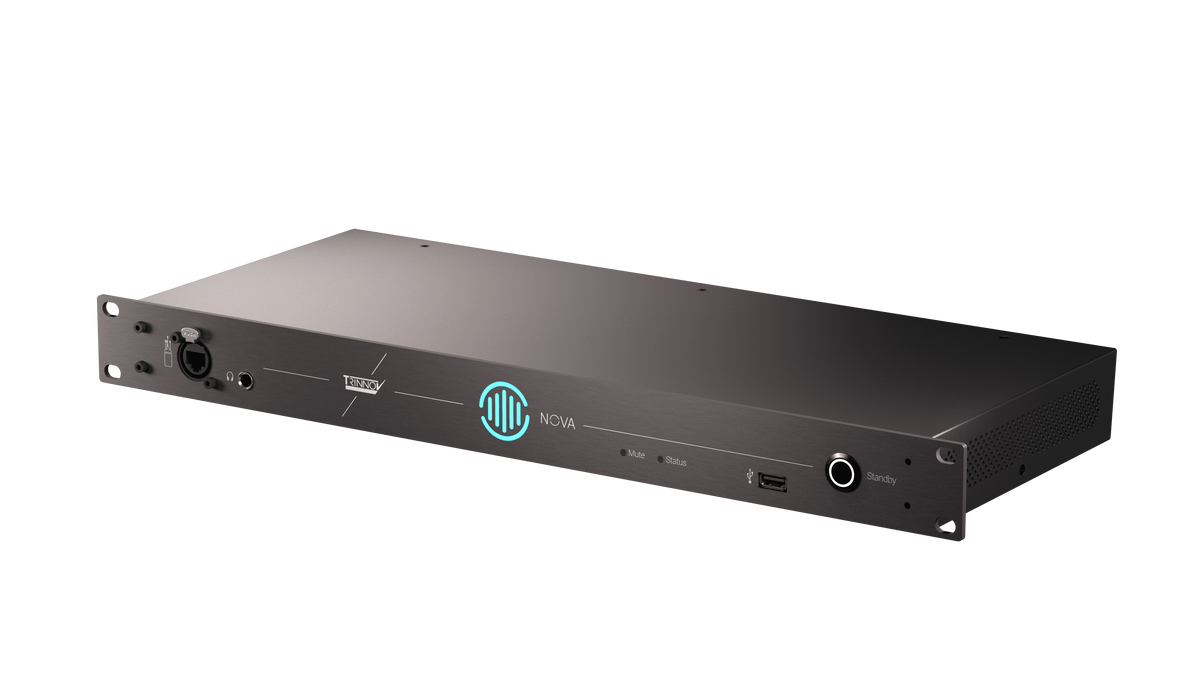

Device Type: Compact digital audio processor bundle
Rack Format: 1U, 19-inch
Loudspeaker/Room Optimization Channels: 6

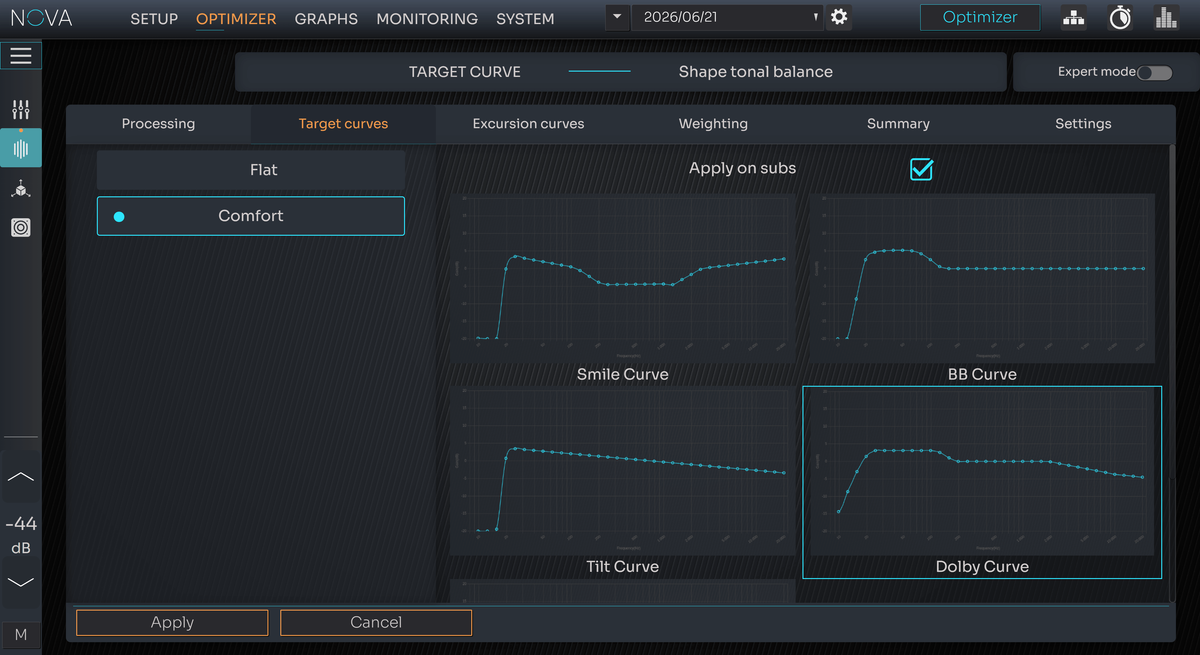

Optimization Technology: Trinnov Optimizer
Monitoring Functions: Integrated
Bass Management: Supported
Fan Cooling: Fanless

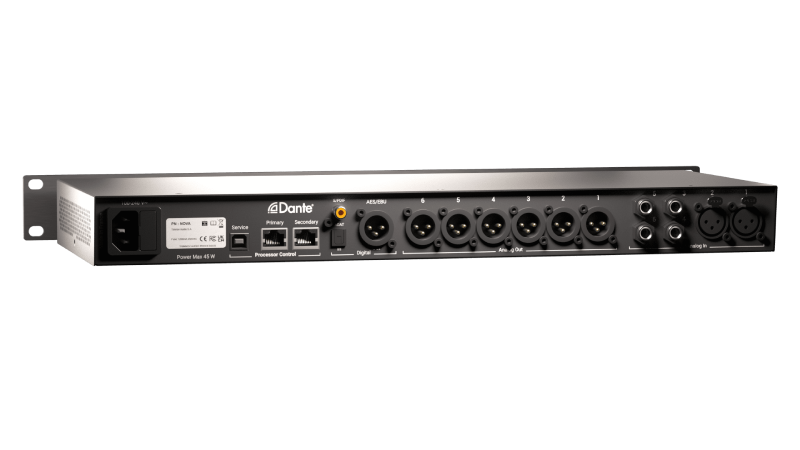

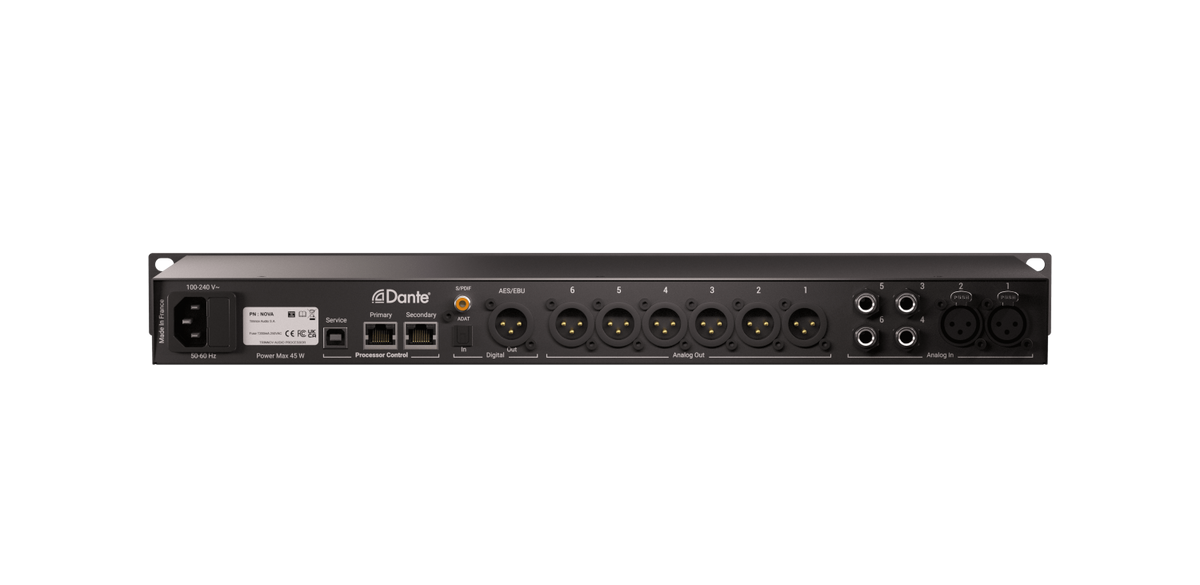

Audio Inputs and Outputs

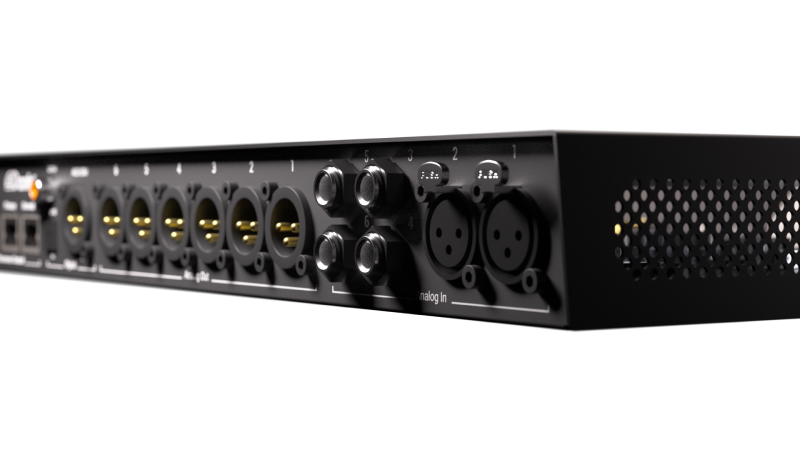

Analog Inputs: 2 x XLR, 4 x TRS
Analog Outputs: 6 x balanced XLR
Digital Inputs: Coaxial S/PDIF, Optical S/PDIF/ADAT
Digital Output: AES/EBU

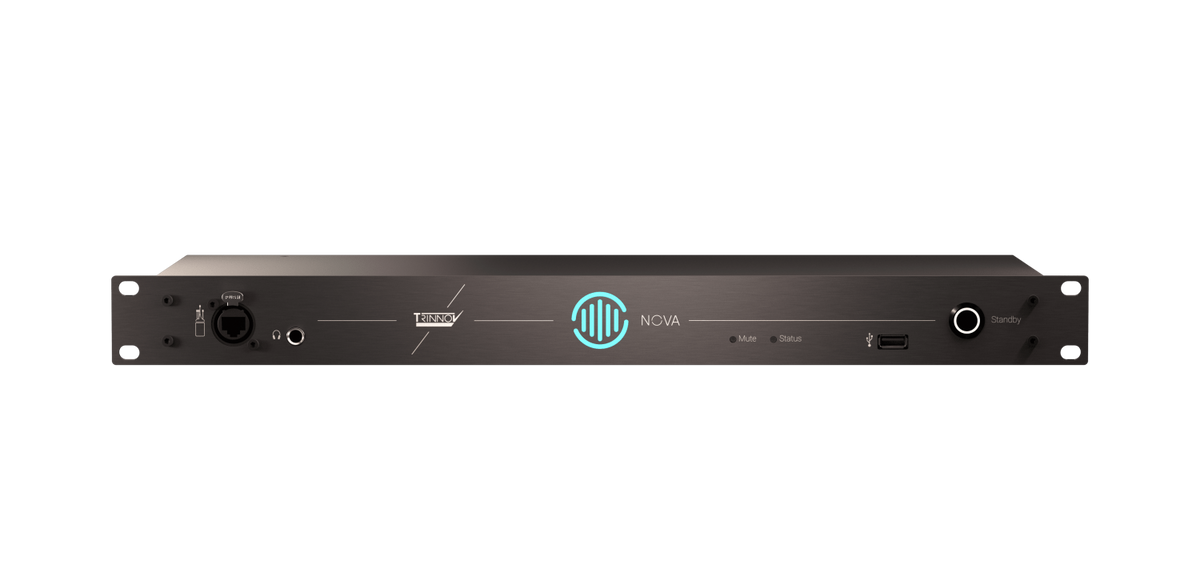

Headphone Output: Dedicated front-panel output
Measurement Microphone Input: Front-panel etherCON
La Remote Connection: Front-panel USB
Service Connection: USB-A
Optical Input Modes: S/PDIF, ADAT
ADAT SMUX: Up to 96 kHz
Dante and Networking
Dante Audio Interface: 16 inputs x 16 outputs
Ethernet Ports: 2 x RJ45
Ethernet Speeds: 100 Mbps, 1000 Mbps
Network Modes: Switched, Redundant, Isolated
Maximum Ethernet Cable Length: 100 m with Cat 6e

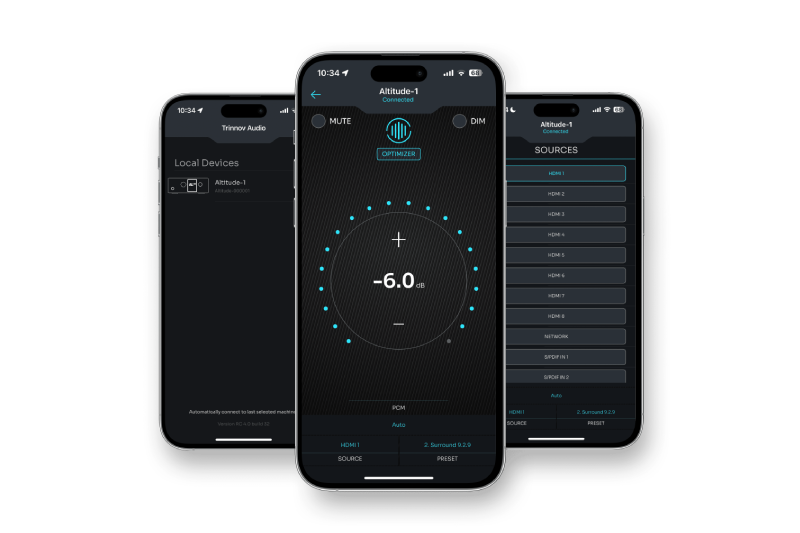

Network Control: Trinnov App
Dante Audio over IP: 1 Gbps network required
Digital Audio
Supported Internal Sample Rates: 44.1 kHz to 192 kHz
Default Sample Rate: 48 kHz

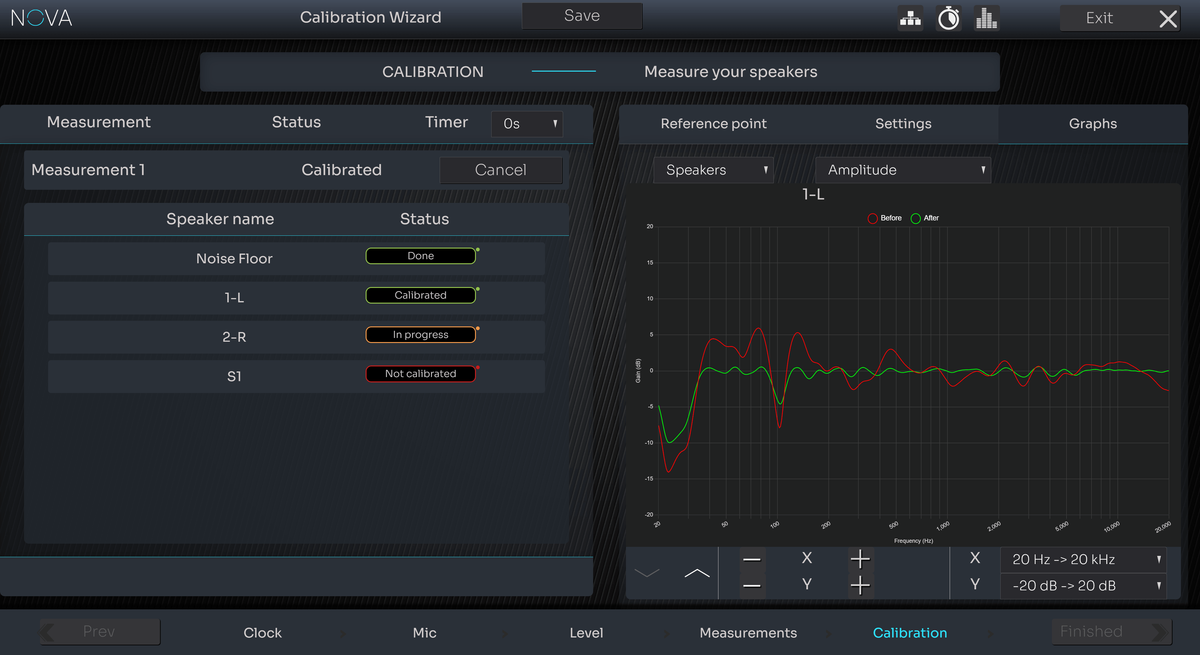

Calibration Sample Rate: 48 kHz
Clocking: Internal or external
External Clock Behavior: Automatic sampling-rate synchronization

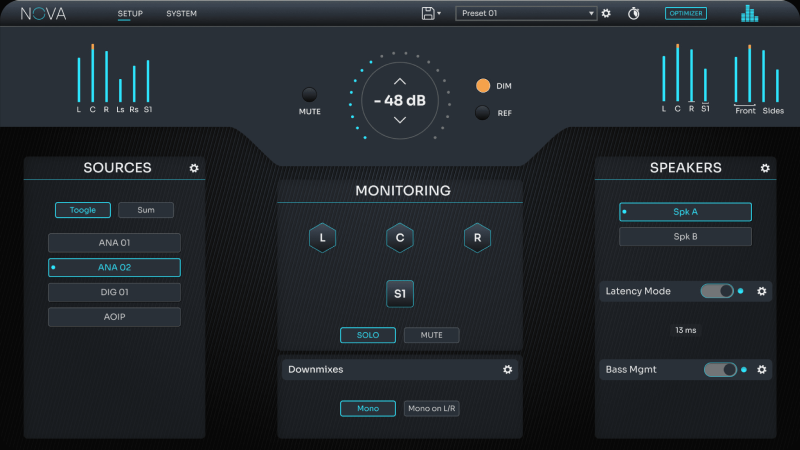

Monitoring and Control
Speaker Set Control: Supported
Speaker Solo/Mute: Supported
Downmixes: Supported
Reference Level Recall: Supported
Dim: Supported
Presets: Supported
Direct Outputs: Zero-processing-delay, unity-gain, unprocessed
Control Compatibility: La Remote, Trinnov App, EuCon, Stream Deck plugin
La Remote Configuration: Fully customizable buttons and layers

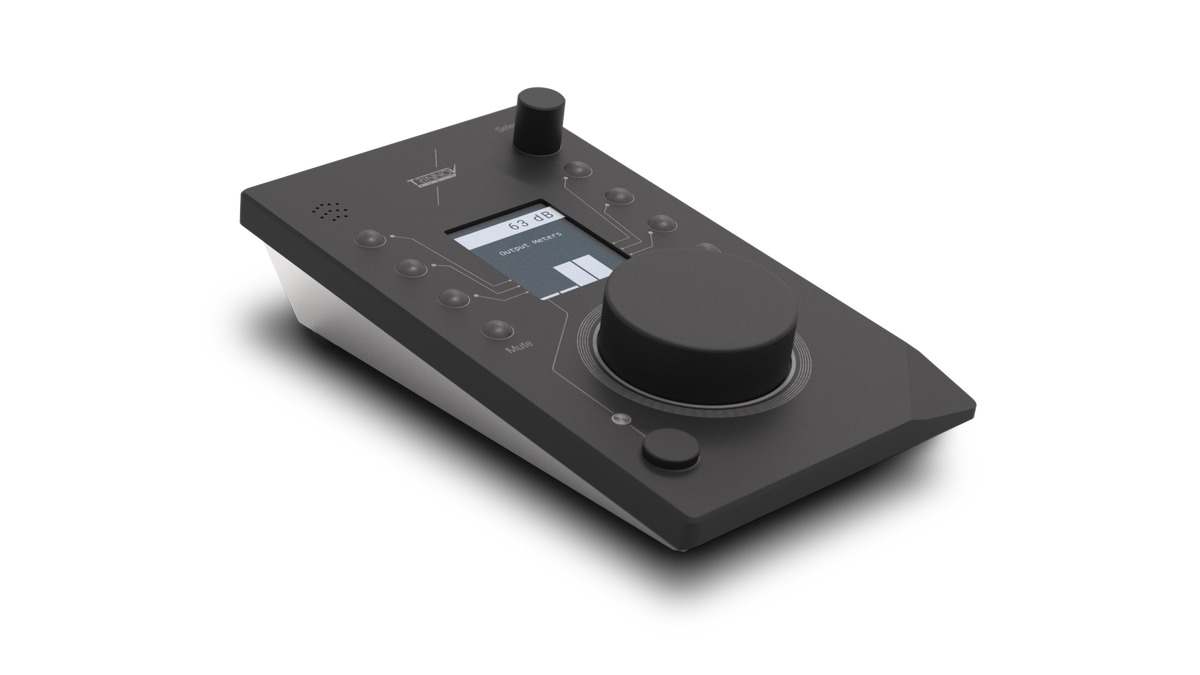

La Remote
Main Controls: Central volume knob, selection knob, fixed mute button
Assignable Controls: 8 buttons
Control Layers: Multiple user-definable layers
Connection: USB
Power: USB powered
Maximum Current Consumption: 200 mA
USB Standard: USB 1.1 Full Speed
Recommended Maximum USB Cable Length: 3 m
Built-in Microphone: Talkback microphone

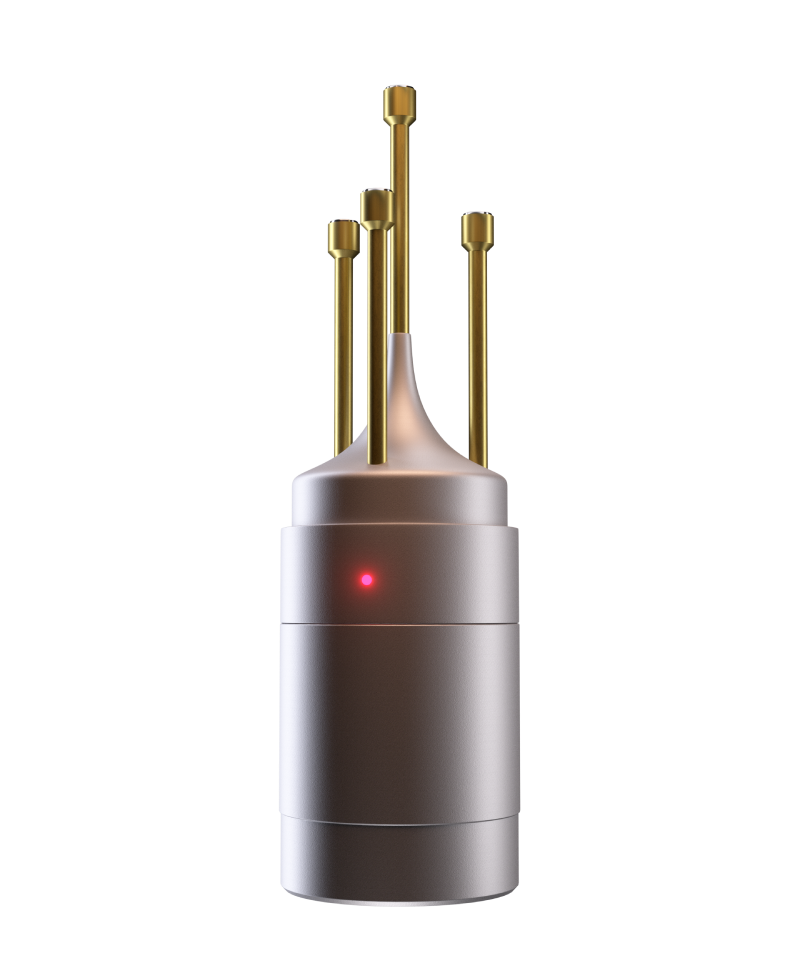

Measurement Microphone
Microphone Type: 3D Microphone ETH
Processor Connection: etherCON
Cable Length: 10 m
Automatic Detection: Supported
Automatic Compensation Profile Import: Supported
Microphone Stand Adapter: Included
Shock Mount: Included
Electrical
AC Input: 100–240 V AC
Power Inlet: IEC C14
Power Supply: Internal switch-mode
Power Supply Filtering: Built-in inline filter
Voltage Regulation: Supported
Mains Interference Suppression: Supported
Fuse Type: T500mA
Environmental Requirements
Operating Temperature: 0 °C to 40 °C
Relative Humidity: 20–65%
Maximum Internal Temperature Threshold: 85 °C
Dimensions and Weight
Processor Width: 440 mm
Processor Depth: 192 mm
Processor Height: 44 mm
Processor Net Weight: 2.5–2.6 kg
Processor Gross Weight: 4 kg
Processor Box Dimensions: 59 x 9 x 31 cm
Microphone Net Weight: 0.8 kg
Microphone Gross Weight: 1 kg
Microphone Box Dimensions: 24 x 16 x 8 cm
La Remote Net Weight: 1.0 kg
La Remote Gross Weight: 1.2 kg
La Remote Width: 105 mm
La Remote Length: 187 mm
La Remote Maximum Height: 62.38 mm

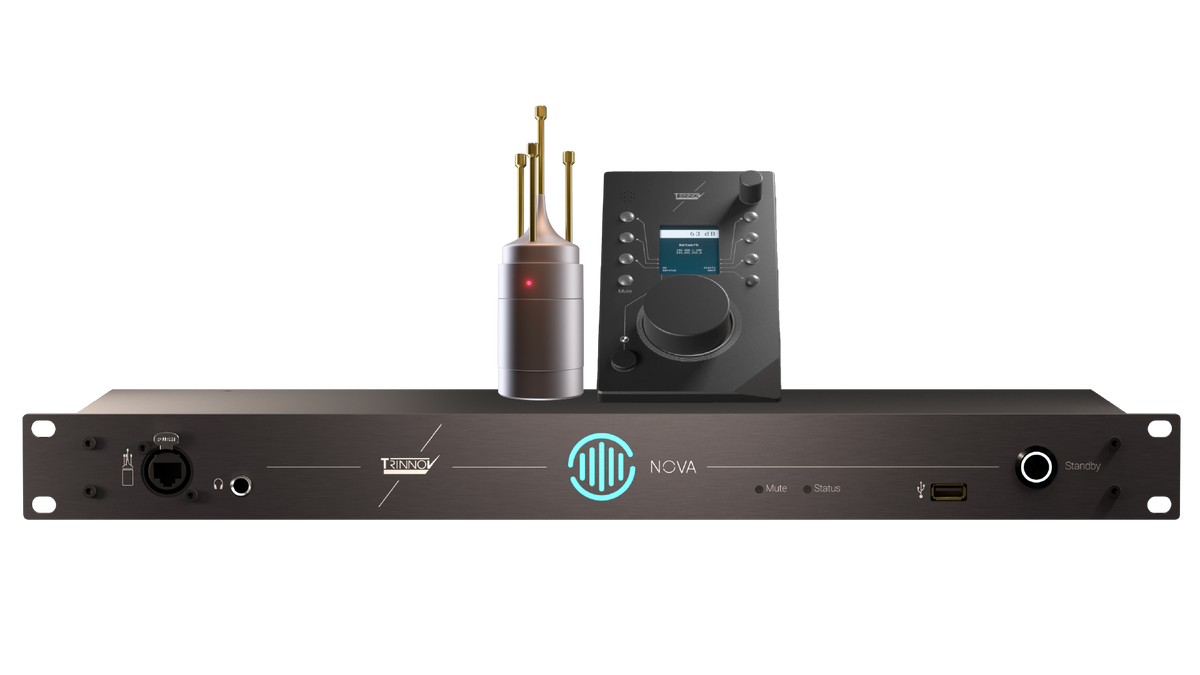

Included Components
Digital Audio Processor: 1
3D Microphone ETH: 1
La Remote: 1
Optimization Channel Pairs: 2
Processor Protection Bag: 1
Power Cord: 1
Cat5e Network Cable: 1
Quick Start Guide: 1
Microphone Cable: 10 m
Microphone Stand Adapter: 1
Microphone Shock Mount: 1
