TELEFUNKEN

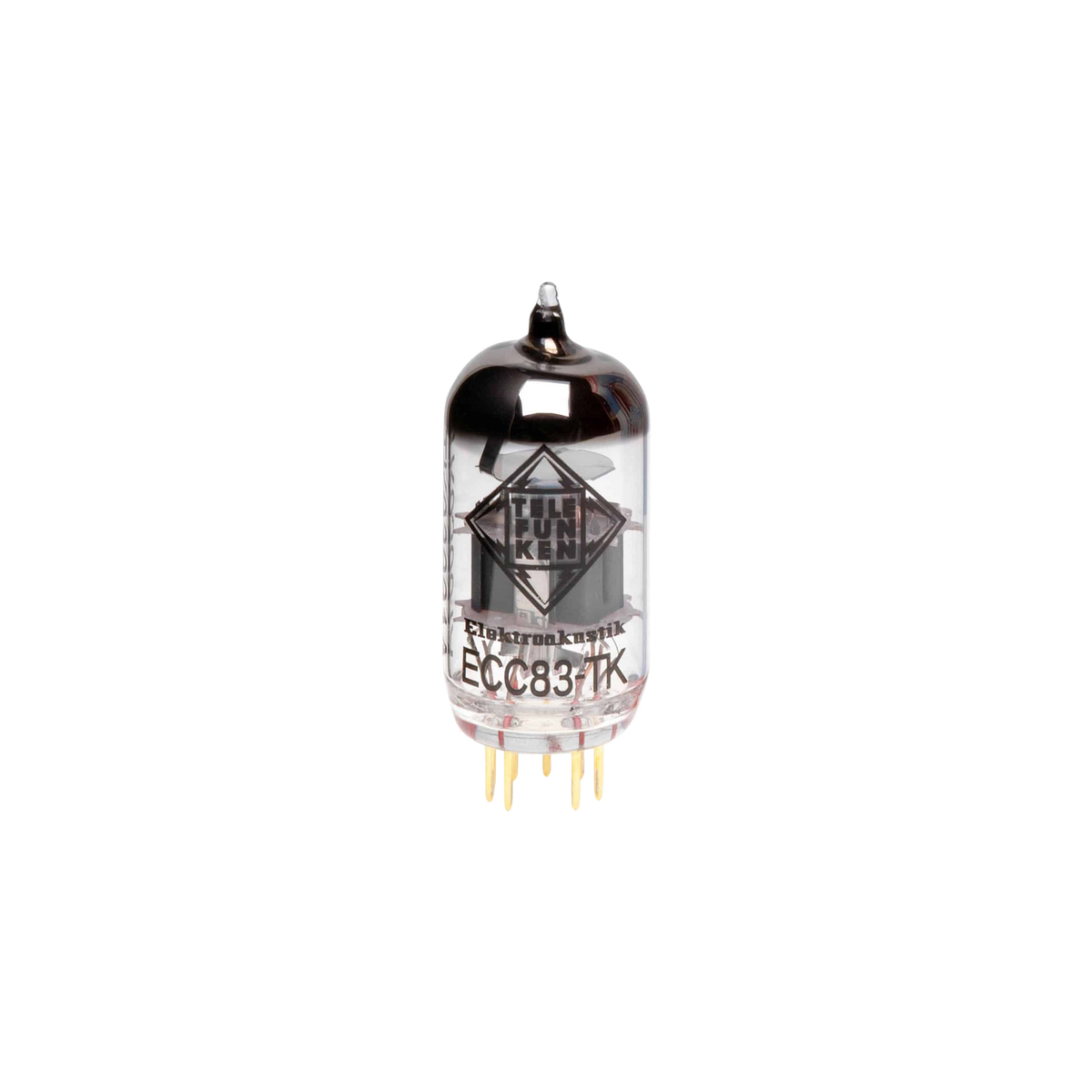

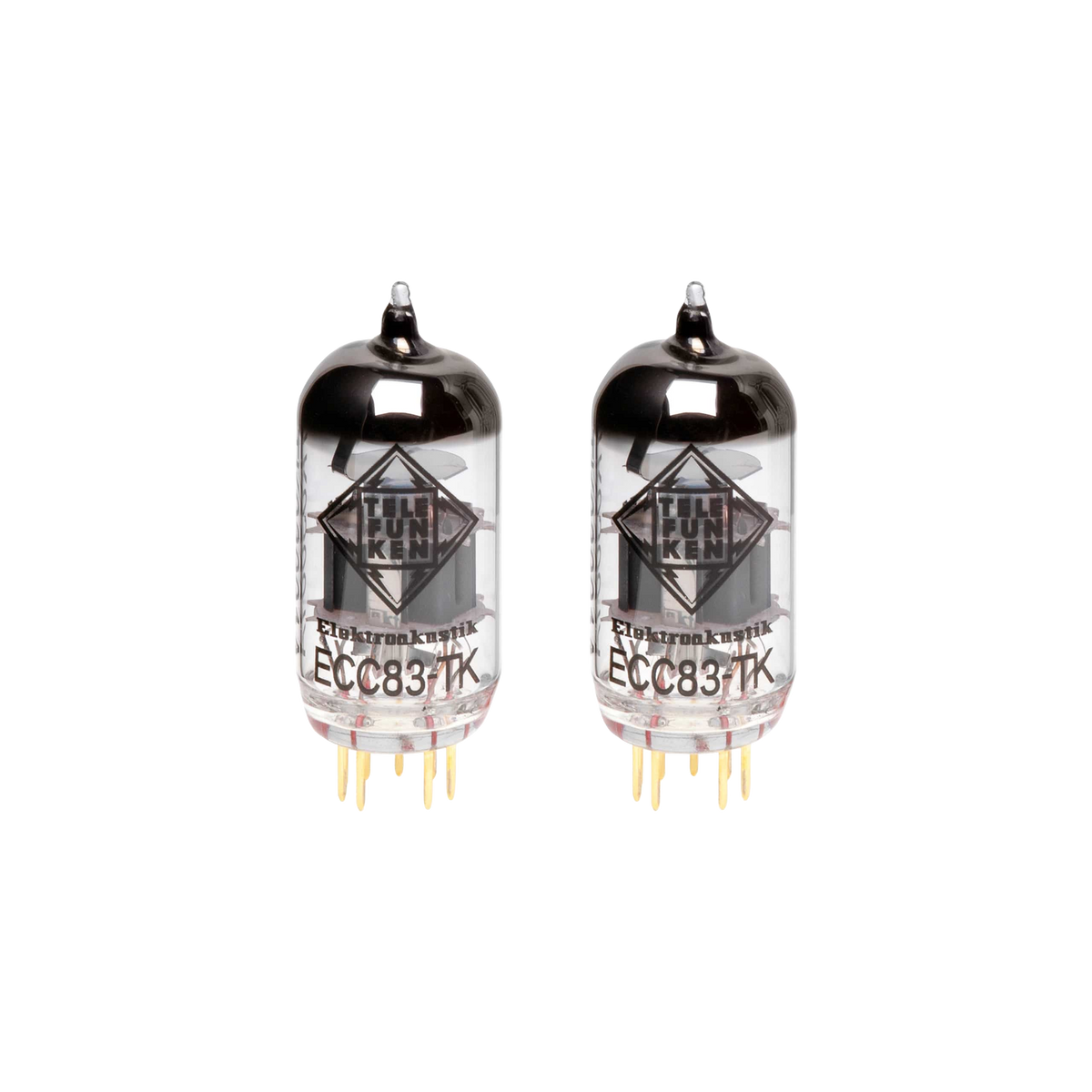

ECC83-TK Vacuum Tube, Matched Pair

Dual-triode preamp vacuum tube pair, matched performance, high gain, low noise, cryogenic treatment, clean headroom

$250.00 CAD

Can't find the product you're looking for?

Description

This matched pair of ECC83/12AX7 dual-triode vacuum tubes is designed for musicians, audio engineers, and hi-fi enthusiasts using compatible input and inter-stage amplification equipment. Its high-gain, low-noise characteristics suit guitar amplifiers, effects, compressors, microphones, and other tube audio devices.

The two tubes are selected for closely aligned performance, supporting consistent operation in applications that use multiple ECC83 or 12AX7 tubes. Cryogenic treatment, extensive burn-in, and testing for gain, transconductance, noise, and microphonics provide added stability, while the tonal response offers defined lows, a rich midrange, smooth highs, and clean headroom before overdrive.

Spécifications

General Specifications
Product Type: Preamp vacuum tubes
Tube Type: ECC83 / 12AX7
Configuration: Matched pair
Internal Structure: Dual triode
Base: Noval
Pin Count: 9

Heater Requirements
Parallel Heater Voltage: 6.3 V
Parallel Heater Current: 300 mA
Series Heater Voltage: 12.6 V
Series Heater Current: 150 mA

Typical Electrical Characteristics
Amplification Factor: 100
Plate Voltage: 250 V
Grid Voltage: -2 V
Plate Current: 1.2 mA
Transconductance: 1.6 mA/V
Internal Plate Resistance: 62.5 kΩ

Processing and Testing
Treatment: Cryogenic
Stabilization: Extended burn-in
Test Parameters: Gain, transconductance, noise, microphonics
