Amplifier Architecture
Amplifier Type: Class D
Channel Count: 16
Amplifier Sections: 2 independent 8-channel sections
Power Supplies: 2 dedicated power supplies
Operating Modes: Single-ended or bridged
Audio Power and Gain
Output Power at 8 Ohms: 200 W per channel at 1 kHz, 0.1% THD+N
Output Power at 4 Ohms: 400 W per channel at 1 kHz, 0.1% THD+N
Bridged Output Power at 8 Ohms: 800 W per channel at 1 kHz, 0.1% THD+N
Bridged Output Power at 4 Ohms: 1000 W per channel at 1 kHz, 0.1% THD+N
Total Output Power at 120 VAC: 2800 W, all channels driven, SE or BTL
Total Output Power at 230 VAC: 3200 W, all channels driven, SE or BTL
Peak Power: 6080 W, all channels driven, SE or BTL
Gain: 16 dB single-ended
Bridged Gain: 22 dB
Audio Performance
Frequency Response: 20 Hz to 20 kHz, +0/-0.6 dB, load-independent
Single-Ended THD+N: 0.0015% at 8 ohms, 5 W, 2 dBu
Bridged THD+N: 0.0015% at 8 ohms, 20 W, 8 dBu
Damping Factor at 100 Hz: 2340
Damping Factor at 1 kHz: 1820
Damping Factor at 10 kHz: 354
Signal-to-Noise Ratio: 126 dB, A-weighted, referenced to rated 1% THD output
Crosstalk: 96 dB, single-ended, 200 W at 8 ohms
Intermodulation Distortion: Less than 0.05%

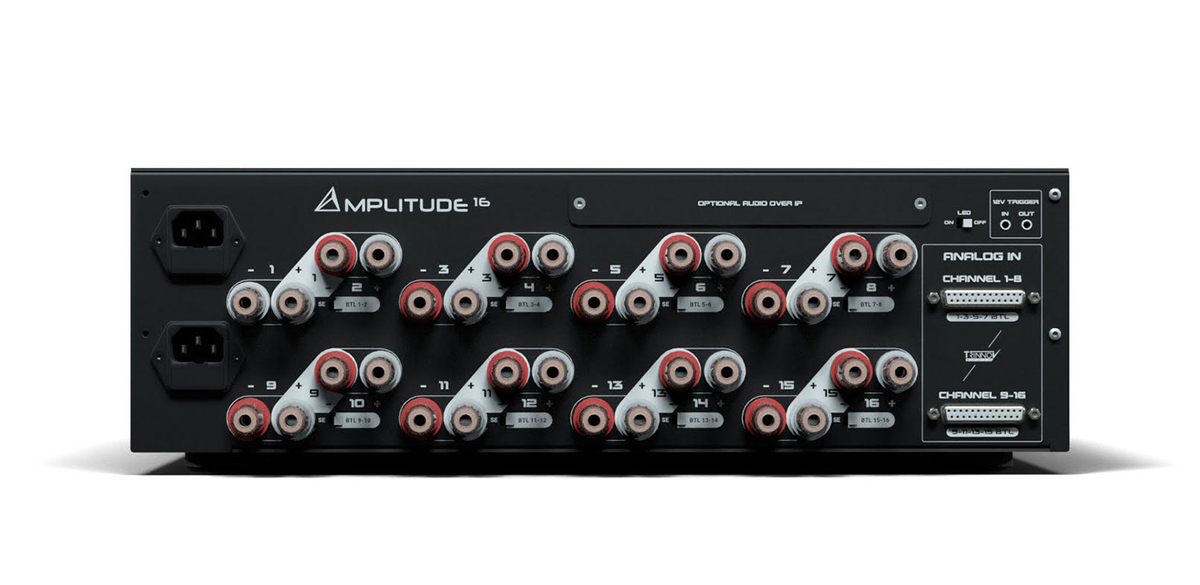

Analog Inputs and Outputs
Input Connectors: 2 x female DB25
Input Pinout: Tascam analog
Input Impedance: 47 kOhms per phase
Input Sensitivity: 6.16 V, +18 dBu
Output Connectors: 1 x 5-way binding post per channel
Optional Audio over IP
Protocol: Dante, AES67 compatible
Network Input Channels: Up to 16
Network Connectors: 2 x RJ45, primary and secondary
Maximum Output Level: +18 dBu
THD+N: -110 dB, approximately 0.0003%, 1 kHz, 0 dBFS, 20 kHz bandwidth
Dynamic Range: 115 dB A-weighted, referenced to +18 dBu
Power Supply
Power Requirement: 2 x 100-240 V, auto-selecting
Standby Power Consumption: 0.52 W
Idle Power Consumption: 125 W
Maximum Power Consumption: 2 x 2000 W
Power Inputs: 2 x IEC C14
Startup Inrush Current: 16 A for less than 100 ms per inlet
Maximum Thermal Conversion: 683 BTU/h
Mains Fuses: 2 x 10 A slow-blow
Trigger Input: 5-15 VDC steady state, mini-jack TS
Trigger Output: 8-10 VDC steady state, mini-jack TS
Dimensions and Weight
Dimensions with Rack Ears: 482 x 132 x 452 mm
Dimensions with Rack Ears: 19 x 5.2 x 17.8 in
Shipping Box Dimensions: 54 x 53 x 22 cm
Weight: 20.5 kg
Weight: 45.3 lb
Shipping Weight: 22.4 kg
Shipping Volume: 0.064 m³
