WESAUDIO

_Prometheus

$2,060.00 CAD

Description

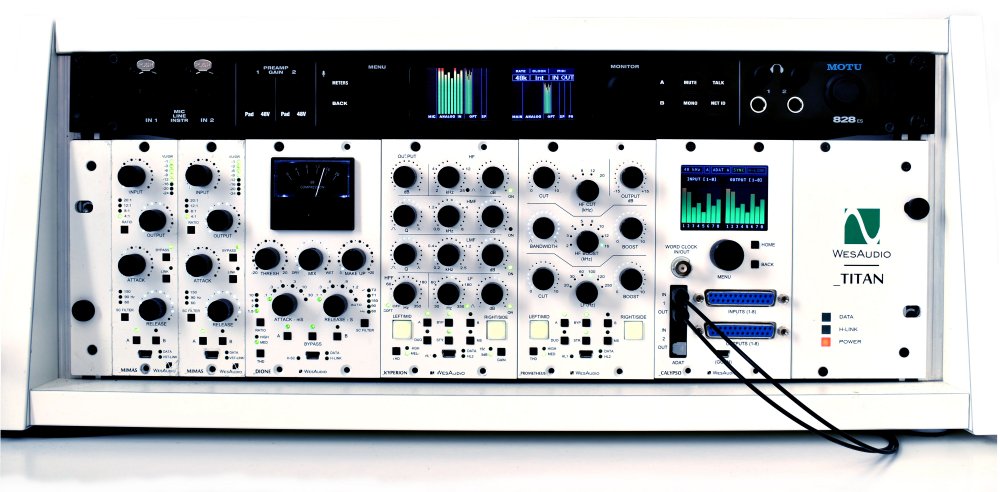

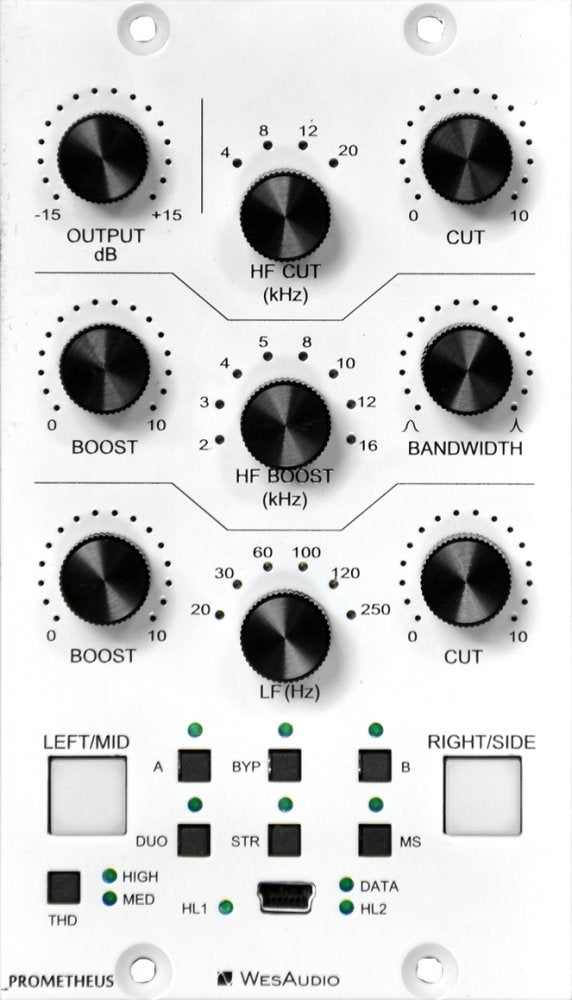

_PROMETHEUS is fully analog passive EQ with +24dBu of headroom. It features pultec-style warm sound with a lot of innovative improvements. Its modern approach to design allows instant recall of your classic vibe through very flexible plugin available in most common formats. _PROMETHEUS as all ng500 products, integrates with your DAW environment via front panel USB socket or _TITAN chassis.

Caractéristiques

+24dBu of headroom

Stereo / Dual mono / Mid/Side operation mode

Passive equalizer (Pultec-style) design based on inductors

Low frequency boost/cut - 20, 30, 60, 100, 120, 250 Hz.

High frequency boost - 2, 3, 4, 5, 8, 10, 12, 16 kHz.

High frequency cut - 4, 8, 12, 20 KHZ.

Analog inductor

Proprietary THD implementation

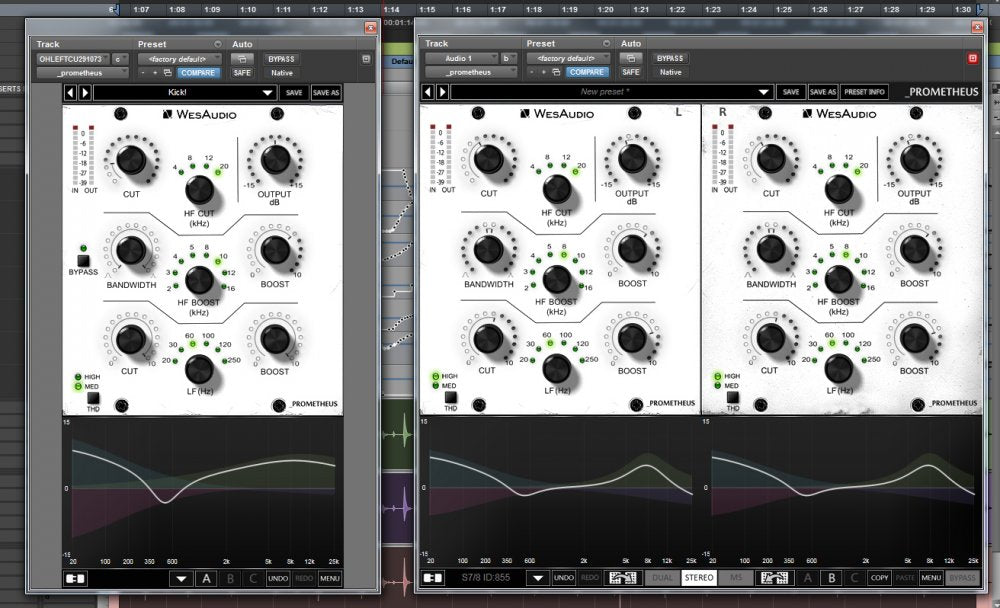

Flexible DAW/Live plug-in control for instant recall

6 touch sensitive encoders allows to record automation

True bypass

In and OUT metering with clip detection

A/B compare feature

Spécifications

Frequency response: 10Hz-150kHz (-2dB)

THD+N < 0.01% (1kHz,0dBu)

Input impedance: 10kohm

Output impedance: <100ohm

Max signal level: +24dBu

Crosstalk:< -100dB

THD (MID switch): 1%

THD (HIGH switch): 2.5%

Power consumption: 70mA per rail

Dimensions : 76x133x158mm
