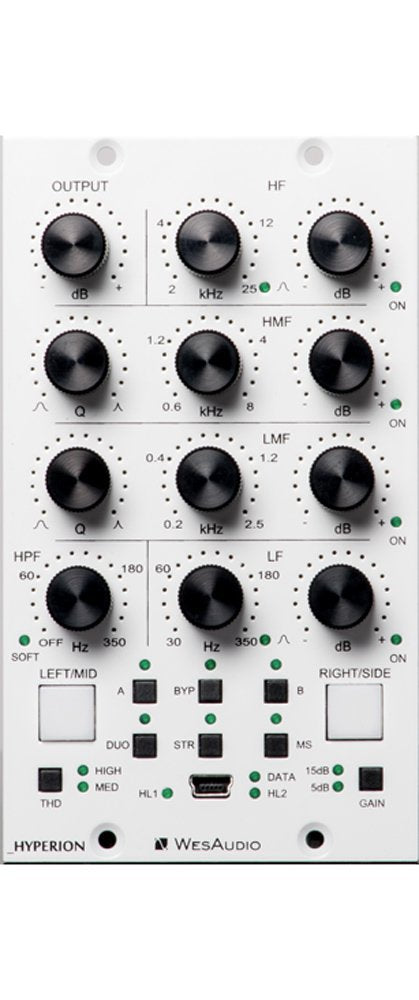

_Hyperion

+24dBu of headroom

Stereo / Dual mono / Mid/Side operation mode

4-Band EQ with switchable gain range for 5db or 15dB boost or cut per band:

High band - 2kHz to 25kHz (bell or shelf)

High-Mid band - 600Hz to 8Khz with full Q control

Low-Mid band - 200Hz to 2.5Khz with full Q control

Low band - 30 Hz to 350Hz (bell or shelf)

HPF with 12dB/Oct or 6 dB/Oct slopes

Each band features its own Bypass switch

Essentially Noiseless parameter changes

Proprietary THD implementation

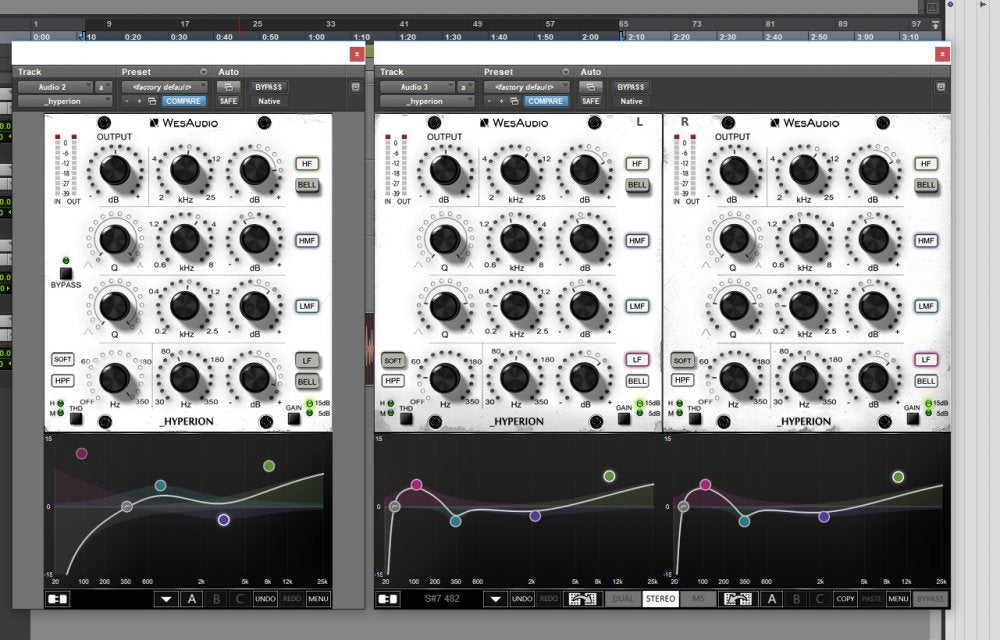

Flexible DAW/Live plug-in control for instant recall

12 touch sensitive encoders allows to record automation

True bypass

In and OUT metering with clip detection

A/B compare feature

Frequency response: 10Hz-150kHz (-2dB)

THD+N all bands gain "0": 0.003% (1kHz,0dBu)

THD+N +15dB band boost: <0.15% (1kHz,0dBu)

Input impedance: 10kohm

Output impedance: <100ohm

Max signal level: +24dBu

Crosstalk:< -100dB

THD (MID switch): 1%

THD (HIGH switch): 2.5%

Power consumption: 150mA per rail

Dimensions : 76x133x158mm

Warranty: 2 years

Unit needs to warm up for about 5 minutes before usage as its temperature

may affect some internal variables - like frequencies of each band, and very slightly gain and Q settings.

Each band can boost or cut in configurable gain mode (It affects also OUTPUT control):

15dB boost or cut in 0.25 dB steps,

5dB boost or cut in 0.083 dB steps,

Each frequency control has predefined amount of steps in logarithmic scale:

HF frequency - 256 steps,

HMF frequency - 256 steps,

LMF frequency - 256 steps,

LF frequency - 200 steps,

HPF frequency - 128 steps.
