AMS NEVE

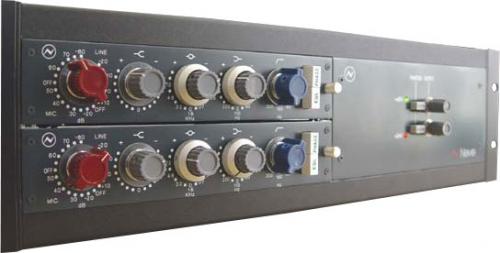

3U Rack fitted with 2 horizontal 1073 Modules

$10,950.00 CAD
Demande de devis – Réservé aux revendeurs agréés

Description

This setup features two AMS Neve 1073 modules professionally mounted in a 3U rack, delivering the unmistakable warmth and clarity of the classic 1073 design in a ready-to-use studio format. Each module is a hand-crafted recreation of the legendary 1970 Neve preamp, complete with transformer-balanced microphone and line inputs, three-band EQ, and a high-pass filter-all designed to bring that vintage analog character to vocals, instruments, or any line-level source.

Built for serious recording environments, each 1073 module provides up to 80 dB of mic gain in precise 5 dB steps, with a wide, musical frequency response and incredibly low distortion (≤0.07% from 50Hz to 10kHz at 20dBu). The output stage is transformer-balanced and capable of delivering >26 dBu into 600 ohms, ensuring headroom and punch. Whether you're tracking vocals, reamping instruments, or shaping tone with its musical EQ curves, this 3U rack-mounted dual 1073 setup brings vintage analog mojo with modern reliability-perfect for studios, production houses, or high-end mobile rigs looking to capture sound with unmatched authenticity.

Caractéristiques

Classic Microphone Preamps: Includes two legendary 1073 modules for warm, musical mic amplification.

3-Band Equalizers: Each module offers three bands of EQ for shaping sound with classic character.

High-Pass Filters: Filters out low-end rumble and unwanted noise during recording or mixing.

Transformer-Balanced Inputs and Outputs: Both mic and line inputs, as well as outputs, are transformer balanced and earth-free for clean, isolated signal paths.

Handcrafted Build: Built by hand to match the original 1970 design for authentic performance.

Neve Transformers: Uses Neve-designed, hand-wound transformers for iconic analog tone.

Rack-Mounted Design: Housed in a 3U rack for easy integration into studio setups.

Spécifications

General Specifications:

Rack configuration two 1073 modules in 3U horizontal rack

Module type AMS Neve 1073 classic transformer mic preamp and EQ

Rack size 3U

Microphone Input:

Gain range 80 dB to 20 dB in 5 dB steps

Transformer balanced and earth free

Line Input:

Input impedance 10000 ohms bridging

Gain range 20 dB to minus 10 dB in 5 dB steps

Transformer balanced and earth free

Output:

Maximum output greater than 26 dBu into 600 ohms

Transformer balanced and earth free

Equalization:

Three EQ bands

High pass filter included

EQ out frequency response plus minus 0.5 dB from 20 Hz to 20 kHz minus 3 dB at 40 kHz

Distortion:

Not more than 0.07 percent from 50 Hz to 10 kHz at 20 dBu output into 600 ohms

Measured with 80 kHz bandwidth

Construction and Design:

Hand crafted to original 1970 design

Neve designed hand wound transformers

Classic transformer mic amp design
