TELEFUNKEN  |  Code-barres: SYTM-040

U48 Stereo Set

$29,895.00 CAD

Description

The TELEFUNKEN U48 Stereo Set is a premium, frequency- and gain-matched pair of the legendary TELEFUNKEN U48 tube microphones, designed for the highest level of stereo recording precision. This set is ideal for capturing expansive and immersive soundscapes in orchestral, chamber, ensemble, and ambient recording applications where tonal balance, depth, and phase alignment are critical.

Each U48 microphone in the set features the iconic BV8 output transformer, M7 center-terminated capsule, and VF14k vacuum tube, faithfully preserving the original's celebrated sound signature which is marked by rich low-end response, punchy midrange, and smooth detail. With cardioid and figure-8 polar patterns, the U48 Stereo Set opens up a wide range of stereo techniques such as Blumlein, mid-side (M/S), and spaced pair recording.



Spécifications

General Specifications

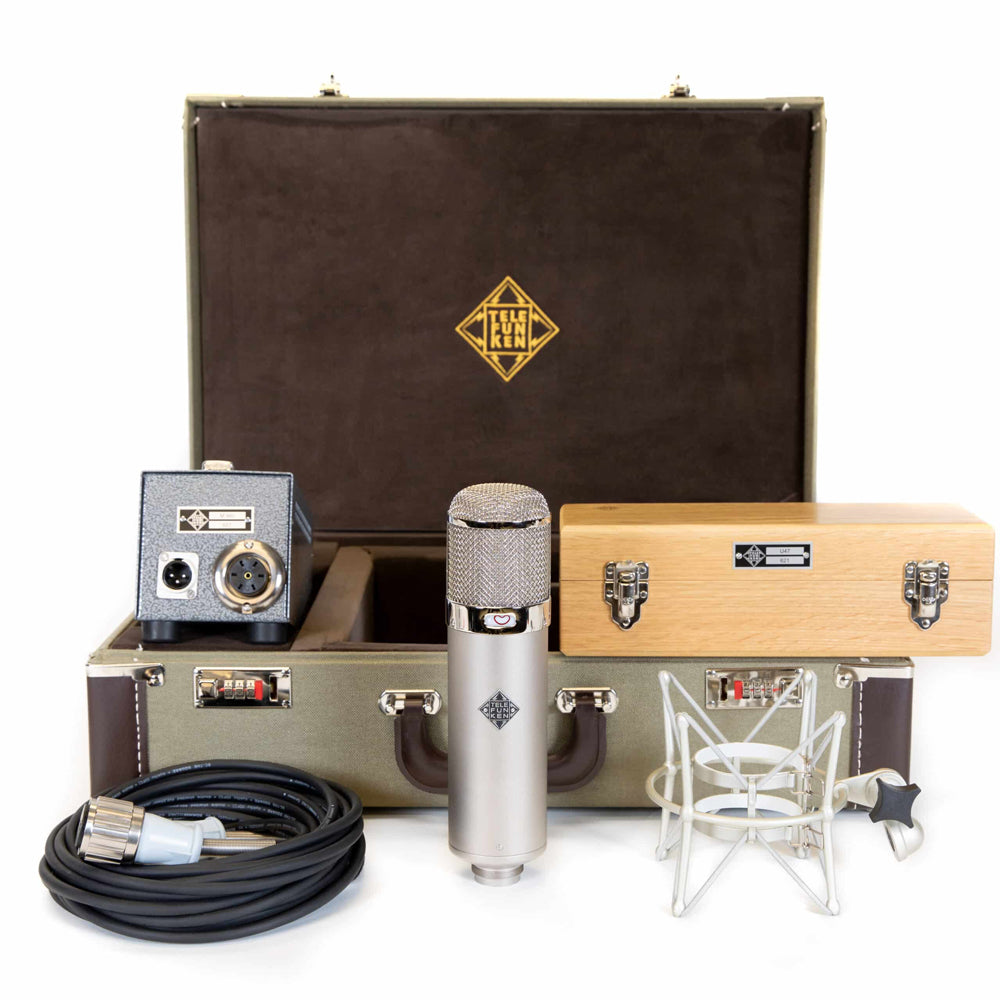

System Type: Matched Stereo Set of Vacuum Tube Condenser Microphones

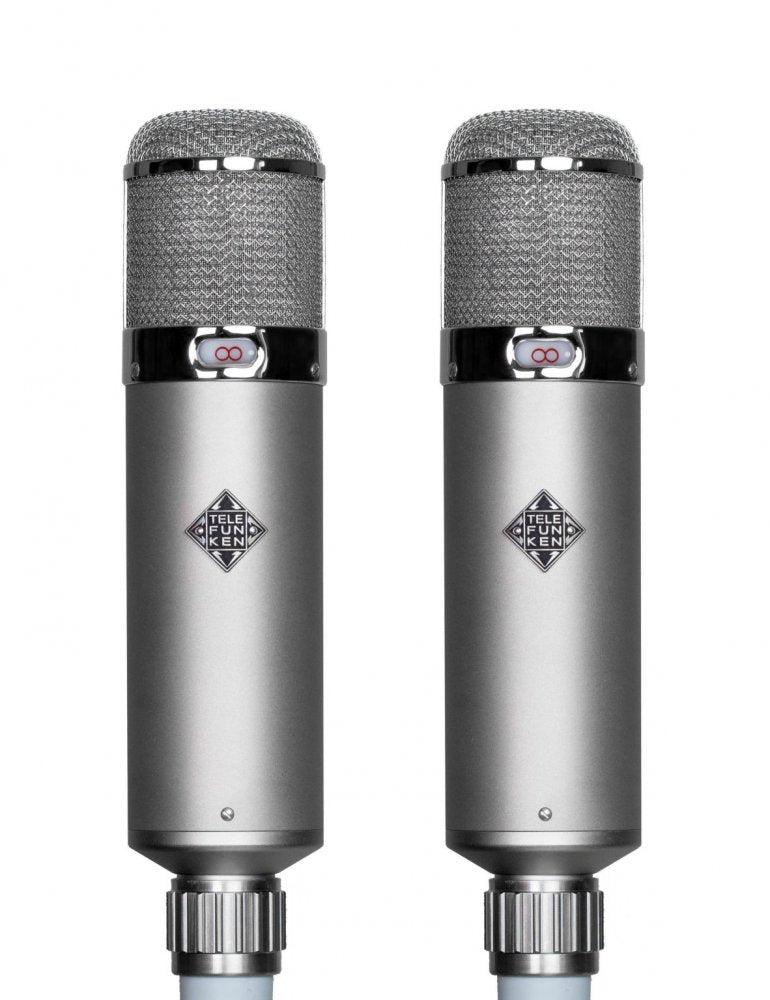

Included Microphones: 2 x Matched TELEFUNKEN U48
Polar Patterns: Cardioid, Figure-8

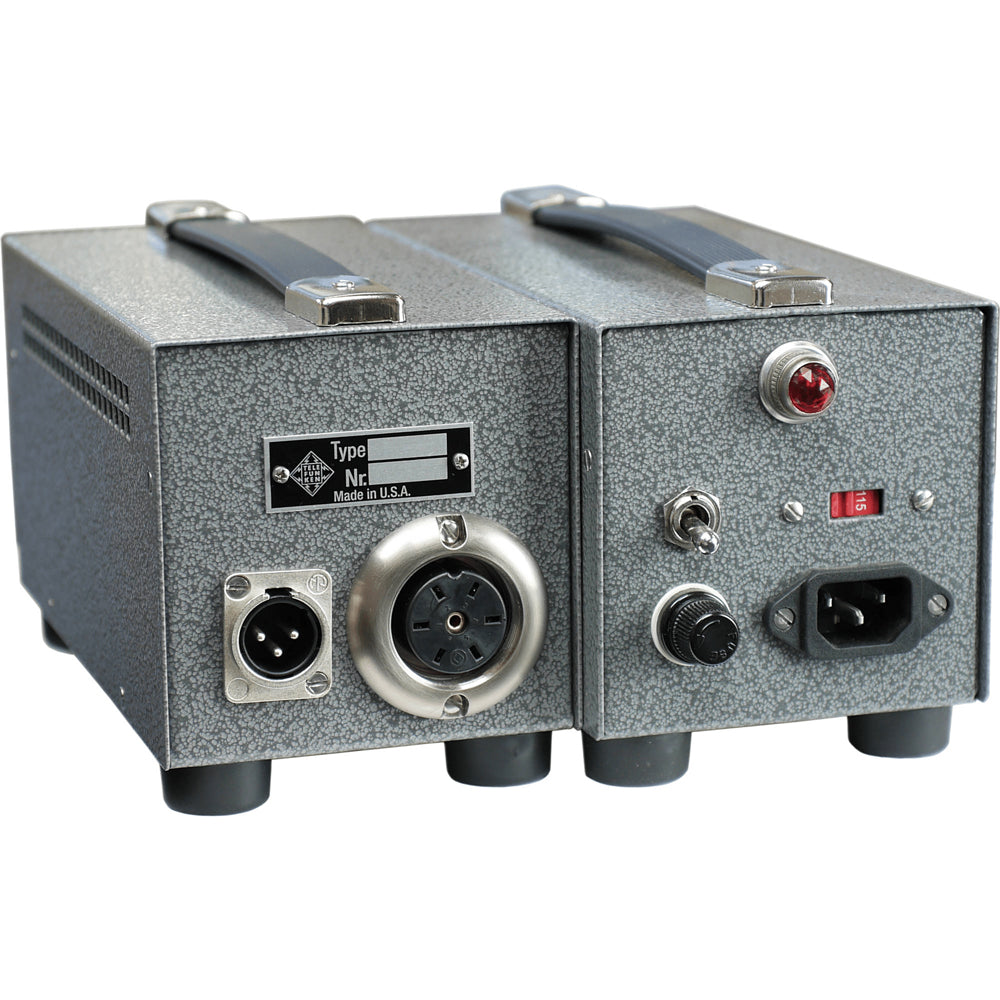

Power Supply: M 940HS Dual Microphone Power Supply

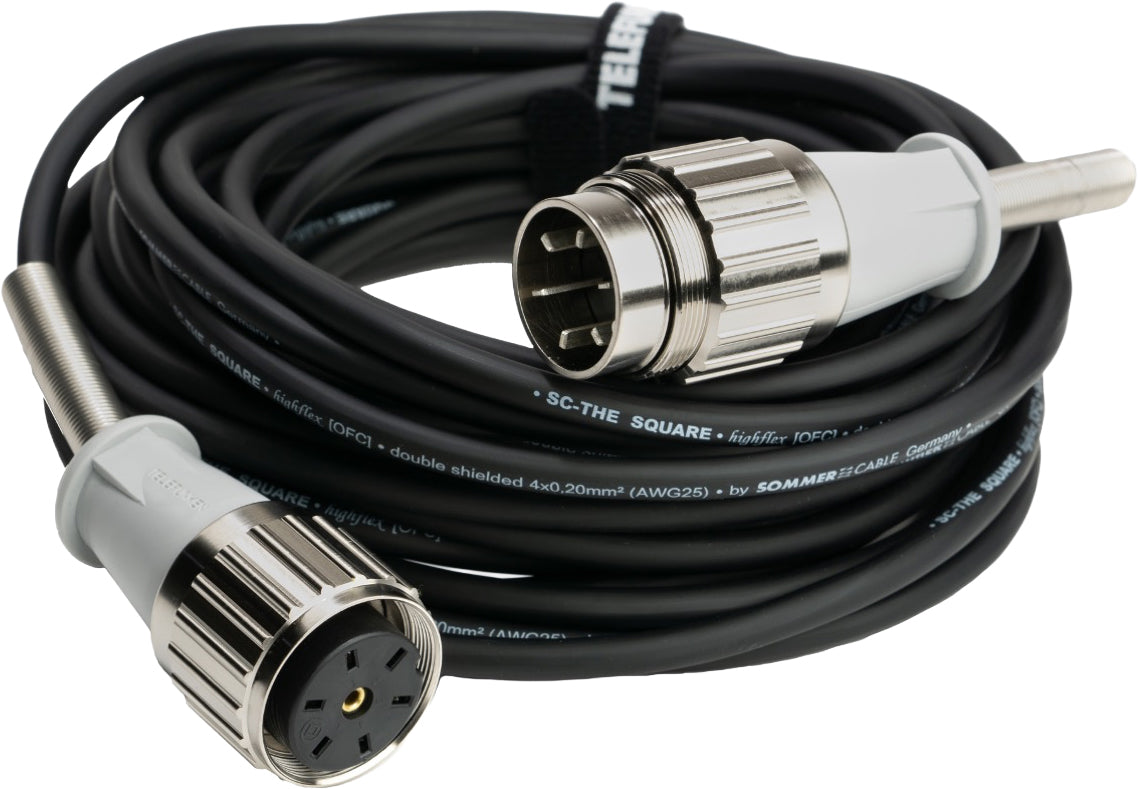

Cables: 2 x M 840TH Sommer Tube Microphone Cables – 10m each

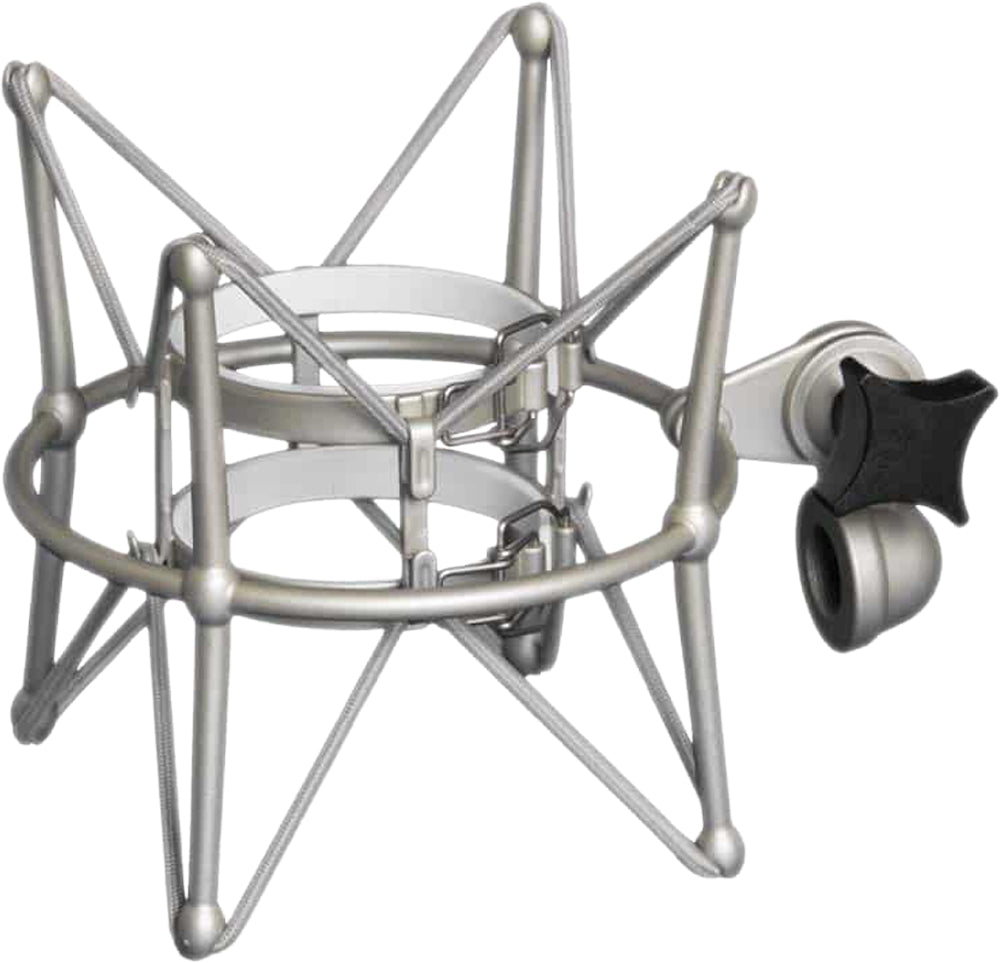

Shock Mounts: 2 x M 740 Elastic Shock Mounts
Microphone Storage: 2 x WB40 Wooden Microphone Boxes

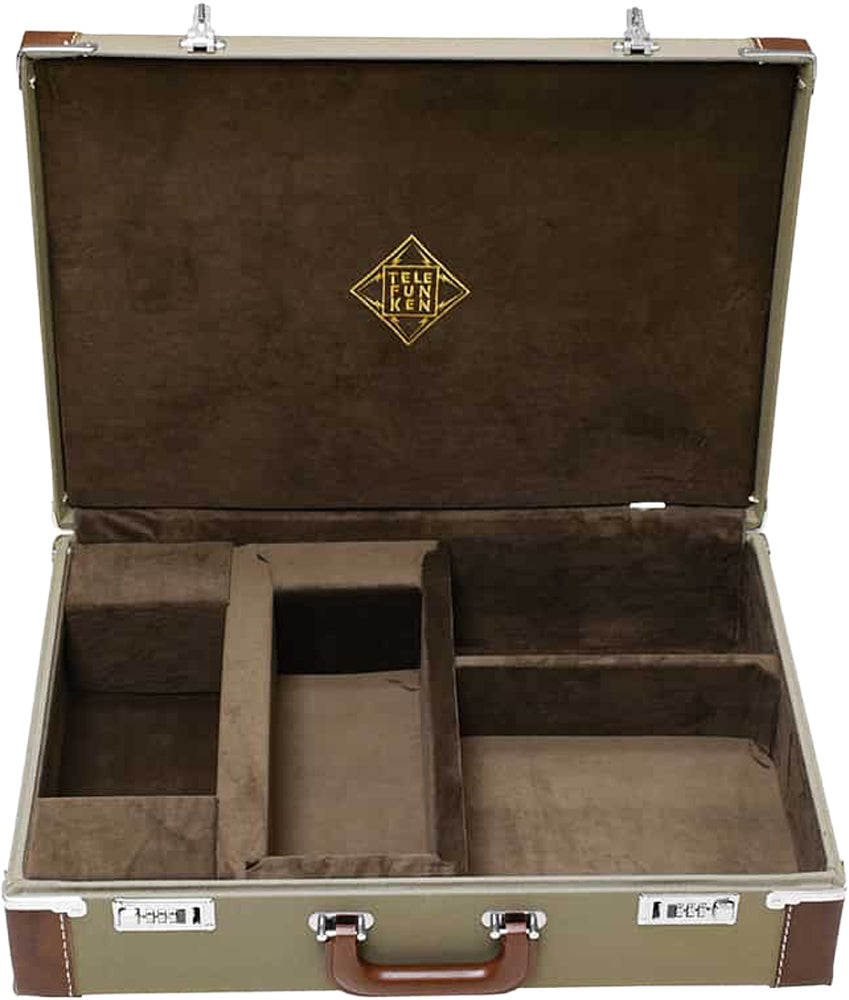

Transport Case: FC40S Locking Flight Case

Microphone Specifications (Each U48)
Microphone Type: Large Diaphragm Vacuum Tube Condenser
Capsule: TELEFUNKEN Elektroakustik M7 – Center-Terminated
Tube: TELEFUNKEN Elektroakustik VF14K
Transformer: TELEFUNKEN Elektroakustik BV8
Frequency Range: 20 Hz – 20 kHz (±3 dB)
Sensitivity: 24.5 mV/Pa (±1 dB)
THD @ 1 kHz, 1 Pa (Amplifier): < 0.3%
Output Impedance: 200 Ω
Maximum SPL (1% THD): 127 dB
Signal-to-Noise Ratio: 85 dBA
Self-Noise: 9 dBA

Physical Specifications (Each U48)
Dimensions: 240 mm (L) x 60 mm (Diameter)
Weight: 620 g

UPC: 899051002725
