TRIAD-ORBIT

Stereo Bar

$465.00 CAD

Description

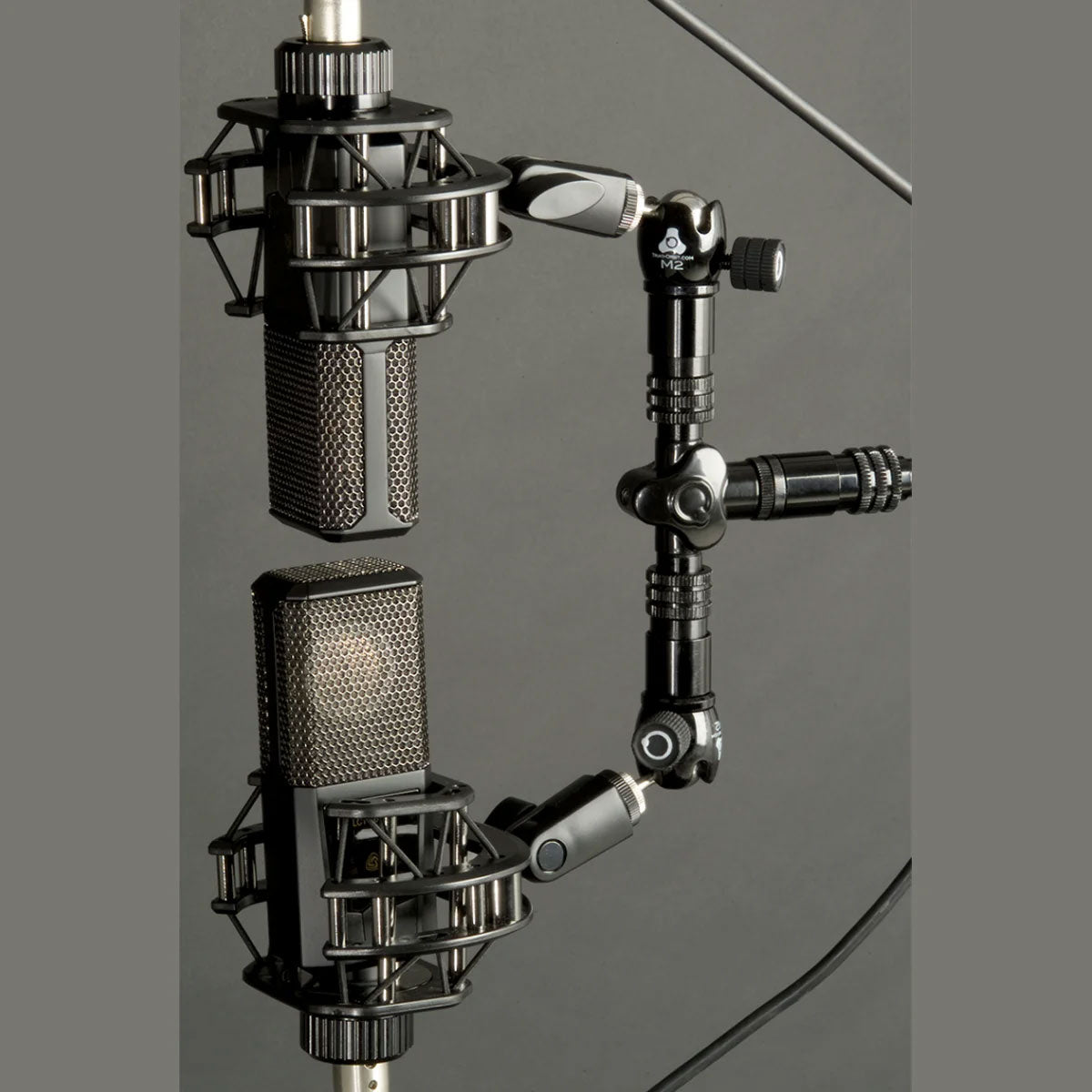

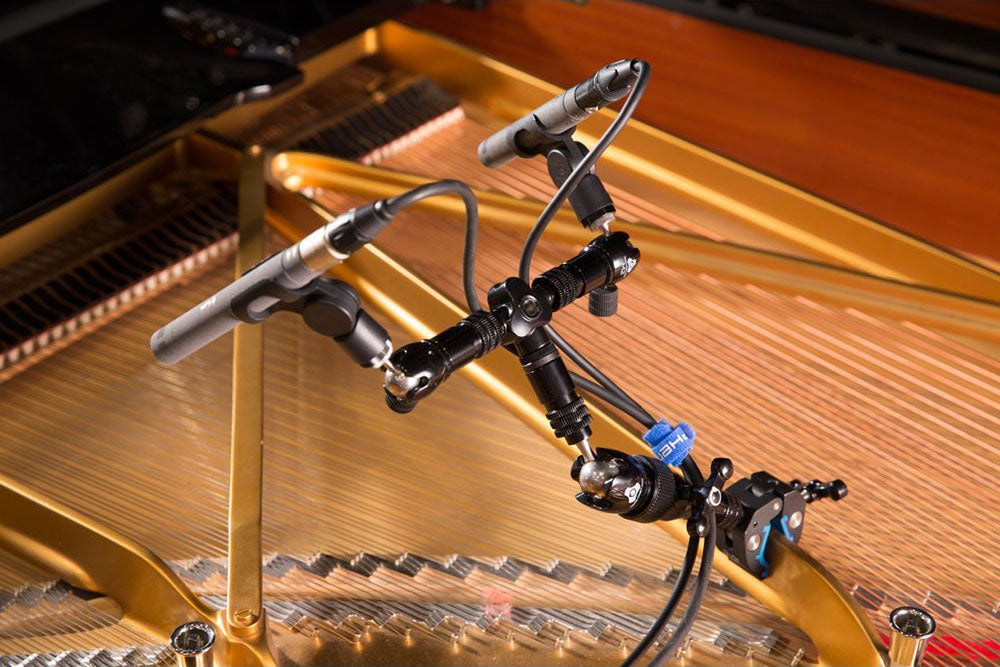

The Triad-Orbit Stereo Bar is a key accessory in the Triad-Orbit modular support system, designed to provide flexible and stable support for multiple microphones in stereo configurations. Whether you're setting up for spaced pair, XY, ORTF, or other stereo recording techniques, this bar offers a highly adjustable and rock-solid mounting solution that integrates seamlessly with other Triad-Orbit components.

Built around the IO (Interchangeable Orbit) quick-change system, the Stereo Bar allows for fast and secure repositioning of microphones without needing to unscrew or reset mounts. It’s designed to work in harmony with Triad-Orbit's stands, booms, and adaptors, giving users the ability to build custom rigs that suit their studio or live environment. As part of a larger ecosystem, the Stereo Bar is not just a static piece of hardware, it’s a customizable tool that evolves with your workflow.

If you're building a personalized creative space, this Stereo Bar can serve as the foundation for more complex microphone arrays or even integrate with lighting or camera setups, thanks to the system’s modular versatility. Let me know if you'd like a description of a complete system build using the Stereo Bar and other Triad-Orbit components!

Spécifications

General Specifications

System Type: Custom Triad-Orbit™ IO-Equipped Support System

Configuration: 1 x iO-Vector, 2 x M3 Long Stem Adapters, 1 x IO-RA (Right Angle Adapter)

Workflow Use: Modular desktop or boom-mounted system for mounting multiple AV devices with flexible positioning

Compatibility: Triad-Orbit iO system, 5/8"-27 threads, 1/4"-20 and 3/8" devices with adapter

iO-Vector (Utility Bar) Specifications

Mounting Points: 4 x iO connection points

Function: Multi-point stereo utility bar for 3D positioning of devices

Quick-Change Coupler: Includes iO-R38

Width: 8 cm / 3.25 in

Product Weight: 0.3 kg / 0.75 lb

Dimensions: 10 × 7 × 2 in

M3 Long Stem Adapter (x2) Specifications

Mounting System: Compass Point™ ball swivel with extended 1.5" stem

Range of Motion: 360° rotation with deep crenel for expanded tilt angles

Thread Size: 5/8"-27

Length: 12 cm / 4.75 in

Max Recommended Weight Capacity: 8.5 kg / 18.75 lb

Product Weight (each): 0.2 kg / 0.5 lb

Dimensions (each): 8 × 4 × 2 in

iO-RA (Right Angle Adapter) Specifications

Mount Type: 90° right-angle iO connector for compact re-orientation of attached accessories

Rotation: 360° rotational range via iO quick-change system

Compatibility: All iO-equipped components
