ELYSIA  |  Code-barres: 994060055

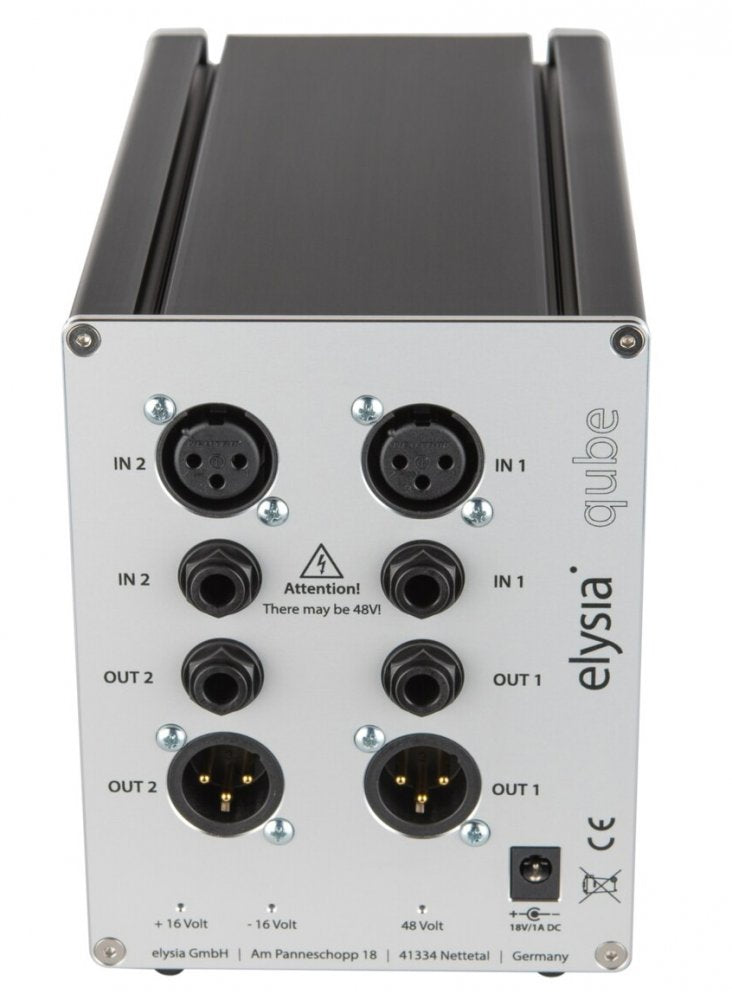

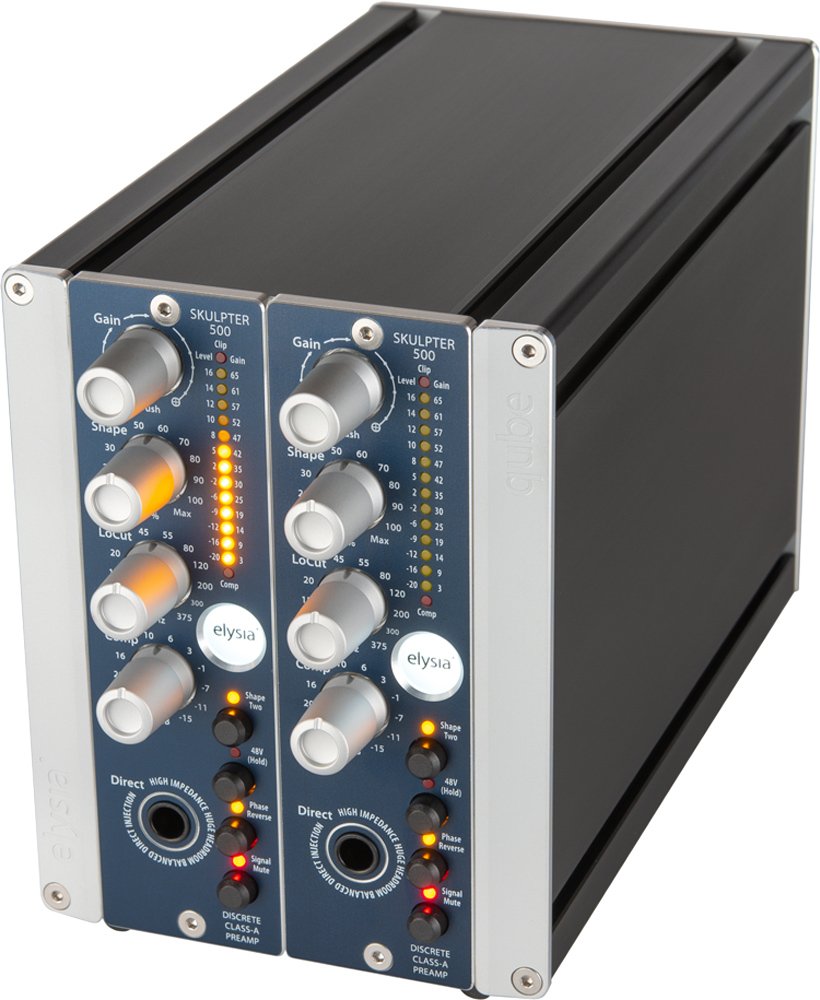

Skulpter2 qube

$2,785.00 CAD
Demande de devis – Réservé aux revendeurs agréés

Description

A fine fusion cuisine box with the double power of our creative talent the elysia skulpter 500. This is not only boring Preamp x2. The elysia skulpter is a flexible recording toolbox that meets the whole flavor of creativity including high-class sound-shaping possibilities with filter and saturation stages plus compressor. It's highly recommended to put this qube in front of your DAW for all your excellent instrument and vocal recordings. With only a few tweaks you will get the highest audio quality for your music

Way more than just a preamp, the skulpter 500 is a complete recording solution - everything you'll ever need in front of your DAW.

Spécifications

Total gain range:

3 - 65 dB in 1.5/2 dB steps

Frequency response

@ 3 dB gain: 10 Hz - 170 kHz (-3 dB)

@ 29 dB gain: 10 Hz - 170 kHz (-3 dB)

THD+N

@ +6 dBu out level, 3 dB gain, 20 Hz - 22k Hz: 0.007%

@ +6 dBu out level, 29 dB gain, 20 Hz - 22 kHz: 0.007%

Noise floor

@ 3 dB gain, 20 Hz - 20 kHz (A-weighted): -97 dBu

@ 29 dB gain, 20 Hz - 20 kHz (A-weighted): -93 dBu

Common Mode Rejection Ratio

@ +6 dBu out level, 29 dBu gain, 1 kHz: 87 dB

@ +6 dBu out level, 29 dBu gain, 10 kHz: 69 dB

Maximum level

Mic Input: 19 dBu

DI Input: 19 dBu

Output: 21 dBu

Impedance

Mic Input: 13.6 kohm

DI Input: 1 megohm

Output: 62 ohm

Power Consumption

Total: 116 mA
