API  |  Code-barres: T12

Select T12

$2,920.00 CAD

Description

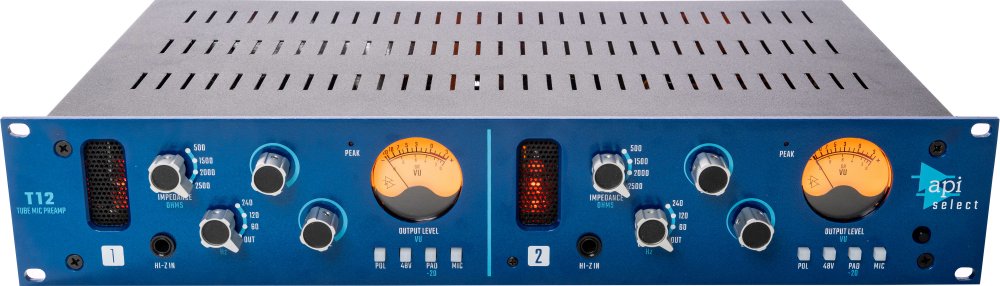

The API Select T12 is a classic 2-channel, all-tube, Class-A microphone preamplifier designed with API's proprietary AP2516 transformer in the input stage and a custom API transformer on the output stage. Built with 12AT7WC and 12BH7 dual-triode vacuum tubes, the T12 represents a new and exciting variation in API's preamplifier technology and provides the user with unique tonal options. The T12 can handle a wide range of production applications including stereo operation. Carefully engineered to deliver classic tube performance and sound, the T12 delivers API's famous warmth, punch and clarity in an all-new way and features our industry-exclusive Five Year Warranty.

Spécifications

Input Impedance: Microphone: 500W, 1500W, 2000W, & 2500W (variable) - HI-Z: 500kW
Output impedance: 75 ohms, can drive 600 ohm loads
Maximum input level: +24dBu with -20dB PAD engaged and gain set to 20dB
Gain Range: 0db to +70dB
Maximum output level: +24dBu
SNR: 98dB
Frequency Response: 20Hz - 30kHz (+0dB / -1dB)
Power Consumption: 40W
Size: 19" x 3.5" x 12" Deep
Size (Boxed for Shipping): 21" x 9" x 15"
Actual Weight: 14 lbs.
Shipping Weight: 17 lbs.
