API  |  Code-barres: 3124V

3124V

$4,385.00 CAD

Description

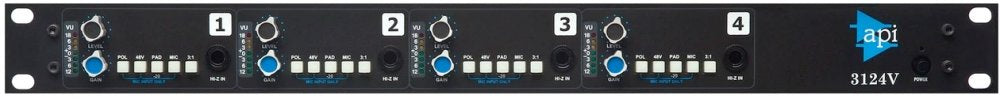

Additionally, the 3124V offers Variable Output Level Control and switchable 3:1 output transformer selection. The unit has an internal 48-volt phantom power supply, which is switchable for each channel, as well as -20dB pad switches that affect both the mic and Hi-Z instrument inputs, both located on the front panel.

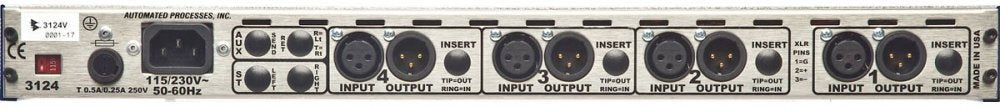

The 3124V also features up to 65dB of gain. Additionally, the Hi-Z front panel inputs feed directly to the op amps, which allow a low level input such as a guitar or bass to be amplified without a matching transformer or direct box. These Hi-Z inputs can take levels as high as +20dBu, making them perfect for keyboards and other high level devices. The mic preamp outputs are on rear panel male XLR connectors.

Spécifications

Input Impedance:

1500 Ohms Mic, 470 K Ohms Un-Balanced, HI-Z in

Output Impedance:

Less than 75 Ohms Channel Outputs

Nominal Levels:

XLR Channel Output +4 dBu

Stereo Output Level:

Unbalanced: nominal -2, Balanced: +4

Frequency Response:

+0, -5, 10 Hz to 20 kHz (-.5 at 10 Hz)

Noise EIN:

-129 Mic, -125 Un-Bal. Actual

Measured Noise:

Better than -91 dBm / below Nominal +4.

Distortion:

All Outputs at +4 out, .03%, at +22, .09% Max

Gain Range:

150 Ohms Input 10 dB Min., 65 dB Max (inc. PAD), Un-Bal. Input 14 dB Min., 50 dB Max

VU Meter:

Calibrated for XLR Outputs, OVU=+4 dBu, (-12, -6, -3, 0, +3, +6, +18)

Controls

GAIN

PAD (20 dB)

48 Volts

POL (polarity)

MIC (mic/un-bal)

VU

AC

Power Consumption, Quiescent:

19.2 Watts

Size:

19" X 1.75" (1U) X 11" Deep

Size (Boxed for Shipping):

23.25" X 6.5" X 16.5"

Actual Weight:

10.38 lbs.

Shipping Weight:

14.06 lbs
