API  |  Code-barres: 3122V

3122V

$2,915.00 CAD
Demande de devis – Réservé aux revendeurs agréés

Description

The 3122V provides 2 channels of API's signature analog sound and features the same legendary circuit design found in the 3124V and 3124MV, as well as the 312, 512V, and 512c mic preamps. In addition to the familiar combination of 2520 Op Amps and proprietary output transformers that give all API mic preamps that punch and massive headroom, the 3122V also includes front and rear panel XLR and ¼" inputs (conveniently selectable on the faceplate), a fixed-frequency HP filter, GAIN and the popular Variable Output Level control, as well as 48V, POL, and PAD. Rounding out the expansive feature set are the 3:1 Output Transformer Tap and 2 stunning analog VU meters with a separate peak LED.

Spécifications

Input Impedance:

Mic: 1500 Ohms

Hi-Z: 470 kOhms unbalanced

Output Impedance: Less than 75 Ohms, transformer balanced
Nominal Levels: XLR channel output: +4 dBu
Frequency Response: +/- 0.5 dB, 20 Hz to 40 kHz
SNR:

Mic: -128 dB

Hi-Z actual: -106 dB

Gain Range:

Mic input: 14 dB min., 68 dB max (inc. pad)

Hi-Z: -6 dB min., 48 dB max (inc. pad)

Metering:

VU calibrated for XLR output, 0VU = +4 dBu

PEAK LED calibrated to +18 dBu at 312 amp output

Connections:

Front: two female mic input XLRs, two Hi-Z instrument inputs

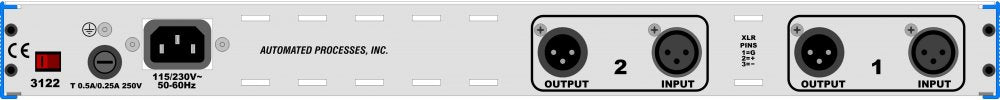

Rear: two female mic input XLRs, two male line output XLRs

Power Consumption, Quiescent: 8 Watts
Size: 19" X 1.75" (1U) X 11" Deep
Size (Boxed for Shipping): 23.25" X 6.5" X 16.5"
Actual Weight: 9 lbs.
Shipping Weight: 13 lbs.
