AMS NEVE  |  Code-barres: 1073LBEQ

1073LBEQ

$1,595.00 CAD

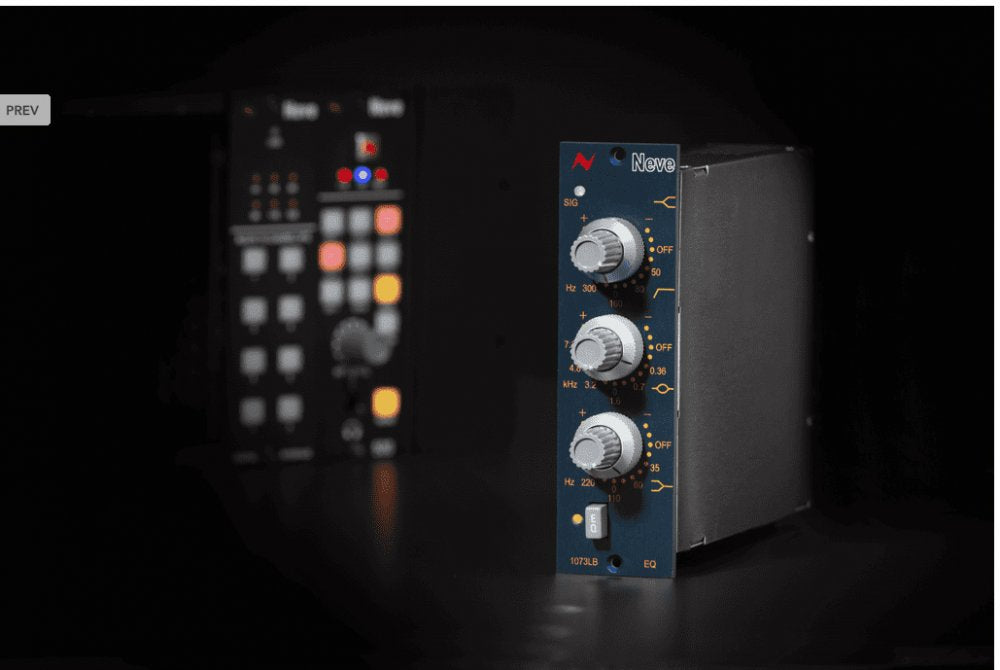

Description

Launched in 1970, the original Neve 1073 module is perhaps the world's most famous and desirable microphone preamp and EQ for recording vocals and instruments of all types. The first choice of countless leading producers and artists, the 1073 delivers the unique Neve sound featured on many of the most famous recordings of the past 40 years. The big, punchy sound of the 1073 classic complements any musical genre - from rock to pop, hip hop to rap, thrash to classical.

Crafted in England by Neve engineers, the 1073LBEQ mono EQ module retains the unique sonic characteristics of the original 1073 classic EQ by using the same EQ circuit architecture and matching components. And it delivers it in a modern and portable form-factor that professional producers and engineers demand.

With new features like a signal presence LED and Neve's cleverAudio Processing Insert design, the 1073LBEQ takes your 500-series rack to the next level.

Simply install into an empty slot in your compatible 500-series rack, connect your line level signals and inject the legendary Neve EQ sound into your audio creations. And it's the perfect pairing for the incredible Neve 1073LB microphone preamp module. The 1073LBEQ module can be inserted between the input and output stages of the 1073LB module, creating a true 1073 classic audio path.

Spécifications

EQ Section

High Pass Filter:

18dB per octave slope.Switchable between 50Hz, 80Hz, 160Hz or 300Hz

High Frequency:

Smooth ±16dB of fixed frequency shelving at 12kHz

Mid Frequency:

Smooth ±18dB of peaking, fixed Q with selectable centre. Frequencies of: 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz or 7.2kHz

Low Frequency:

Smooth ±16dB shelving with selectable frequencies: 35Hz, 60Hz, 110Hz or 220Hz

Frequency Response (EQ out):

Typically ±0.5dB 20Hz to 20kHz

Noise (EQ out):

-86dB 20Hz to 20kHz filter (-80dB with EQ in)

Signal presence range:

-25dB to +23dB (green), +24dB and above (red)

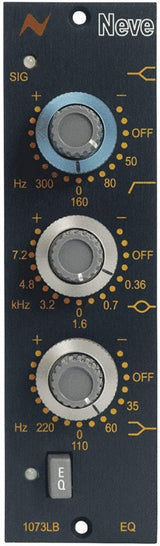

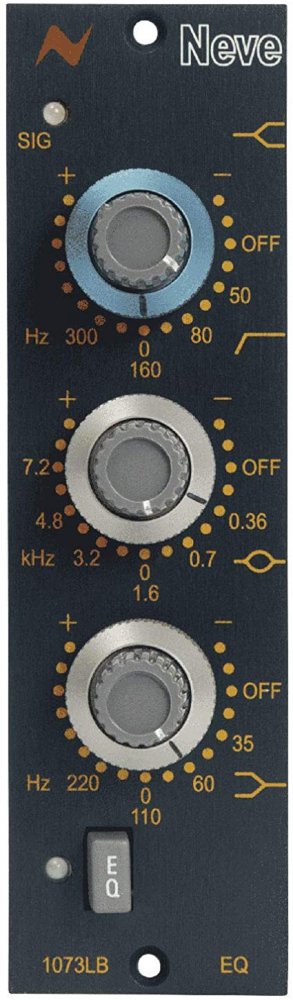

Controls

Signal presence indicator

High Pass Filter selector

High Frequency rotary control

Mid Frequency Rotary controls

Low Frequency rotary controls

EQ In/Out button with LED indicator

Dimensions

Width:

38mm (1½ inches)

Height:

132mm (5¼ inches)

Depth (excluding front panel controls & rear connector):

145mm (5¾ inches)

Approx. Weight:

650g (1½ pounds)

1073LBEQ Module requirements:

Rack:

Compliant LunchboxTM rack with integral PSU and external audio connections

Available Rack slots:

Single LunchboxTM rack slot required for each 1073LBEQ moduleTwo adjacent LunchboxTM rack slots required for each 1073LB/1073LBEQ module configuration when the modules are used together in Audio Processing Insert mode.

EAN: 5060834530017
