MAMMOTH CABLES

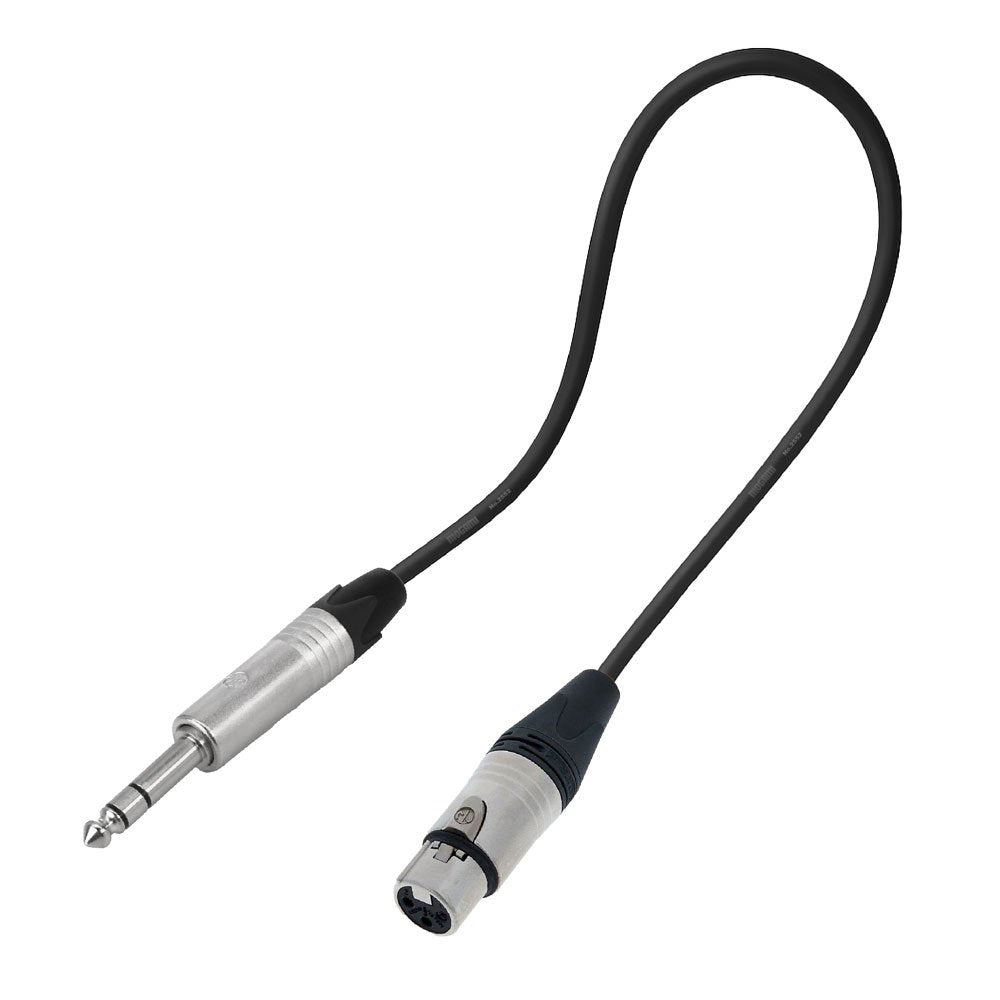

MM2552 TRS-XLRF 10'

TRS-XLR female audio cable, 10' length, Mogami W2552 cable, Neutrik NP3X 1/4" TRS plug, Neutrik NC3FXX 3-pin female XLR connector

$52.95 CAD

17 in stock

Can't find the product you're looking for?

Description

The Woolly Mammoth Cable MM2552 TRS-XLRF is a balanced audio cable made with Mogami W2552 microphone cable, a Neutrik NP3X 1/4-inch TRS plug, and a Neutrik NC3FXX 3-pin female XLR connector. Mogami W2552 combines a compact profile with an extremely flexible rubber-like PVC jacket designed to resist abrasion and rough handling. Its XLPE insulation helps minimize heat shrinkage during soldering, supporting a clean and durable assembly for studio, stage, broadcast, audio/visual, and other professional audio applications.

The Neutrik NP3X features a slim 14.5 mm shell for use in high-density jackfields, a precision-machined one-piece tip contact, and chuck-style strain relief for reliable cable retention. The NC3FXX female XLR connector uses a rugged nickel-plated zinc diecast shell, silver-plated contacts, an improved solid metal latch, additional ground spring contacts, and chuck-style strain relief for dependable performance under frequent use. This TRS-to-female-XLR configuration is well suited for connecting compatible balanced equipment such as mixers, audio interfaces, patch bays, processors, amplifiers, and other professional audio devices.

Specifications

General Specifications
Cable Type: Balanced TRS to XLR audio cable
Connector Configuration: 1/4 in TRS male to 3-pin XLR female
Cable Length: 10'
Signal Type: Balanced
Conductors: 2
Termination: Solder contacts

Cable Construction
Cable Type: Low-impedance balanced microphone cable
Insulation: XLPE
Jacket Material: Rubber-like PVC
Cable Flexibility: Extra flexible
Abrasion Resistance: High
Application: Professional audio, studio, field, audio/visual and industrial audio

TRS Connector
Connector Type: 1/4 in professional TRS phone plug
Connector Gender: Male
Connector Poles: 3
Contact Material: Brass (CuZn39Pb3)
Contact Plating: 2 µm nickel
Shell Material: Zinc diecast (ZnAl4Cu1)
Shell Plating: Nickel
Insert Material: Polyamide PA 6.6, 30% glass reinforced
Bushing Material: Polyacetal (POM) + PU
Strain Relief Material: Polyacetal (POM)
Strain Relief Type: Chuck
Shell Width: 14.5 mm
Compatible Cable Diameter: 4–7 mm
Maximum Wire Size: 1 mm² / 18 AWG

XLR Connector
Connector Type: 3-pin XLR cable connector
Connector Gender: Female
Contact Material: Bronze (CuSn8)
Contact Plating: 2 µm silver
Shell Material: Zinc diecast (ZnAl4Cu1)
Shell Plating: Nickel
Insert Material: Polyamide (PA66)
Boot Material: Polyurethane
Strain Relief Material: Polyacetal (POM)
Strain Relief Type: Chuck
Compatible Cable Diameter: 3.5–8.0 mm
Maximum Wire Size: 2.5 mm² / 14 AWG
Locking Type: Latch lock

Electrical
TRS Dielectric Strength: 1 kVDC
TRS Insulation Resistance: >2 GΩ initial
TRS Rated Voltage: <50 V
XLR Capacitance Between Contacts: ≤4 pF
XLR Contact Resistance: ≤3 mΩ
XLR Dielectric Strength: 1.5 kVDC
XLR Insulation Resistance: >10 GΩ initial
XLR Rated Current per Contact: 16 A
XLR Rated Voltage: <50 V

Mechanical
TRS Connector Lifetime: >1,000 mating cycles
XLR Connector Lifetime: >1,000 mating cycles
XLR Insertion Force: ≤20 N
XLR Withdrawal Force: ≤20 N

Environmental
TRS Operating Temperature: -20 °C to +65 °C
TRS Standard Compliance: IEC 60603-11 / EIA RS-453
TRS Solderability: IEC 68-2-20 compliant
XLR Operating Temperature: -30 °C to +80 °C
XLR Protection Class: IP40
XLR Flammability: UL 94 V-0
XLR Standard Compliance: IEC 61076-2-103
XLR Solderability: IEC 60068-2-20 compliant
