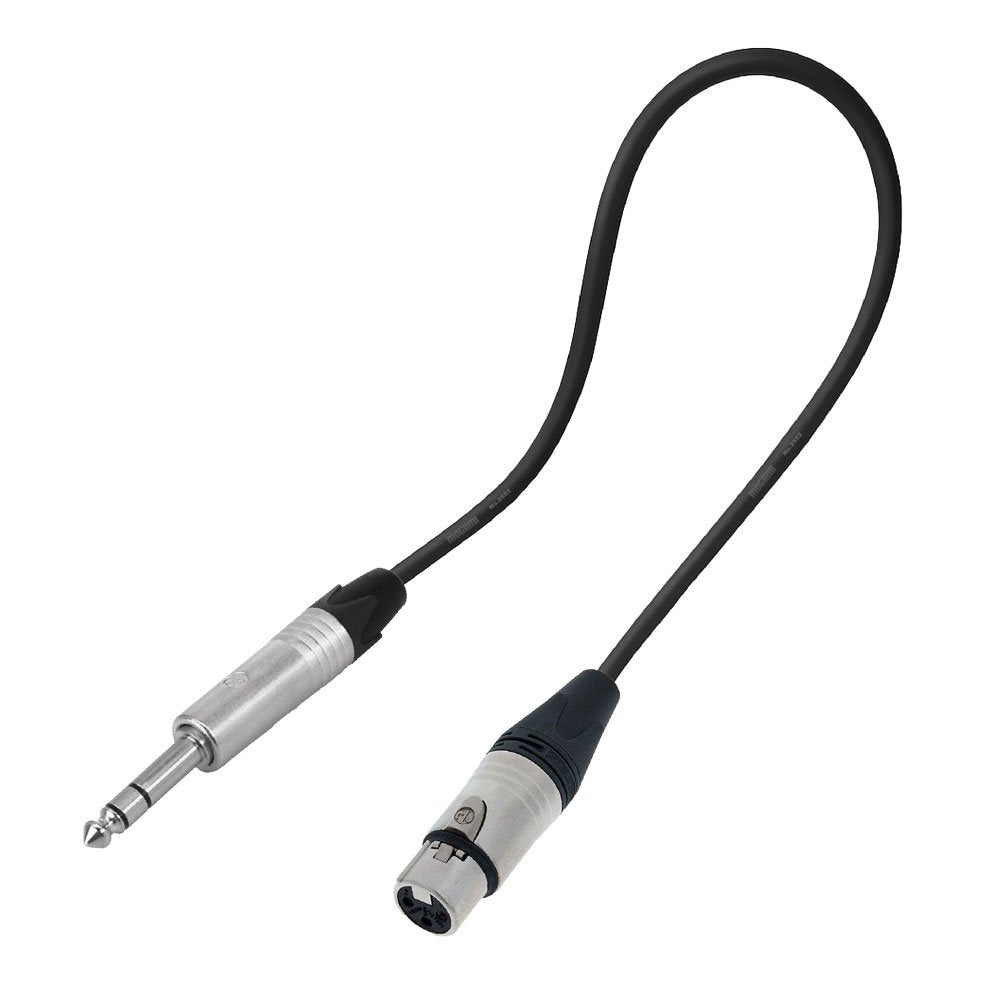

MM2552 TRS-XLRF 02'

Made with Mogami General Purpose W2552 Mic Cable and Neutrik TRS to Female XLR Connectors. Length: 2 feet

$43.95 CAD

17 in stock

Can't find the product you're looking for?

Description

Mogami W2552 Mic Cable
A specially developed, high-performance yet economical low-impedance balanced microphone cable, the Mogami W2552 is designed for flexibility, durability, and ease of use. Its compact size and rubber-like PVC jacket offer excellent resistance to rough handling and abrasion, making it ideal for both studio and field applications. The high-grade insulation material minimizes heat shrinkage during soldering, allowing for a clean and durable assembly when terminating to XLR connectors. Available in both overall and individually shielded configurations, this cable provides reliable performance across a wide range of professional environments. With its extremely limp and flexible design, the W2552 suits all types of audio/visual and industrial audio applications. The use of XLPE insulation and a rugged outer jacket ensures this cable stands up to frequent use while remaining economical. Whether for fixed installations or mobile setups, it delivers professional-level performance without compromise.

Neutrik NP3X
The Neutrik NP3X is a heavy-duty, professional-grade 1/4" phone plug engineered for maximum reliability and efficiency. Building on the proven design of the C Series, it features the thinnest available A-gauge plug with Neutrik's signature chuck-type strain relief, ideal for today's high-density jackfields. The slim 14.5 mm shell fits into tight spaces while maintaining structural integrity.

Neutrik NC3FXX
The NC3FXX is the next-generation 3-pole female XLR cable connector, designed as the improved successor to the industry-standard X Series. Featuring a rugged nickel-plated housing and silver-plated contacts, it combines reliability, ease of assembly, and enhanced contact performance. This updated design introduces several innovations that ensure higher durability, better grounding, and a more secure connection in professional audio applications.

Specifications

General Specifications:

Product Name: MM2552 TRS-XLRF

Cable Type: Balanced Microphone Cable Assembly

Connector A: Neutrik NP3X 6.35 millimeter three-pole (TRS) phone plug

Connector B: Neutrik NC3FXX three-pole XLR female connector

Cable Model: Mogami W2552

Application: Low-impedance balanced microphone and line-level audio signal transmission

Cable Construction (Mogami W2552)

Conductor: Two conductors of 0.08 square millimeters (28 American Wire Gauge), oxygen-free copper

Insulation: Cross-linked polyethylene (XLPE)

Shield: Spiral shield, 90 percent coverage, oxygen-free copper

Capacitance: 67 picofarads per meter between conductors

Outer Diameter: Approximately 4 millimeters

Jacket Material: Rubber-like polyvinyl chloride (PVC), flexible and abrasion-resistant

Heat Resistance: Low shrinkage insulation for easy soldering

Flexibility: Extremely limp and highly flexible for tight routing and portable use

Connector Specifications (Neutrik NP3X):

Type: Three-pole 6.35 millimeter TRS phone plug

Contact Plating: Nickel

Shell Diameter: Fourteen point five millimeters

Strain Relief: Chuck-type with precision clamping

Housing: Zinc diecast shell with nickel plating

Cable Entry Range: Four to seven millimeters

Standard Compliance: A-gauge type compatible with industry-standard jacks

Mechanical Life: Greater than one thousand mating cycles

Connector Specifications (Neutrik NC3FXX):

Type: Three-pole XLR female cable connector

Contact Plating: Silver

Housing: Zinc diecast with nickel finish

Locking Device: Latch lock with improved grounding

Strain Relief: Polyacetal chuck type

Boot Compatibility: Fits eight millimeter maximum cable outer diameter

Mechanical Life: Greater than one thousand mating cycles

Standard Compliance: IEC 61076-2-103

Assembly Specifications:

Termination Method: Hand-soldered

Heat Shrink Tubing: Used for insulation stability and strain relief

Compatibility: Analog audio equipment, mixers, preamps, interfaces, and patch bays

Shield Connection: Shield typically connected to XLR pin one and TRS sleeve
