MAMMOTH CABLES

MM2552 TRS-TRS 100'

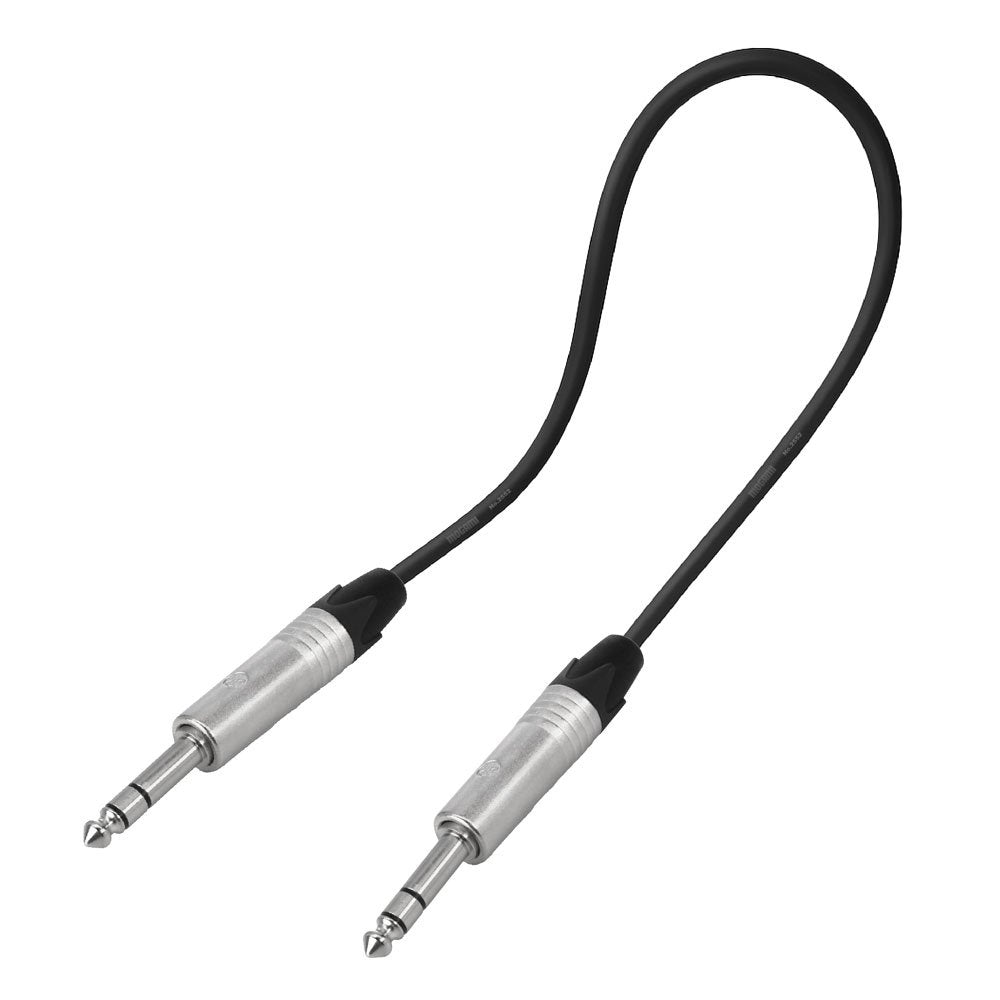

Balanced TRS-TRS audio cable, 100' length, Mogami W2552 cable, Neutrik NP3X 1/4" TRS connectors, flexible PVC jacket, abrasion resistant

$163.95 CAD

Can't find the product you're looking for?

Description

The Woolly Mammoth Cable MM2552 TRS-TRS is a balanced audio cable made with Mogami W2552 microphone cable and Neutrik NP3X 1/4-inch TRS connectors. Designed for dependable signal transmission in audio, visual, and industrial applications, the W2552 cable combines a compact profile with a highly flexible rubber-like PVC jacket that stands up well to frequent handling and abrasion.

Its XLPE insulation helps simplify connector termination while minimizing heat shrinkage during soldering, while the durable outer jacket keeps the cable easy to route in studios, stages, equipment racks, and other installations. Neutrik NP3X plugs feature a slim 14.5 mm shell, chuck-style strain relief, and a precisely machined one-piece tip contact for a secure and reliable connection. This cable is well suited for connecting balanced line-level equipment, mixing desks, patching systems, amplifiers, and other compatible audio gear.

Specifications

General Specifications
Cable Type: Balanced TRS audio cable
Connector Configuration: 1/4 in TRS male to 1/4 in TRS male
Cable Length: 100'
Signal Type: Balanced
Conductors: 2
Termination: Solder contacts

Cable
Cable Brand: Mogami
Cable Series: W2552
Cable Type: Low-impedance balanced microphone cable
Insulation: XLPE
Jacket Material: Rubber-like PVC
Cable Flexibility: Extra flexible
Abrasion Resistance: High

Connectors
Connector Brand: Neutrik
Connector Series: NP3X
Connector Type: 1/4 in professional TRS phone plug
Connector Gender: Male
Connector Poles: 3
Contact Construction: Precision-machined one-piece contacts
Contact Material: Brass (CuZn39Pb3)
Contact Plating: Nickel
Shell Material: Zinc diecast (ZnAl4Cu1)
Shell Plating: Nickel
Insert Material: Polyamide PA 6.6, 30% glass reinforced
Bushing Material: Polyacetal (POM) + PU
Strain Relief: Polyacetal (POM), chuck type
Shell Width: 14.5 mm
Compatible Cable Diameter: 4–7 mm
Maximum Wire Size: 1 mm² / 18 AWG

Electrical
Dielectric Strength: 1 kVDC
Insulation Resistance: >2 GΩ initial
Rated Voltage: <50 V
Contact Resistance: Dependent on mating connector
Rated Current per Contact: Dependent on mating connector

Mechanical
Connector Lifetime: >1,000 mating cycles
Jackfield Compatibility: 15.88 mm jack pitch

Environmental
Operating Temperature: -20 °C to +65 °C
Standard Compliance: IEC 60603-11 / EIA RS-453
Solderability: IEC 68-2-20 compliant
