MAMMOTH CABLES

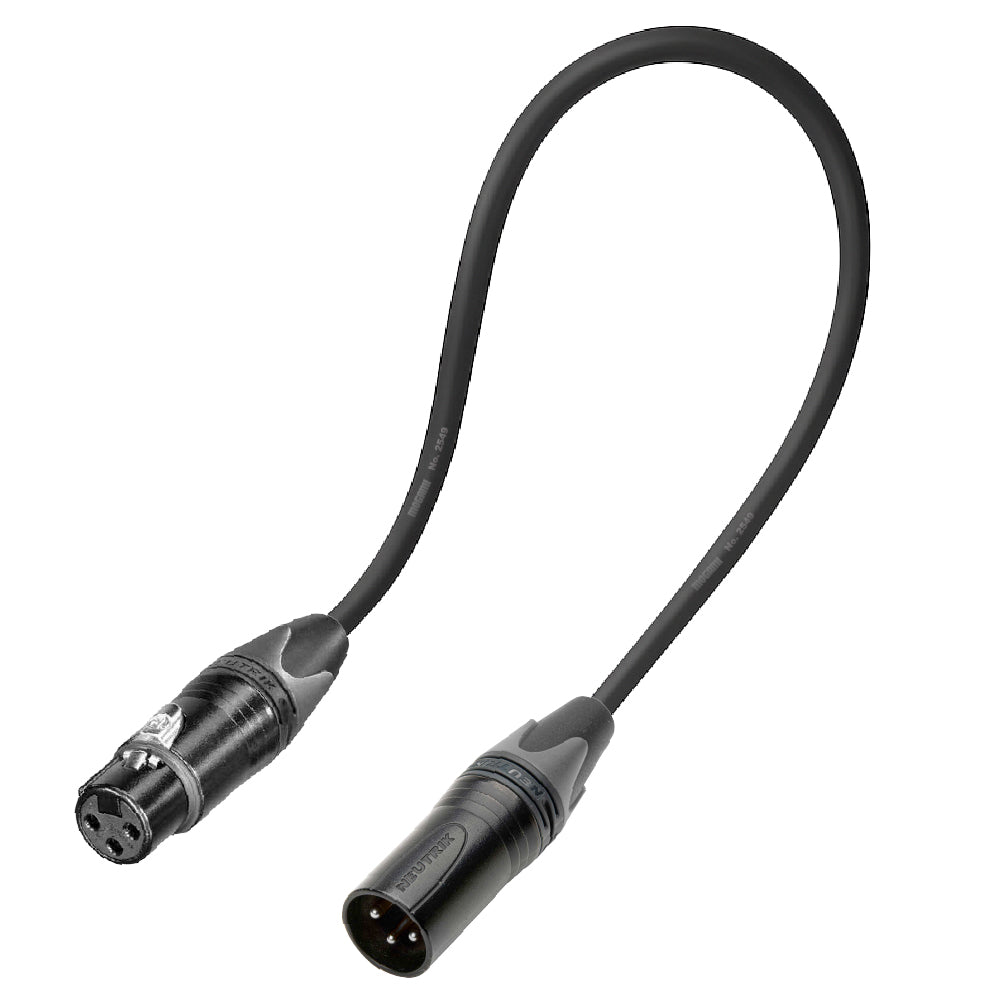

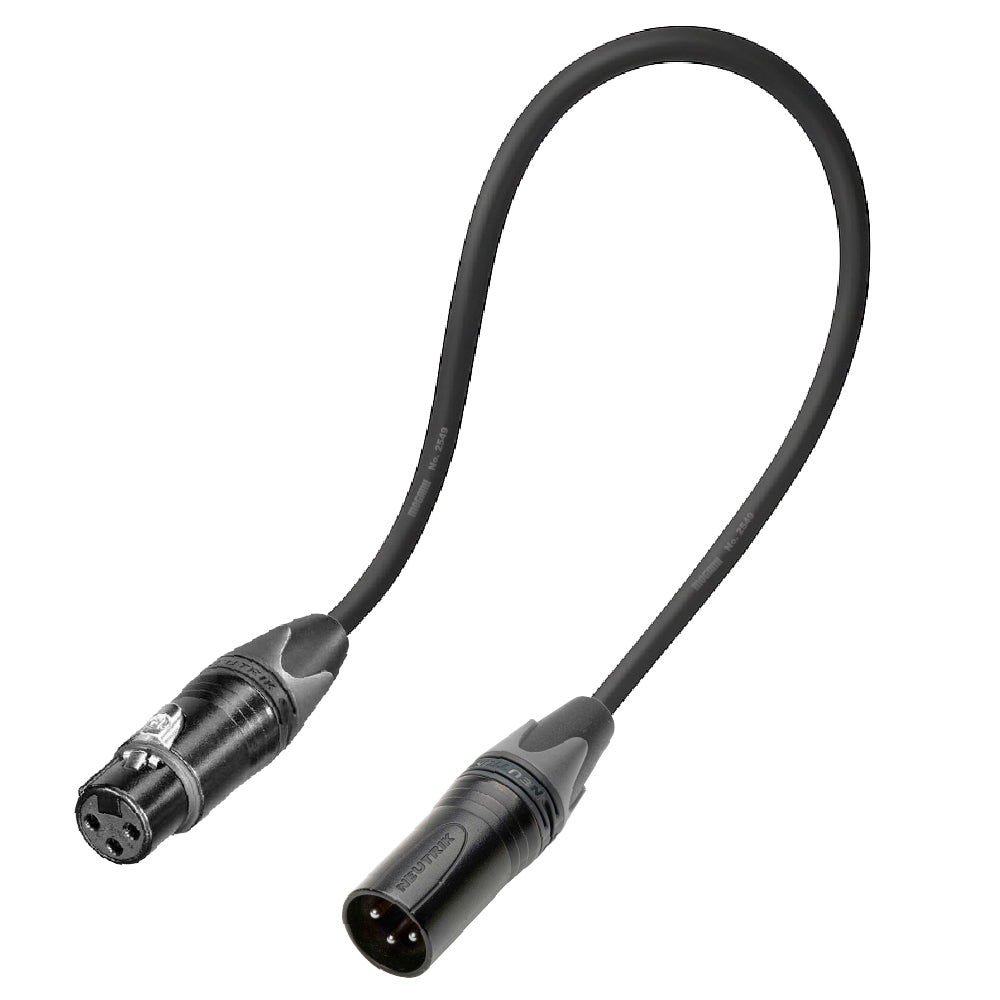

MM2549 XLR-XLR 25'

Made with Mogami High Quality Balanced Microphone Cable W2549 and Neutrik XLR (NC3MXX-BAG, NC3FXX-BAG) Connectors. Length: 25 feet

$83.95 CAD

9 in stock

Request a Quote – For Authorized Dealers Only

Can't find the product you're looking for?

Contact Us

Description

Mogami W2549 Mic Cable
W2549 has been designed using our famous Neglex OFC to provide the highest quality audio reproduction in any recording application. It features #22AWG conductors and extremely low capacitance. The 100% coverage served shield and twisted pair construction is excellent at preventing noise caused by electromagnetic interference. This cable is recommended when extended high frequencies are important or where long cable runs may be needed.

NC3MXX-BAG
3 pole male cable connector with black metal housing and silver contacts.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

NC3FXX-BAG
3 pole female cable connector with black metal housing and silver contacts.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Specifications

Product Name: W2549

Cable Type: High Quality Balanced Microphone Cable

Conductor Material: Neglex OFC (Oxygen-Free Copper)

Conductor Size: 0.339 mm² (#22 AWG)

Outer Diameter: 6.0 mm (0.236")

Shield Type: 100% Coverage Served Shield

Shield Construction: Twisted Pair with Served Shield

Color Options: Black, Red, Yellow, Green, Blue

Flex Life: 14,500 Cycles

Tensile Strength: 657 N

Electrical Characteristics

Capacitance: Extremely Low (Exact value not specified)

Noise Rejection: High (due to twisted pair and full shield coverage)

Environmental Characteristics

Recommended Applications: Long Cable Runs, High-Frequency Audio Transmission

Microphonic Noise: Very Low

Operating Temperature: Down to –20°C (–4°F)

Flexibility at Low Temperature: Maintains Flexibility

Mechanical Characteristics

Stranding: 105 Strands of 44 AWG Annealed Bare Copper

Durability: Designed for Rugged, Continuous Handling

Use Case: Remote, Stage, TV, Radio, Broadcast, and Sound Reinforcement

Product Name: NC3MXX-BAG

Connector Type: XLR

Gender: Male

Electrical Specifications

Capacitance Between Contacts: ≤ 4 pF

Contact Resistance: ≤ 3 mΩ

Dielectric Strength: 1.5 kV DC

Insulation Resistance: > 10 GΩ (Initial)

Rated Current per Contact: 16 A

Rated Voltage: < 50 V

Product Name: NC3FXX-BAG

Connector Type: XLR

Gender: Female

Electrical Specifications

Capacitance Between Contacts: ≤ 4 pF

Contact Resistance: ≤ 3 mΩ

Dielectric Strength: 1.5 kV DC

Insulation Resistance: > 10 GΩ (Initial)

Rated Current per Contact: 16 A

Rated Voltage: < 50 V

Assembly Specifications:

Termination Method: Hand-soldered

Heat Shrink Tubing: Used for insulation stability and strain relief

Compatibility: Analog audio equipment, mixers, preamps, interfaces, and patch bays

Shield Connection: Shield typically connected to XLR pin one and TRS sleeve
