MAMMOTH CABLES

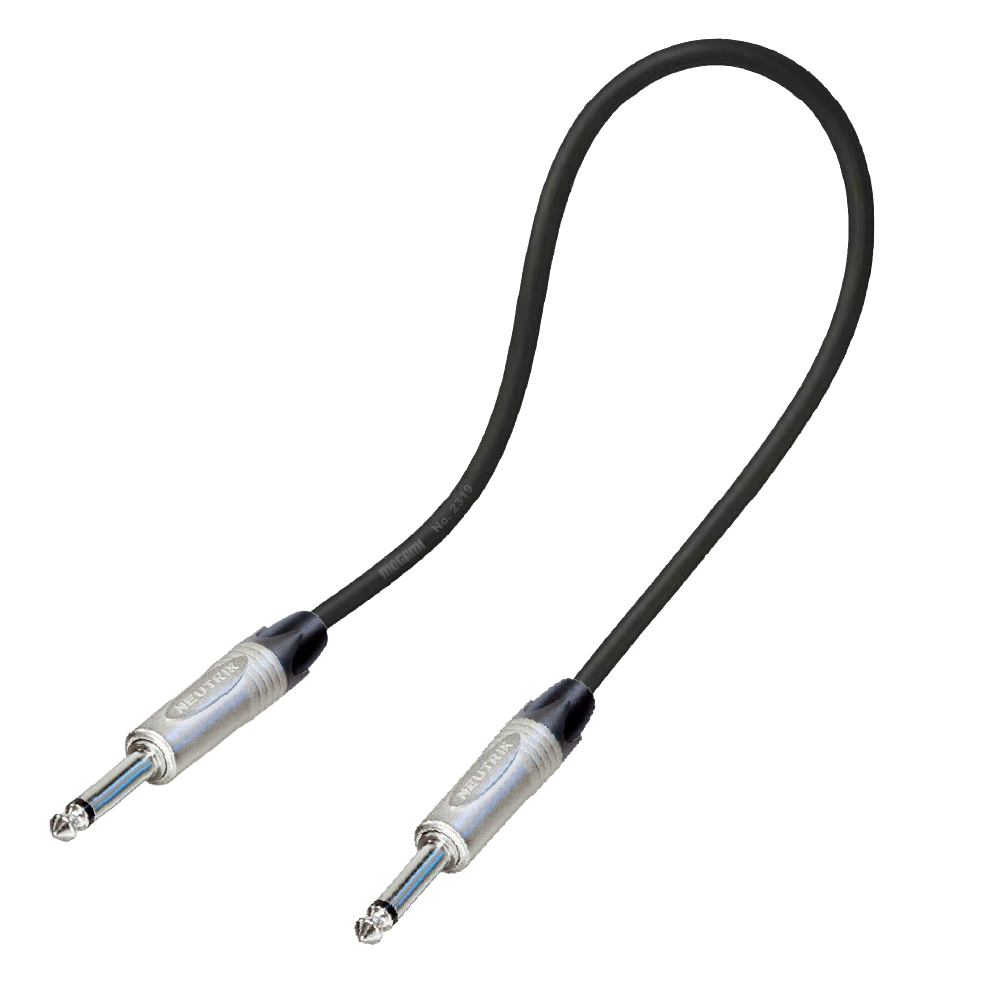

MM2319 TS-TS 03'

Instrument cable made with Mogami General Purpose W2319 Mic Cable and Neutrik male NP2X Connectors. Length: 3 feet

$40.95 CAD

9 in stock

Request a Quote – For Authorized Dealers Only

Can't find the product you're looking for?

Contact Us

Description

Mogami W2319 Mic Cable
Most musical instrument pickups, including those used in electric guitars and basses, are high-impedance circuits driven mainly by voltage with very little current flow. This makes instrument cables susceptible to microphonic noise caused by flexing, movement, or impact. The W2319 cable uses a conductive PVC layer beneath the shield conductor to drain away this unwanted voltage and support clean, low-noise signal transfer.

 Neutrik NP2X
The Neutrik NP2X is a professional 1/4-inch, 2-pole phone plug with nickel contacts and a nickel-plated shell. Its slim 14.5 mm housing, robust diecast construction, precision-machined one-piece contact, and chuck-style strain relief provide secure cable retention, convenient handling, and reliable performance.

Specifications

General Specifications
Product Type: Unbalanced Instrument Cable Assembly
Cable Type: High-impedance instrument cable
Application: Guitar and instrument-level signal transmission
Cable Model: Mogami W2319
Configuration: TS to TS

Cable Construction
Conductor: 0.305 mm² (23 AWG) copper (12/0.18 stranding)
Insulation: Polyethylene (PE)
Sub-Shield: Conductive PVC layer (carbon PVC)
Shield: Served shield (approx. 38/0.16 strands)
Capacitance: 155 pF/m
Inductance: 0.3 µH/m
Outer Diameter: 5.0 mm
Jacket Material: PVC
Flex Life: 11,000 cycles
Tensile Strength: 303 N

Connector A (TS)
Type: 6.35 mm 2-pole (TS) phone plug
Model: Neutrik NP2X
Contact Plating: Nickel
Housing: Zinc diecast, nickel plated
Shell Diameter: 14.5 mm
Strain Relief: Chuck-type
Cable Entry Range: 4 – 7 mm
Mechanical Life: >1,000 mating cycles
Standard Compliance: IEC 60603-11 / EIA RS-453

Connector B (TS)
Type: 6.35 mm 2-pole (TS) phone plug
Model: Neutrik NP2X
Contact Plating: Nickel
Housing: Zinc diecast, nickel plated
Shell Diameter: 14.5 mm
Strain Relief: Chuck-type
Cable Entry Range: 4 – 7 mm
Mechanical Life: >1,000 mating cycles
Standard Compliance: IEC 60603-11 / EIA RS-453

Electrical
Signal Type: Unbalanced analog instrument signal
DC Resistance (Conductor): 0.064 Ω/m
DC Resistance (Shield): 0.026 Ω/m
Electrostatic Noise: ≤ 0.13 mV
Electromagnetic Noise (10 kHz): ≤ 0.07 mV
Microphonics: ≤ 0.3 mV

Environmental
Operating Temperature: -20°C to +60°C
Insulation Resistance: ≥ 100000 MΩ·m @ 500 V
Voltage Breakdown: 500 V DC / 15 sec

Assembly
Termination: Hand-soldered
Insulation: Heat shrink tubing for strain relief
Compatibility: Guitars, amplifiers, pedals, audio interfaces
Shield Connection: Sleeve to sleeve

Physical
Length: 3 ft
Color: Black
