TRINNOV AUDIO  |  Barcode: OPT-MIC3-XLR3

3D Mic

Measurement microphone, tetrahedral capsule array, 3D speaker localization, 20 Hz to 24 kHz frequency response

$1,245.00 CAD
Request a Quote – For Authorized Dealers Only

Can't find the product you're looking for?

Contact Us

Description

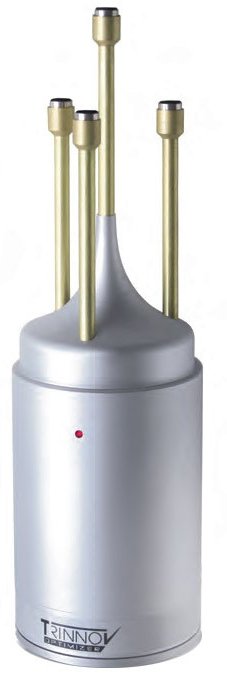

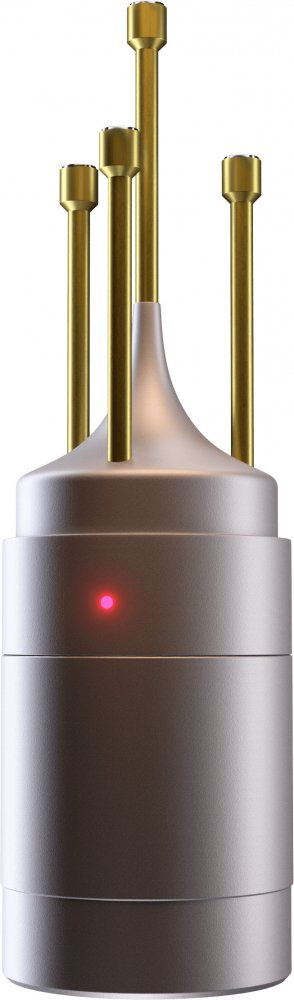

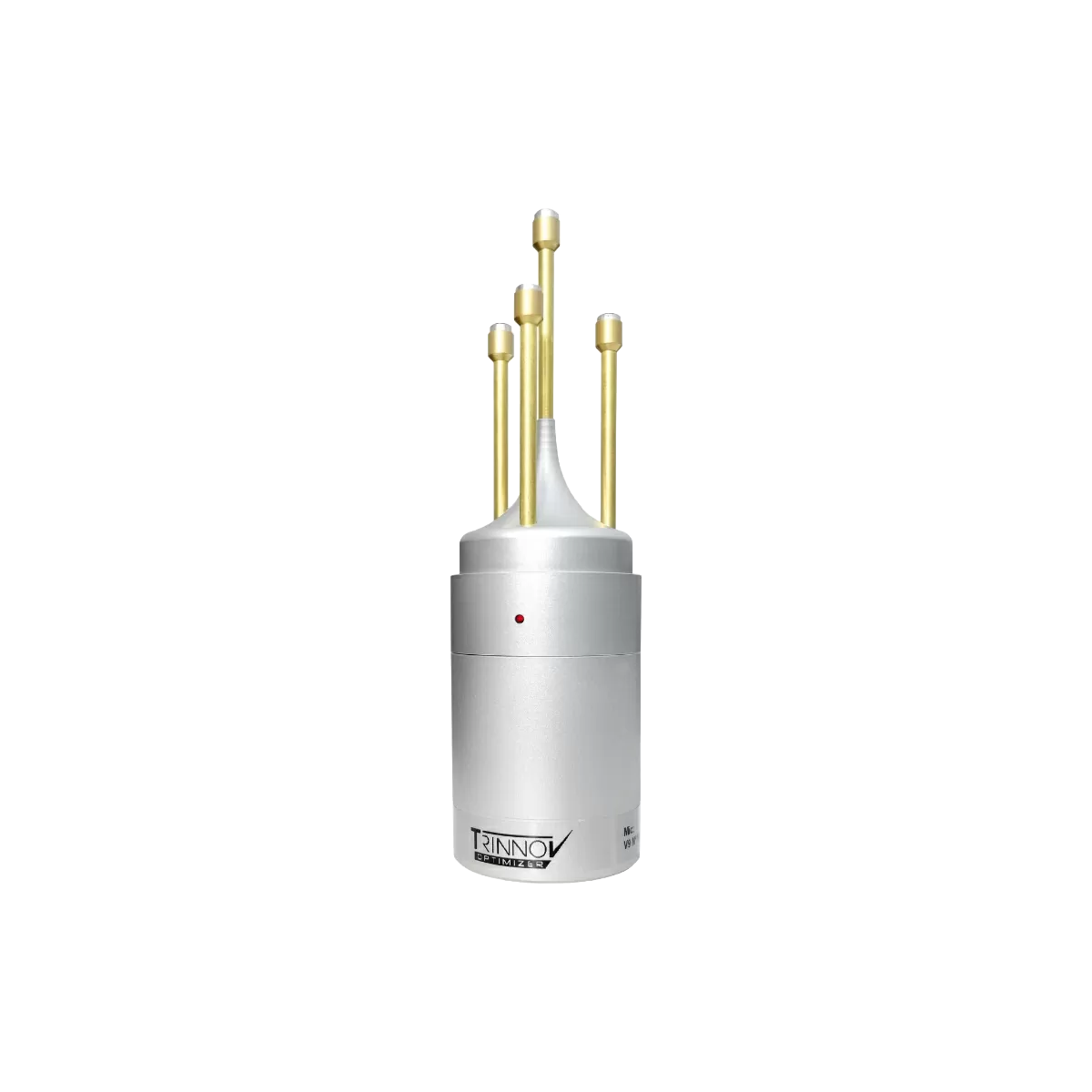

This individually calibrated measurement microphone captures detailed acoustic data for loudspeaker and room calibration. Its tetrahedral capsule arrangement measures frequency response, phase, group delay, impulse response, distance, azimuth, elevation, and absolute sound pressure level while locating each speaker and subwoofer in three dimensions.

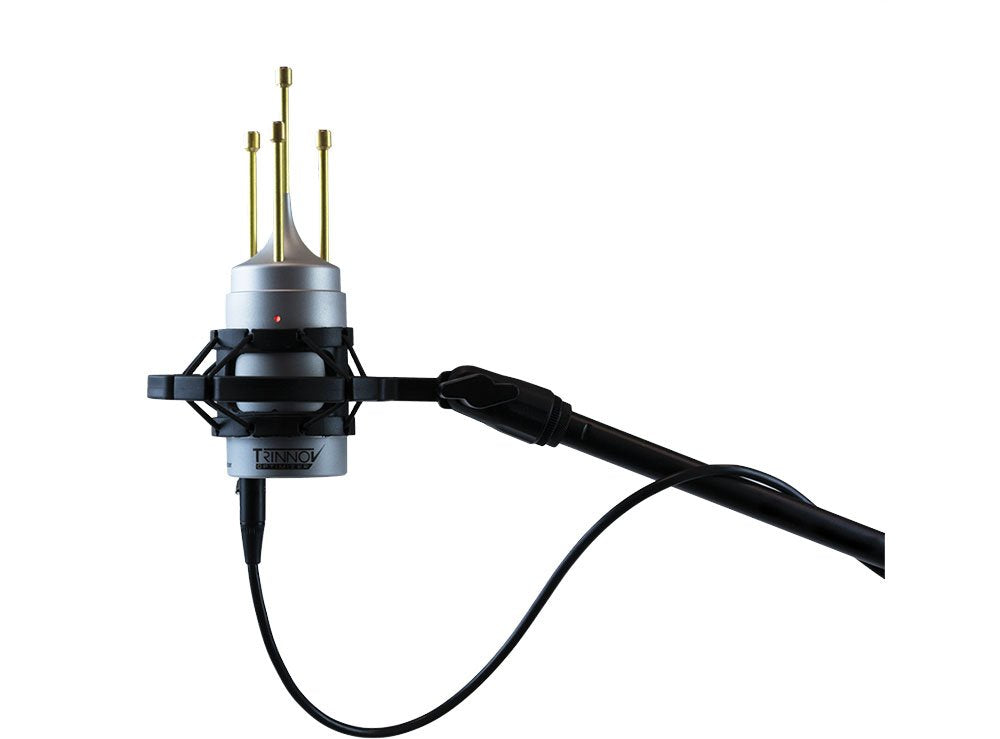

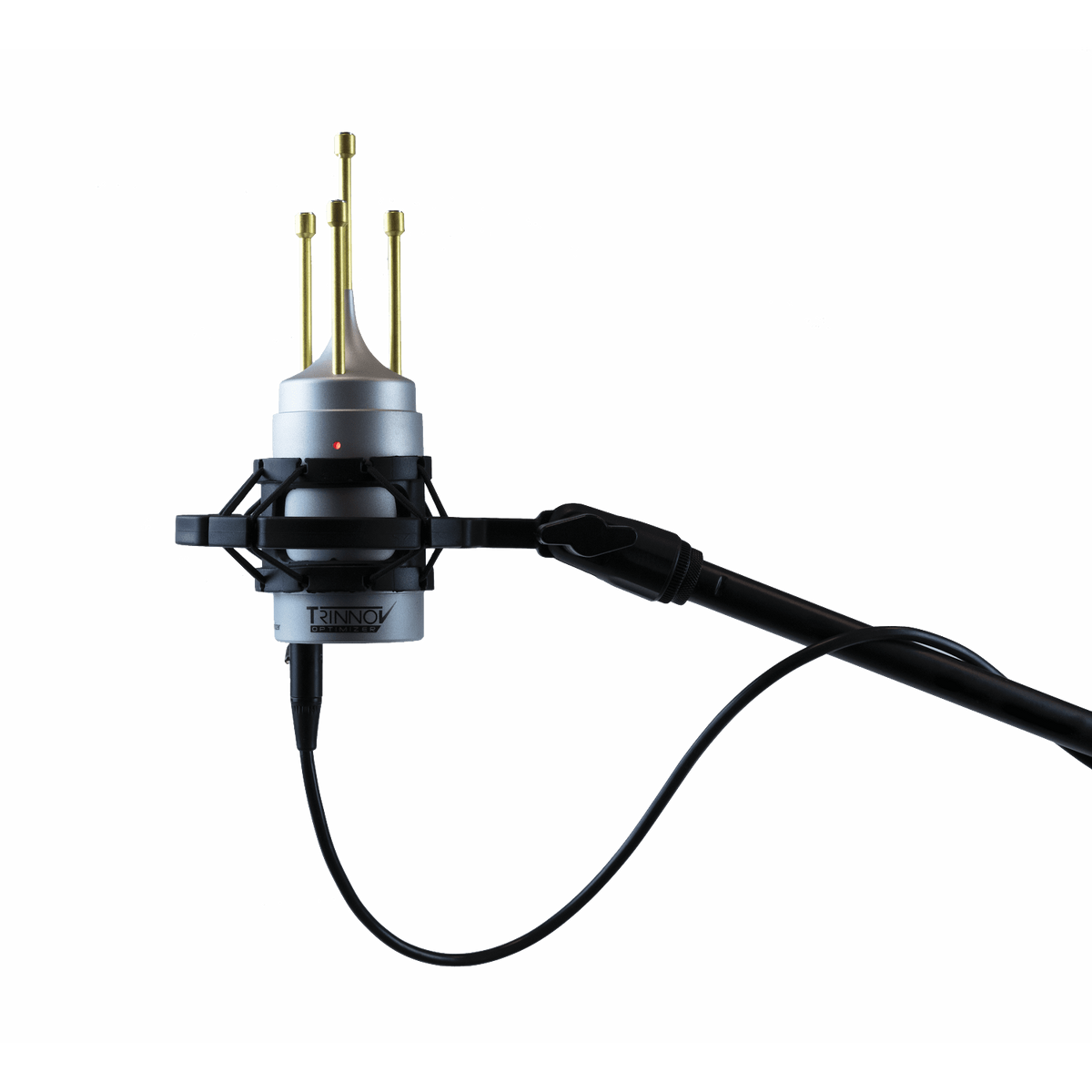

Positioned at the main listening location, the microphone helps compatible processors map the physical speaker layout and identify early reflections for acoustic field processing and Remapping. Version-specific cable, power, compatibility, and compensation-file requirements support selected professional and residential processors.

Specifications

Technical Specifications
Individual Calibration: Yes
3D Speaker Localization: Yes
Frequency Response: 20 Hz to 24 kHz, ±0.1 dB
Azimuth Precision: 2°
Elevation Precision: 2°
Distance Measurement Precision: Less than 1 cm
Absolute Level Measurement: Yes

Attached-Cable Versions

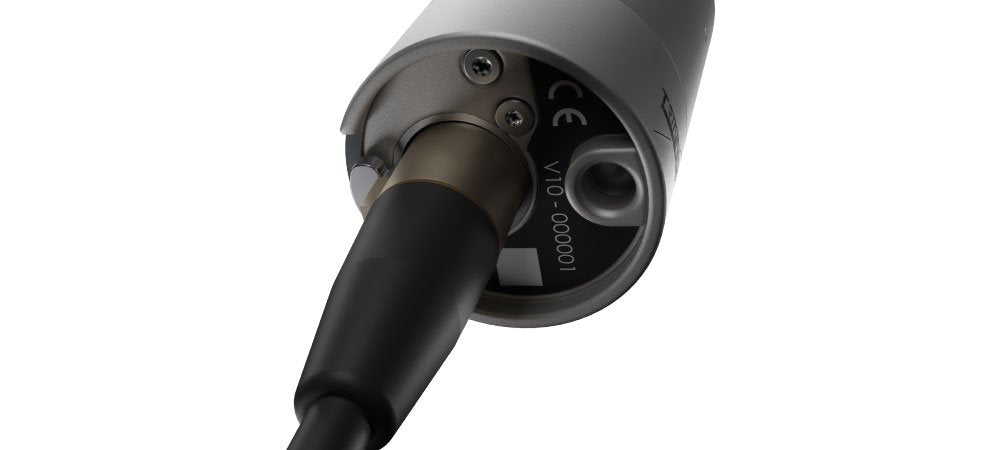

Microphone Cable: Attached cable with four XLR3 connectors
Compatibility: Compatible processors excluding NOVA and AltitudeCI
Power: Built-in 9 V battery
Compensation File Upload: USB stick or my.trinnov.audio dealer portal

Detachable Battery-Powered Versions
Microphone Cable: Detachable
Compatibility: Compatible processors with the correct cable, excluding NOVA and AltitudeCI
Power: Built-in 9 V battery
Compensation File Upload: USB stick or my.trinnov.audio dealer portal

Phantom-Powered Versions

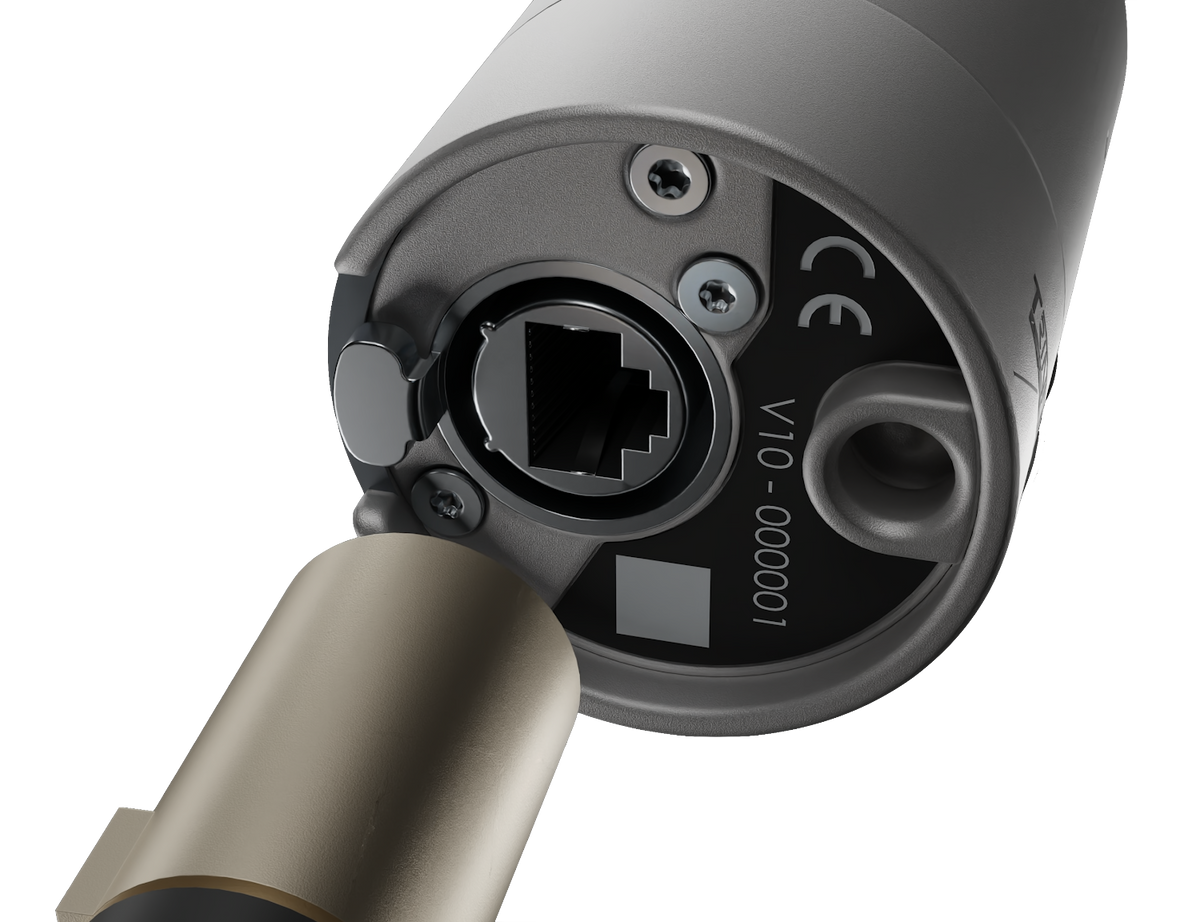

Microphone Cable: Detachable
Compatibility: NOVA and AltitudeCI
Power: Phantom power supplied by the processor
Compensation File Upload: Automatic through the calibration wizard

EAN: 3760390810067
