SERPENT AUDIO  |  Barcode: SPLICE SA76-S

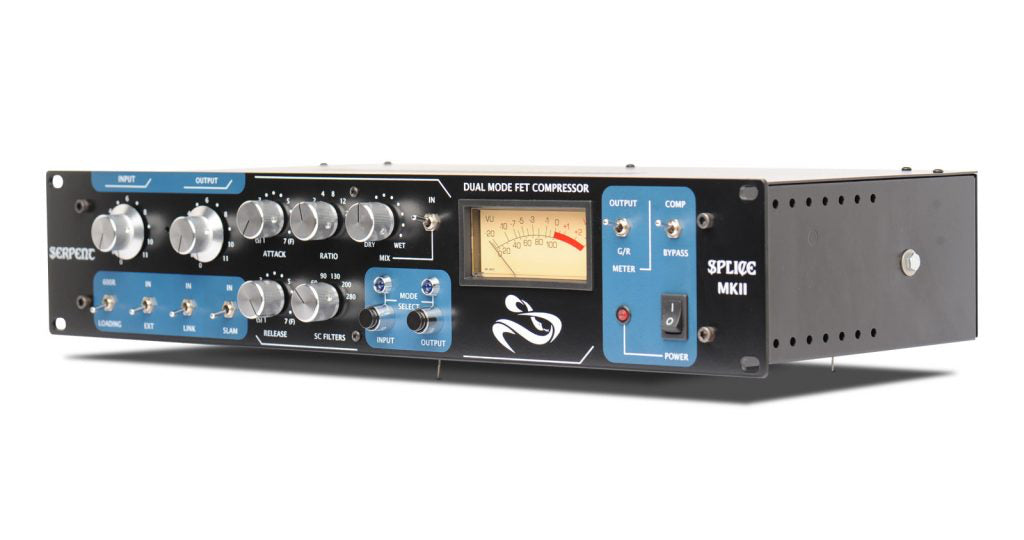

Splice MKII Fet

$4,140.00 CAD
Request a Quote – For Authorized Dealers Only

Description

The Serpent Audio SPLICE MKII is a high-quality, single-channel FET compressor built for professional audio production. It supports both mono use and stereo pairing with a second unit. A standout feature of the SPLICE MKII is its ability to switch between classic Blackface and Blue Stripe circuit styles, or combine them to shape unique tonal characteristics. This flexibility makes it suitable for a range of mixing and tracking tasks.

Designed with hands-on control in mind, the unit includes a blend knob for internal parallel compression, a set of stepped compression ratios, and fully variable attack and release settings. Additional tools like sidechain filtering, external sidechain input, and a high-distortion "Slam" mode give engineers creative options for dialing in character and control. With transformer-balanced input and output paths, solid build quality, and intuitive layout, the SPLICE MKII fits seamlessly into a professional workflow.

Specifications

General Specifications
Device Type: Dual FET Compressor
Channels: Single channel (mono); stereo capable with second unit
Compression Type: FET
Circuit Modes: Selectable Blackface and Blue Stripe; mix-and-match mode
Gain Reduction Element: FET
THD+N (20Hz–20kHz): Typically 0.5%
Signal-to-Noise Ratio: >80 dBu
Construction: 100% Designed and built in the USA

Gain
Gain: 45 dB (±1 dBu) with compression disabled (Ratio set to “BP”)

Input/Output
Input Type: Constant 600Ω Input Attenuator, Floating Transformer Balanced
Maximum Input Level: +30 dBu (with compression engaged, input fully clockwise)
Output Type: Floating Transformer Balanced
Maximum Output Level: +24 dBu
Output Impedance (Mix Enabled): <100Ω, Electronically Balanced
Output Load: 150Ω minimum
External Send Output: <100Ω, Transformer-like Floating, Electronically Balanced
External Return Input: 22kΩ, Electronically Balanced TRS
Supports Balanced and Unbalanced Signals

Controls
Input: Variable rotary potentiometer
Output: Variable rotary potentiometer
Attack Time: 800 µs (slowest) to 20 µs (fastest)
Release Time: 1.1 s (slowest) to 50 ms (fastest), stepped control
Compression Ratios: 2:1, 4:1, 8:1, 12:1, 20:1
Bypass Mode: “BP” soft bypass disables compression
Sidechain Filters: OFF, 60Hz, 90Hz, 130Hz, 200Hz, 280Hz
Mix/Blend: Fully variable dry/wet parallel compression control
Power Switch: On/Off toggle with red LED indicator
Comp/Bypass: True hardwire relay bypass toggle
VU Meter Modes: Output (+4 dBu = 0 VU) / Gain Reduction
VU Calibration: Front panel adjustment slot
Mode Switching: Selectable Blackface or Blue Stripe (Input/Output), defaults to Blackface
600R Loading: Selectable output termination for vintage/modern gear

Stereo and External Features
Link In: Stereo linking with second unit via unbalanced TRS cables
External Sidechain: Send/Return XLR loop with toggle activation
Slam Mode: High-distortion “All Buttons In” mode; functional with 4:1 or 20:1 ratios for classic sound

Form Factor
Form Factor: 19" Rackmount
Channels per Unit: 1 (mono)
Stereo Operation: Requires two linked units

UPC: 860000364508
