General Specifications

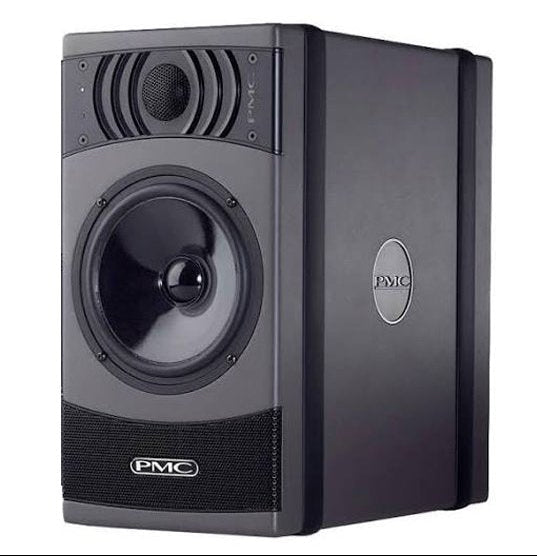

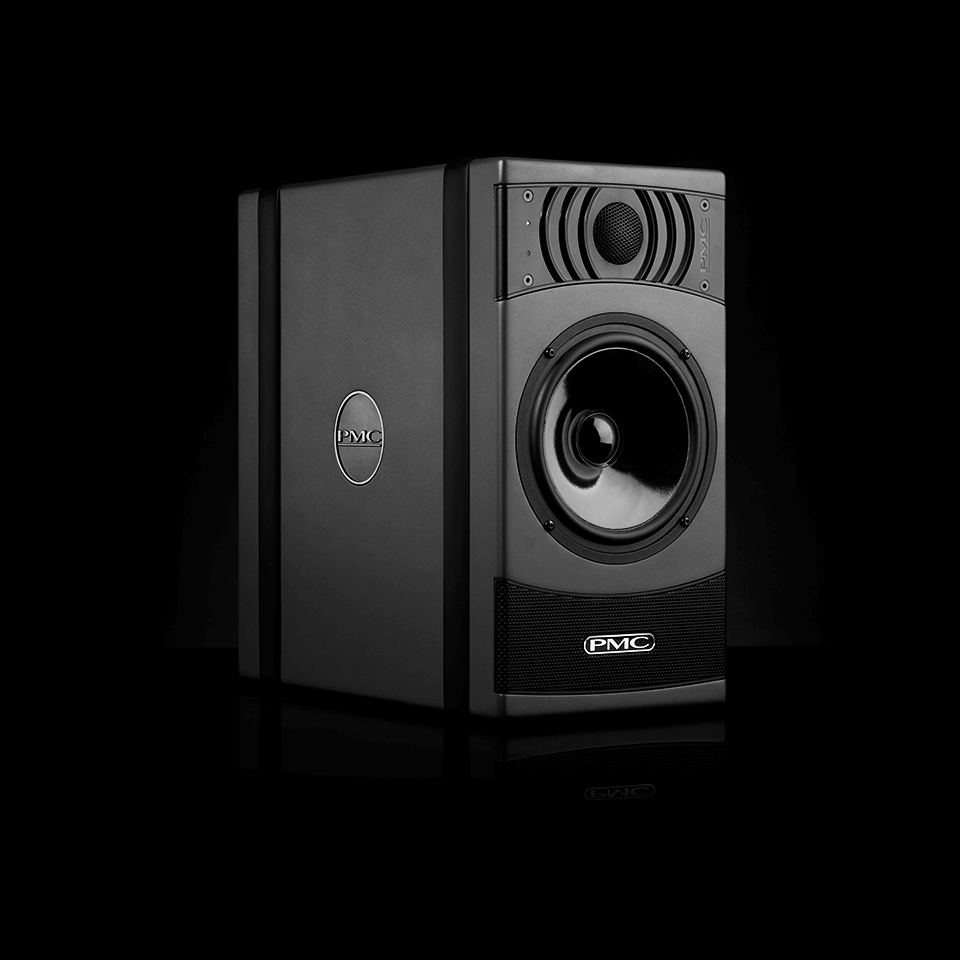

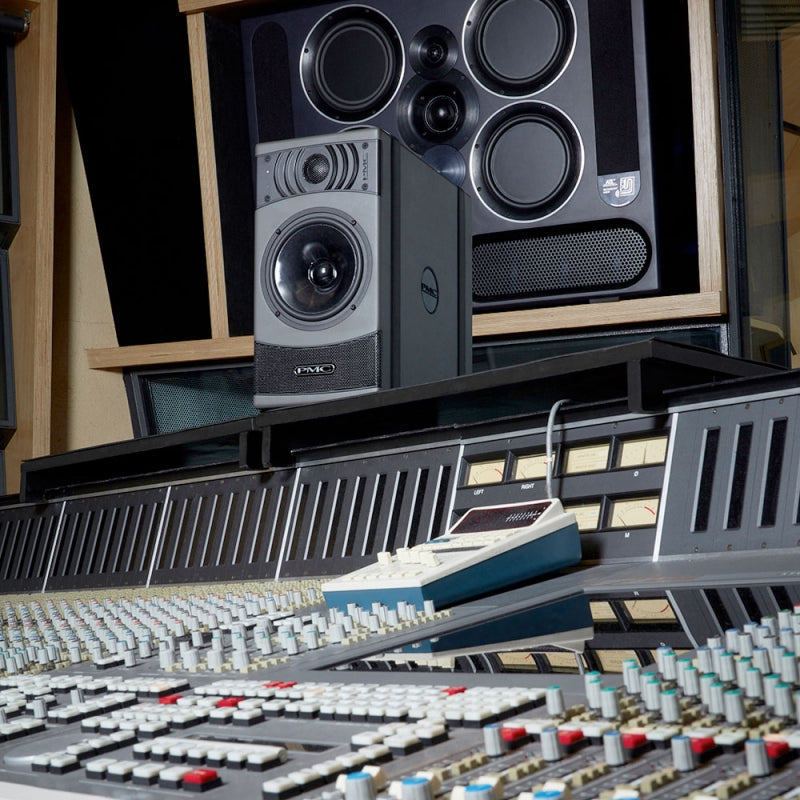

Device Type: Active nearfield reference monitor
Enclosure Type: Advanced Transmission Line
System Configuration: 2-way active
Frequency Response: 45 Hz–22 kHz
Maximum Sound Pressure Level: 112 dB at 1 m
Effective Transmission Line Length: 1.5 m
Crossover Frequency: 2 kHz
Crossover Type: Pure analogue active
Crossover Slope: 24 dB/octave
Driver Specifications

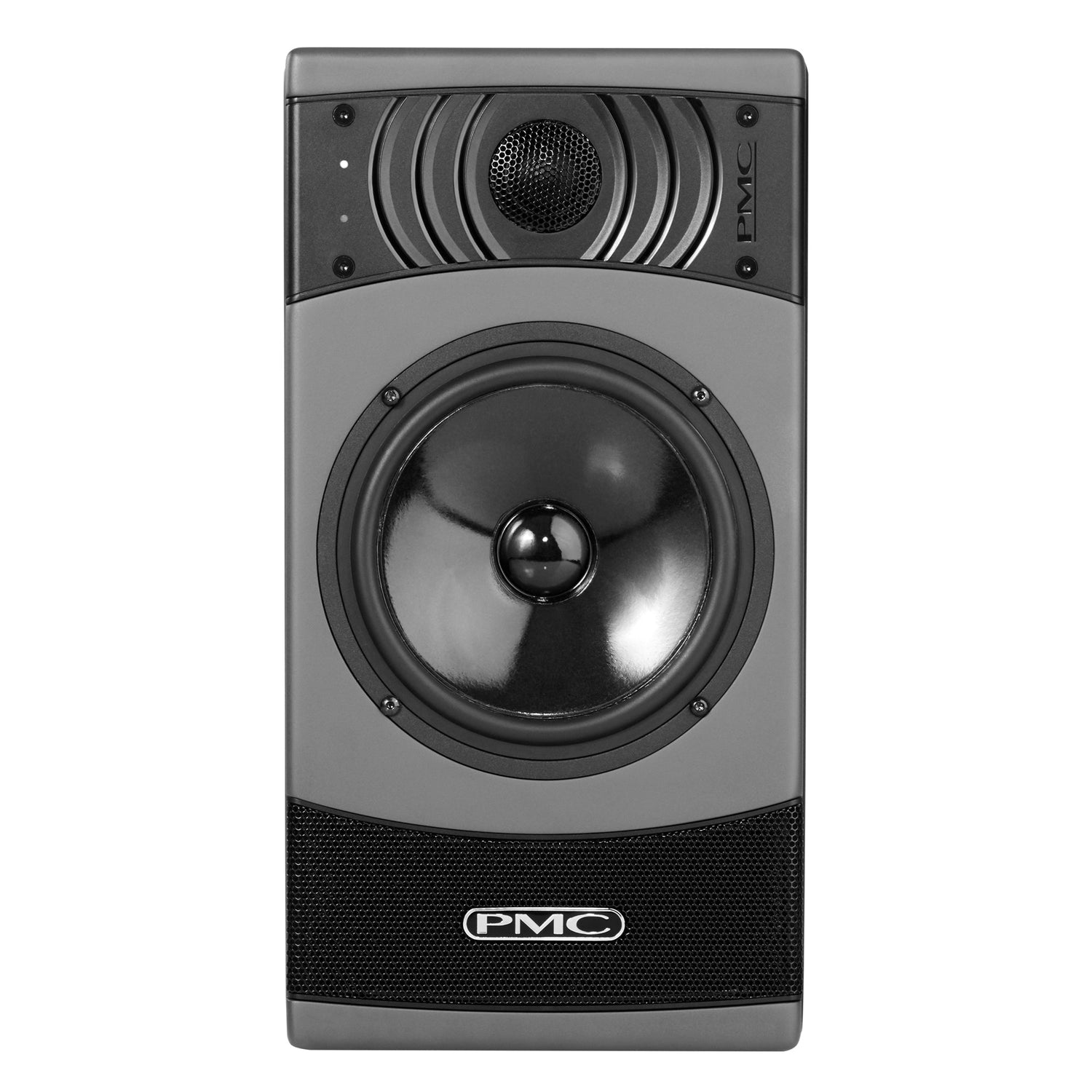

Low-Frequency Driver: 170 mm doped natural-fibre cone
High-Frequency Driver: 27 mm soft-dome tweeter

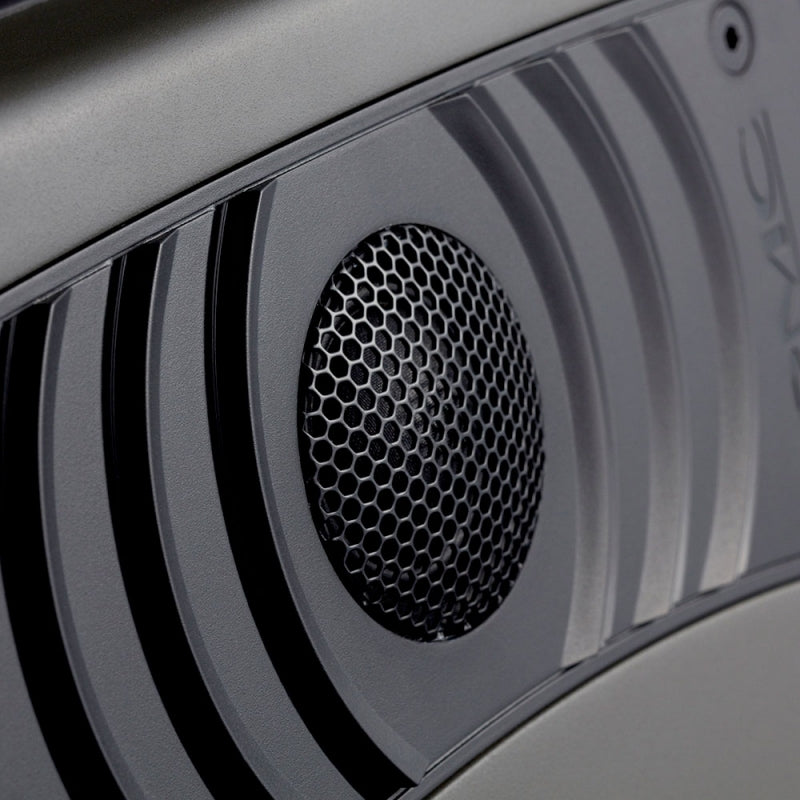

High-Frequency Features: Perforated acoustic lens, diffraction fins
Acoustic Axis: Midpoint between LF and HF drivers
Amplifier Specifications
Amplifier Type: Class D
Total Amplifier Power: 165 W RMS
Low-Frequency Amplifier Power: 100 W RMS
High-Frequency Amplifier Power: 65 W RMS
Protection System: Dual-band limiter with independent driver protection sensors
Gain Adjustment Range: -10 dB to +10 dB
Audio Input
Input Type: Electronically balanced analogue

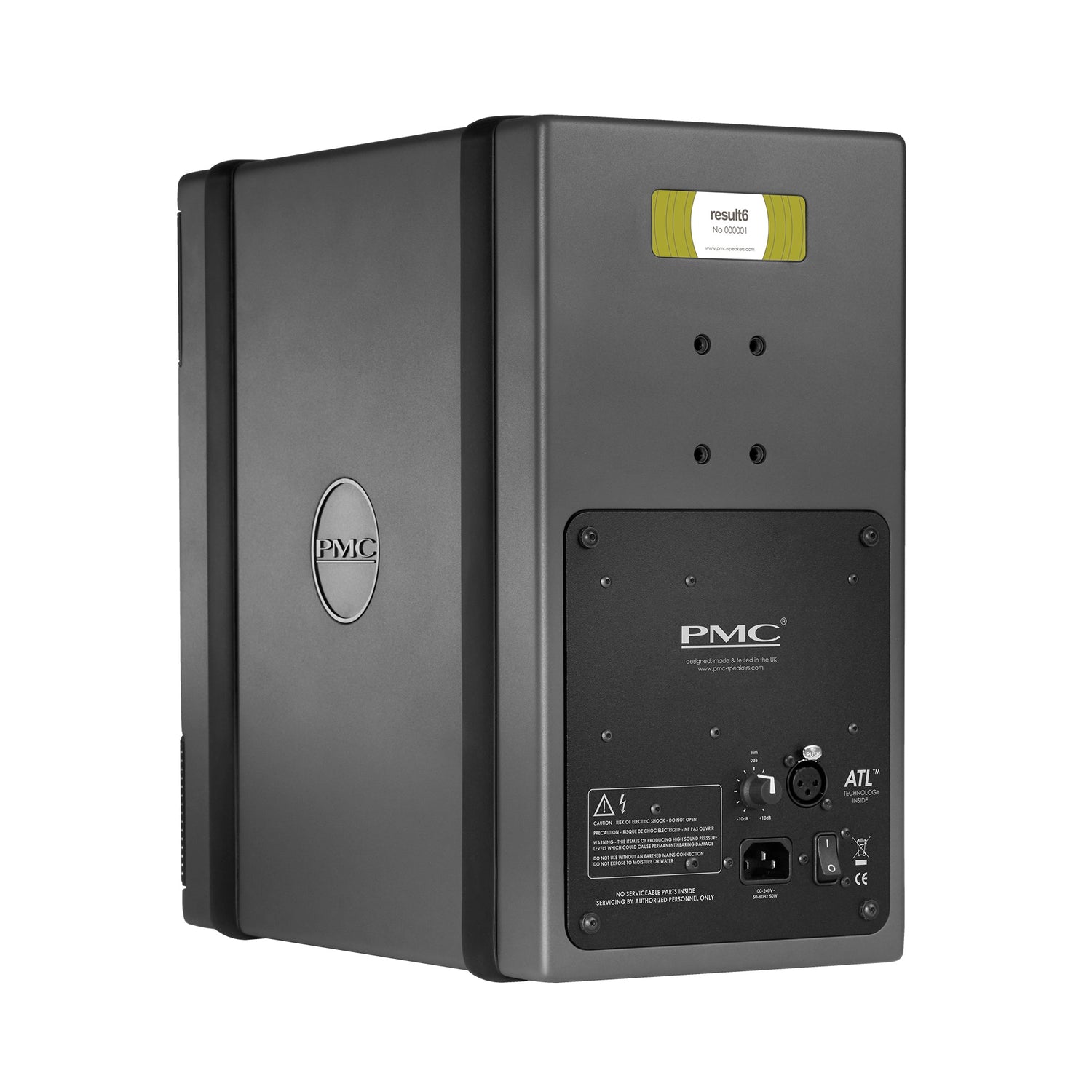

Connector: 3-pin male XLR
Pin 1: Screen/Ground
Pin 2: Signal Positive/Hot
Pin 3: Signal Negative/Cold
Input Impedance: Greater than 8 kΩ
Signal Filtering: RFI and EMI filtering
Power Specifications
Mains Connector: IEC C14
Input Voltage: 90–260 V AC
Voltage Selector: Not required
Power Switch: Rear-panel
Grounding Requirement: Protective earth required
Indicator Specifications
Power Indicator: White LED
Fault Indicator: Red LED
Limiter Indicator: Red LED
Physical Specifications
Height: 380 mm
Width: 199 mm
Depth: 360 mm
Weight: 8 kg
Installation Specifications
Recommended Listening Configuration: Equilateral triangle
Recommended Toe-In: Acoustic axes crossing approximately 0.5 m behind listening position
Recommended Boundary Clearance: More than 0.5 m from side and rear walls
Recommended Height: Acoustic axis level with listener’s ears
Mounting Support: Stand or dedicated tilting wall bracket
Operating Orientation: Vertical
Operating Specifications
Initial Run-In Period: Approximately 50 hours
Cabinet Cleaning: Dry, lint-free cloth
Cooling Requirement: Unrestricted airflow behind cabinet
Recommended Applications: Nearfield monitoring, music recording, speech recording, mixing, broadcast, post-production, editing, mastering, home theatre, high-end audio, A&R evaluation
Included Items
Monitor
AC Power Cable
User Guide
