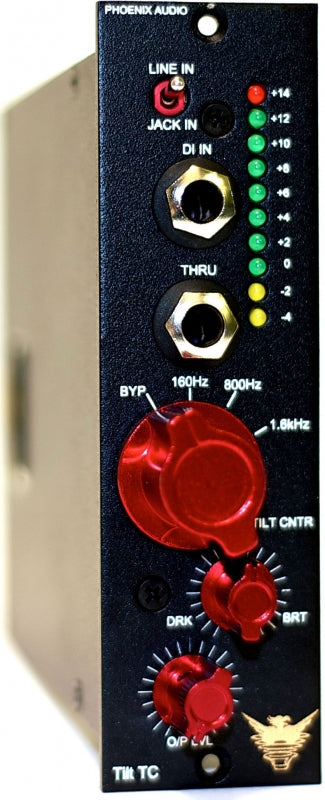

Pivot Tone Channel/500

Pivot TC/500 uses a powerful tone control pivot position EQ , a unique 3 position 'see-saw' EQ with 3 carefully selected pivot positions to cover low frequencies at 160hz, mid frequencies at 800hz and high frequencies at 1.6khz. A dark/bright shaping control, allows you to 'see-saw' the EQ to darken your mix (add LF) or brighten the mix (add HF).

There is a also a 10 position LED metering that accurately represents the output level.

The unit can also be used in bypass mode, the ouput control can be driven bringing in the Class A discrete output circuitry and output transformer to add analogue colour and saturation to any source, and a pair of units would be excellent on a mix bus or mastering.

• Class A Discrete input line buffer amp

• Class A Discrete 10meg ohm DI input

• Class A Discrete output amp

• Phoenix custom output transformer

• Unique 3 position pivot point sloping EQ

• Controllable LF, MF & HF pivot positions

• Dark & bright tone control

• Class A Stereo DI Output specs.

• Frequency Response: 20Hz to 20Khz +/- 0.5dB

• Maximum Output: +26dBu @ 1Khz

• Noise: 90dB @ 22Hz to 22KHz

• Class A, discrete, truly balanced transformerless input stage.

• The Class A DI has a very high input impedance (10Mohm), without the use of FET's. This means that the guitar pickups are not loaded as with a lower impedance input, and so allows every transient to be reproduced, making even a cheap guitar sound exceptional

• Inputs: 1/4" jack (TS) input & through input on the front panel

• Transformer isolated balanced output (XLR) on the rear panel

• EQ with 3 fixed pivot positions: 160hz, 800hz & 1.6khz

• Dark/bright tone control

• 10 position LED output metering

• Output level control
