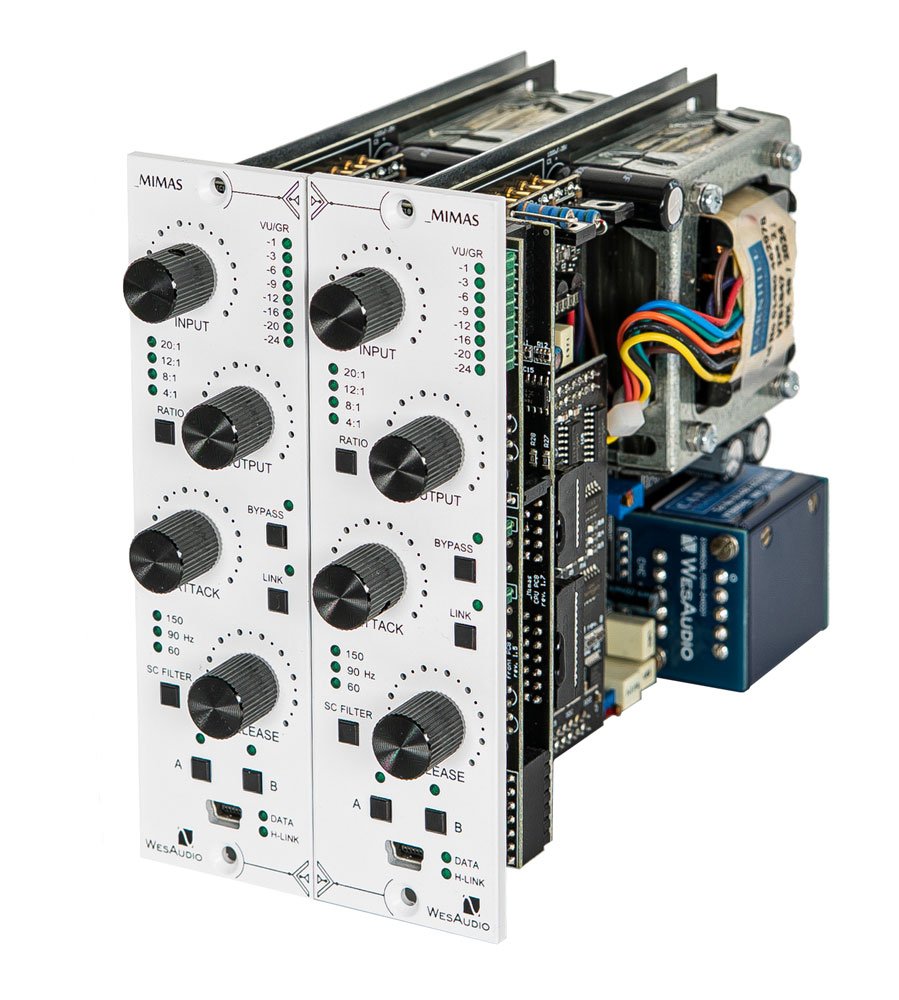

_Mimas Gemini

The _MIMAS Stereo Pair delivers a true stereo compression experience, ensuring precise and consistent performance across both channels. Thanks to Dynamic Link Technology, the sidechain signal levels are dynamically adjusted via a specialized potentiometer, automatically compensating for component tolerances. This ensures perfect alignment between both units, maintaining accurate stereo imaging without unwanted drift. Each unit is fully calibrated to operate in stereo mode, with all parameters seamlessly linked through dedicated software"any change made to one channel is instantly mirrored on the other. With true stereo and dual mono operation selectable via the SC LINK button, _MIMAS adapts to any workflow, providing ultimate flexibility. To celebrate this release, the _MIMAS Plugin has been completely redesigned, enhancing the user experience and making integration with WesAudio _MIMAS even smoother. With a modernized interface, improved ergonomics, and Total Recall & DAW control, working with _MIMAS has never been more intuitive.

• 100% analog FET compressor (1176-style) with 24dBu headroom for pristine audio quality.

• Two units fully calibrated for true stereo operation using the dedicated stereo plugin.

• Full Total Recall & plugin control, compatible with most DAWs for seamless workflow integration.

• New, modern DAW plugin design tailored to meet the demands of professional audio engineers.

• Fully linked parameters via dedicated software"adjustments on one channel automatically update the linked unit.

• Selectable compression modes: True stereo compression or dual mono operation, switchable via the SC LINK button on the front panel.

GENERAL SPECIFICATIONS:

• Analog FET compressor with digital control

• Supports total recall and plugin automation via VST/AAX/AU

• Compatible with NG500 and standard 500-series racks

• True Bypass

• Saturation mode with transformer and FET harmonic distortion

• USB and GCon protocol for digital integration and recall

• Two onboard memory slots (A/B)

• Touch-sensitive knobs for DAW automation

AUDIO SPECIFICATIONS:

• Input Impedance: 2.4 kΩ

• Output Impedance: 600 Ω

• Frequency Response: 20 Hz " 20 kHz (±1 dB)

• Signal-to-Noise Ratio (SNR): > 83 dB

• Total Harmonic Distortion + Noise (THD+N): ≤ 1%

• Compression Ratios: 4:1, 8:1, 12:1, 20:1, All-Button Mode

• Side-Chain High-Pass Filter Frequencies: 60 Hz, 90 Hz, 150 Hz

• Attack Time: 20 µs to 800 µs

• Release Time: 50 ms to 1100 ms

CONTROL INTERFACE:

• Front panel with physical controls for input, output, attack, release, and ratio

• LED-based VU/GR meter (switchable via DAW plugin)

• Dedicated buttons: Bypass, Link, SC Filter/Link, A/B memory toggle

• USB Port for direct module control

• LEDs for data transmission and host connection status

• Control and automation available via DAW plugin (mono/stereo support)

• Digital side-chain input through USB

• GConBlackBox plugin support for simplified multi-unit recall

• Compatible with Pro Tools, Cubase, Nuendo, Reaper, and others

POWER & DIMENSIONS:

• Power Consumption: 3 W

• Dimensions: 38 x 133 x 158 mm

SOFTWARE & INTEGRATION:

• Plugin support: VST, AAX, AU

• OS Compatibility: Windows & macOS

• USB 2.0 or higher required

• Firmware updates via GCon Manager software

• GCon Manager: software utility for configuration and updates

• Plugin presets: Unlimited with three instant recall setups (A/B/C)

• Synchronizable memory (plugin <-> hardware)

• Compatible with Pro Tools "Commit" and "Compare" features

• Only one host DAW can control via USB at a time
