Sub A225M - Black

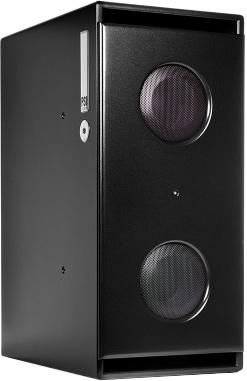

An exceptional piece of acoustic design, the A225-M sub-woofer/bass extension is equally suited to use as a mono sub-woofer in a surround sound application or as a bass extension in a stereo system. Designed to work in harmony with the A225-M Sub, all PSI Audio 'A' series speakers feature a frequency response roll-off function that, when combined with the A225-M Sub, extends the frequency range down to an incredible 24 Hz, whilst maintaining a flat response. The powerful class G outputs feature PSI Audio's unique "AOI" output stages, giving the A225-M an unprecedented impulse behavior. Each driver and amplifier unit is secured by a protection circuit, which is monitored by a red LED on the front panel. The electronics are housed in a unit mechanically isolated from the speaker cabinet to avoid resonance at high sound pressure levels. To provide stability and avoid cabinet resonance A225-M is built with a double-box design, combining two cabinets into a single beautifully finished unit.

• Built in anti-resonance system in a double box cabinet.

• Class G low temperature amplifier stage.

• Amplifier unit acoustically uncoupled from speaker cabinet.

• Real balanced input with outputs for satellite systems.

• Protection circuits with overload indicator.

• Designed for stereo and multichannel monitoring.

• Magnetically shielded for use close to video monitors.

• Phase and amplitude response compatible with all PSI Audio monitors.

• AOI Technology.

• CPR Technology.

• PSC Technology.

• Power RMS: 200 W

• Program Power: 300 W

• Input Impedance: Sym, 10k Ohms

• Sensivity for 100 dB @ 1m: 0.775 V

• Signal to Noise Ratio: 116 dBA

• Continuous Max SPL@1m: 111 dB (single)

• Input Overload: 24 Vpp

• Program Max SPL@1m: 116dB / half space

• Response at -6dB: 24 - 100 Hz

• Tolerances: ±2 dB (28Hz - 65Hz)

• Distortion THD: less than 1.5% (50Hz-200Hz)

• System: 1 Way

• Crossover frequency: 90Hz

• Woofer's dim. Ext. / Diaphragm: 2x Ø 258 mm / Ø 210 mm

• Connectors: 2 x XLR F / 2 x XLR M

• Signal input: 1=GND, 2=(+), 3=(-)

• Material: MDF / double box

• Dimensions W x H x D mm: 320 x 700 x 500

• Gross / Net Weight: 43.1 / 38.4

• Voltage: 115/230V (50-60Hz)

• Consumption Standby-Quiescent-Max: 1.7 - 4 - 200 W

• Mean / Max Humidity: less than 75% / less than 90%

• External Temperature: 5 - 40C
