PMC10

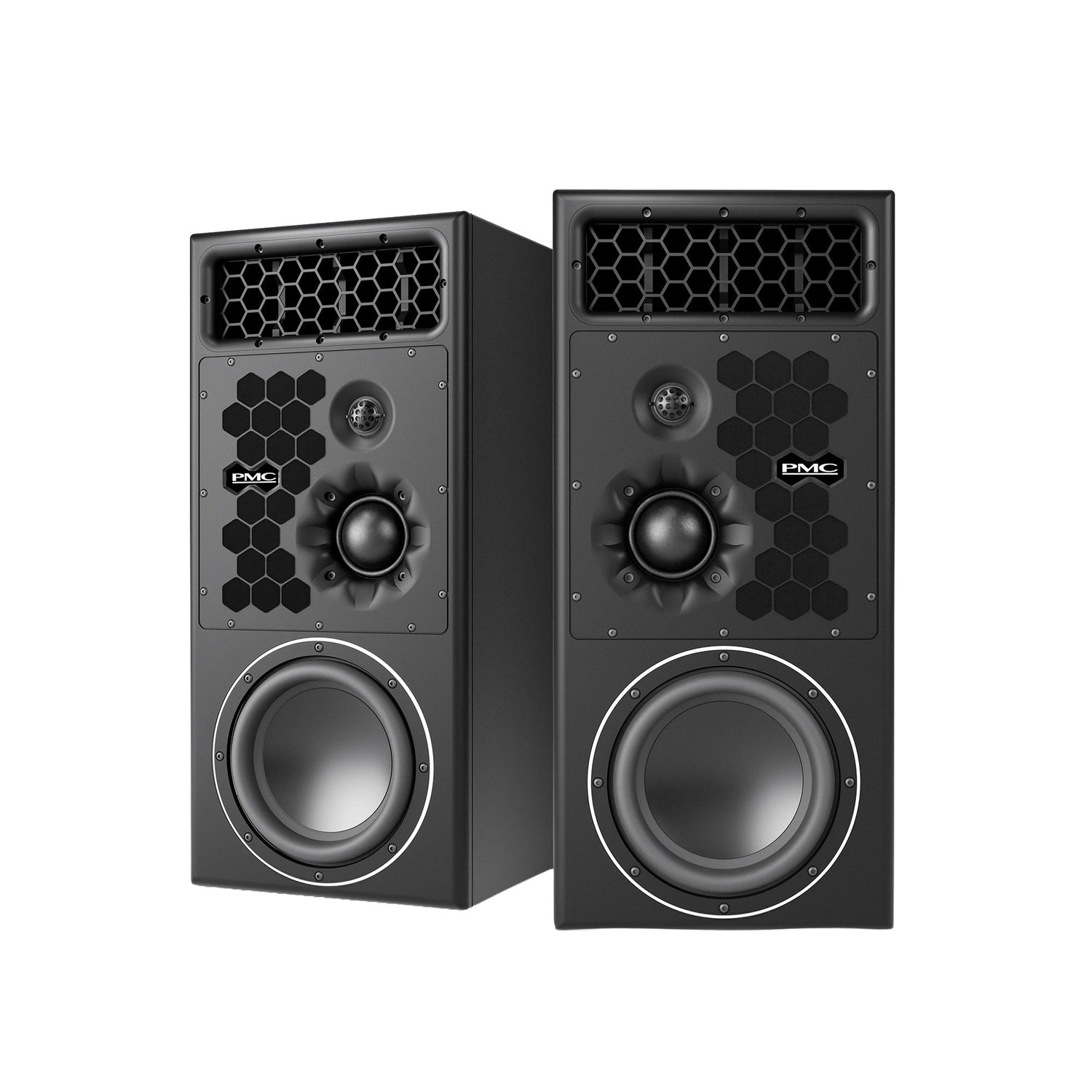

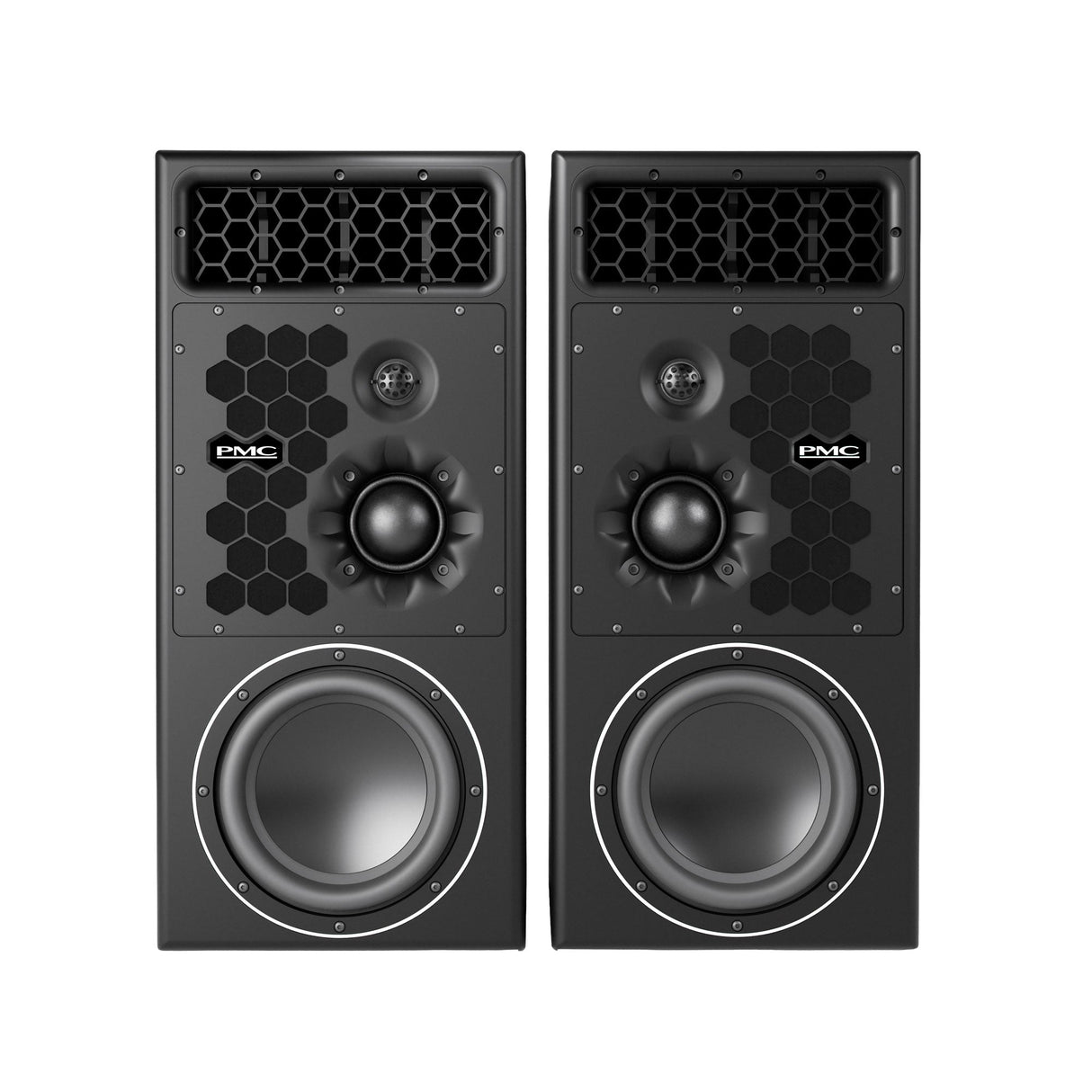

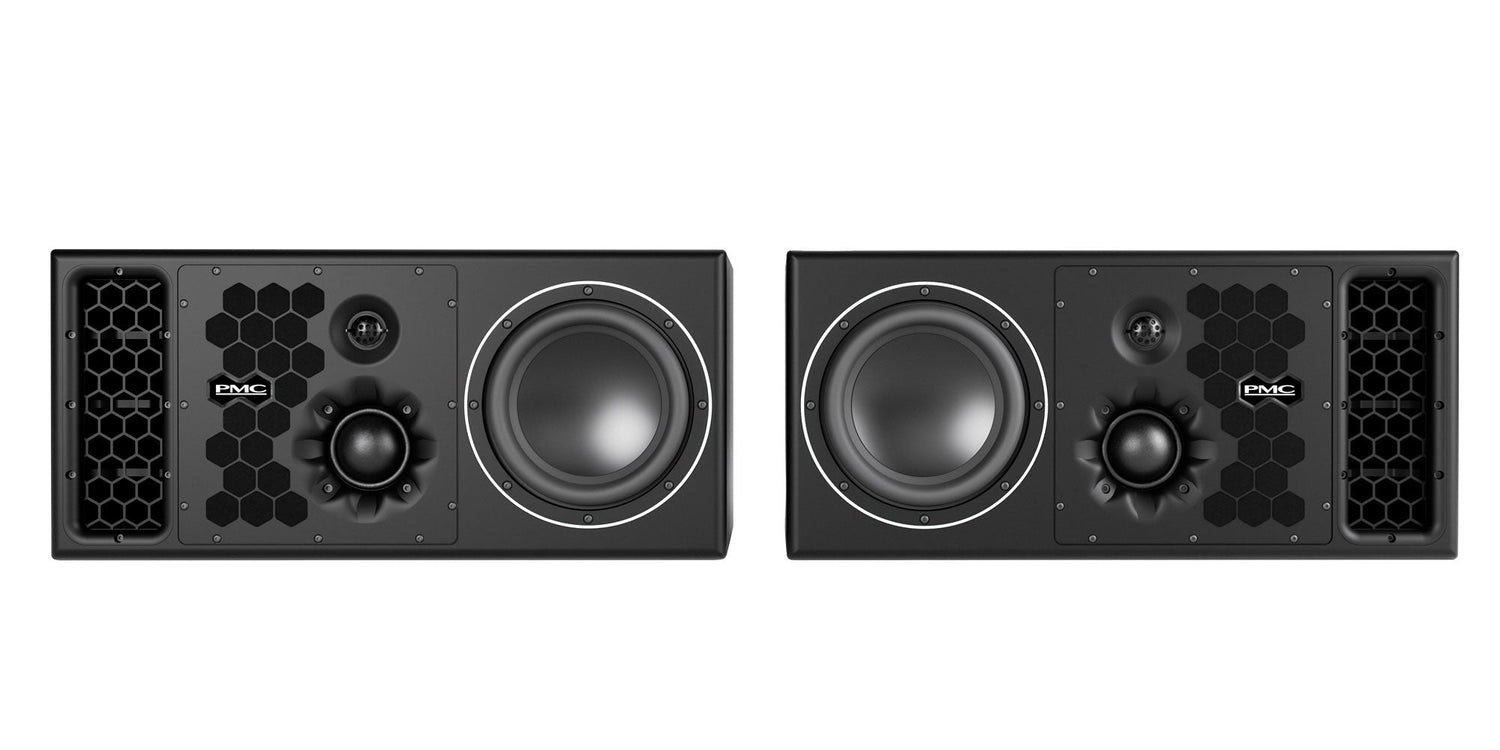

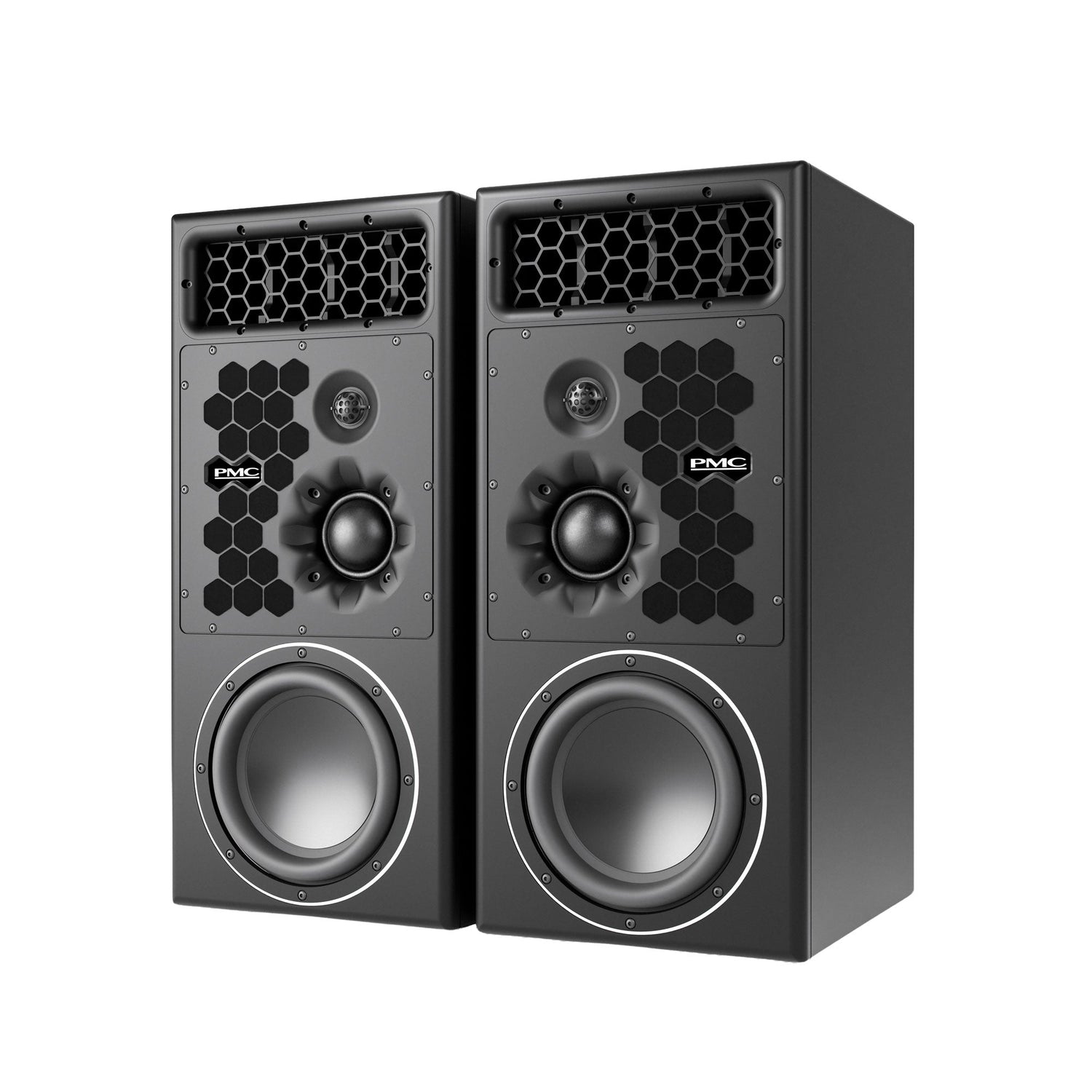

The PMC10 is a compact, high-powered three-way active reference monitor crafted for professional studios seeking precision and scale in a smaller footprint. Designed for music tracking, mixing, mastering, and post-production in stereo or immersive formats, this monitor delivers performance typically associated with much larger systems-all in a cabinet just 770mm tall.

At the core of the PMC10 is a 10-inch custom low-frequency driver, a 75mm soft-dome midrange with a-void™ damping, and a hand-built 34mm soft-dome tweeter. These are integrated into PMC’s acclaimed ATL™ (Advanced Transmission Line) cabinet design, now enhanced with LaminairX™ venting for smoother airflow and more controlled bass. Despite its compact size, the system produces deep, tight low-end and high-resolution detail across the spectrum which is ideal for rooms where space is limited but sonic expectations remain high.

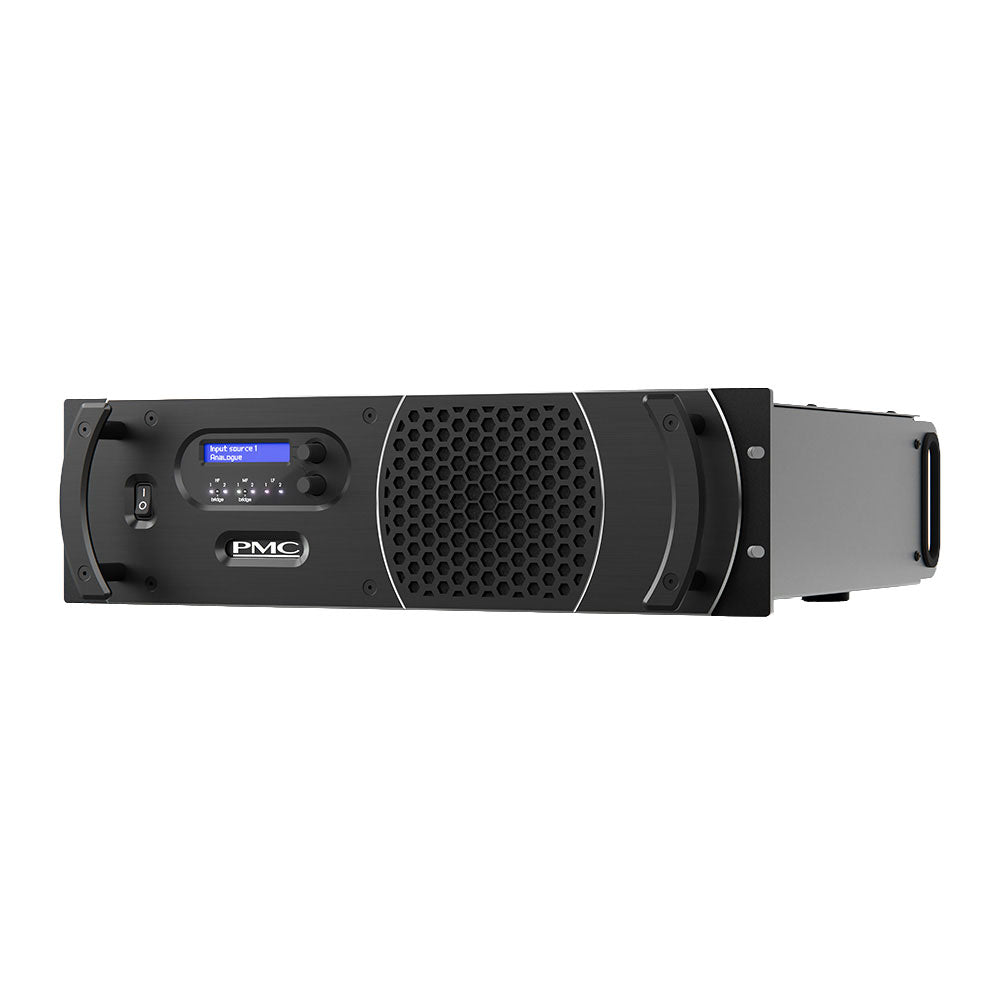

The PMC10 is powered by a rack-mounted master36 DSP/amplifier, delivering 2600W total per cabinet (HF: 800W, MF: 800W, LF: 1000W). This amplifier supports DSP-optimized crossovers, transparent protection, and room alignment EQ, all accessible through the SoundAlign2 browser interface. With both analog and digital (up to 192kHz) inputs, the PMC10 integrates seamlessly into modern workflows and can be scaled into an XBD configuration for enhanced bass headroom and system authority.
