MB3S-A-C

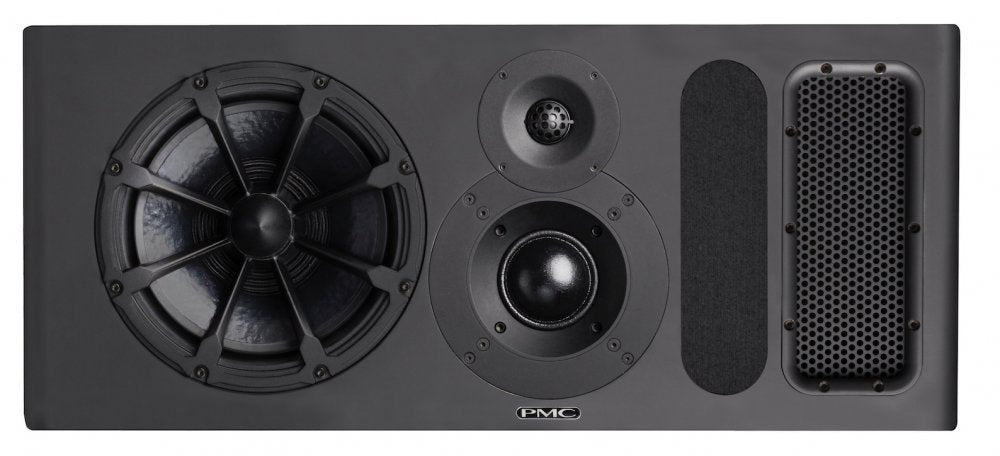

The PMC MB3-A produces an extremely smooth frequency response extending from 20Hz to 25kHz thanks to its ATL technology, and is also capable of producing high SPLs, to a maximum of 126dB, but without the distortion and loss of definition that are frequently associated with a device of its size, and without becoming fatiguing when used for extended periods.

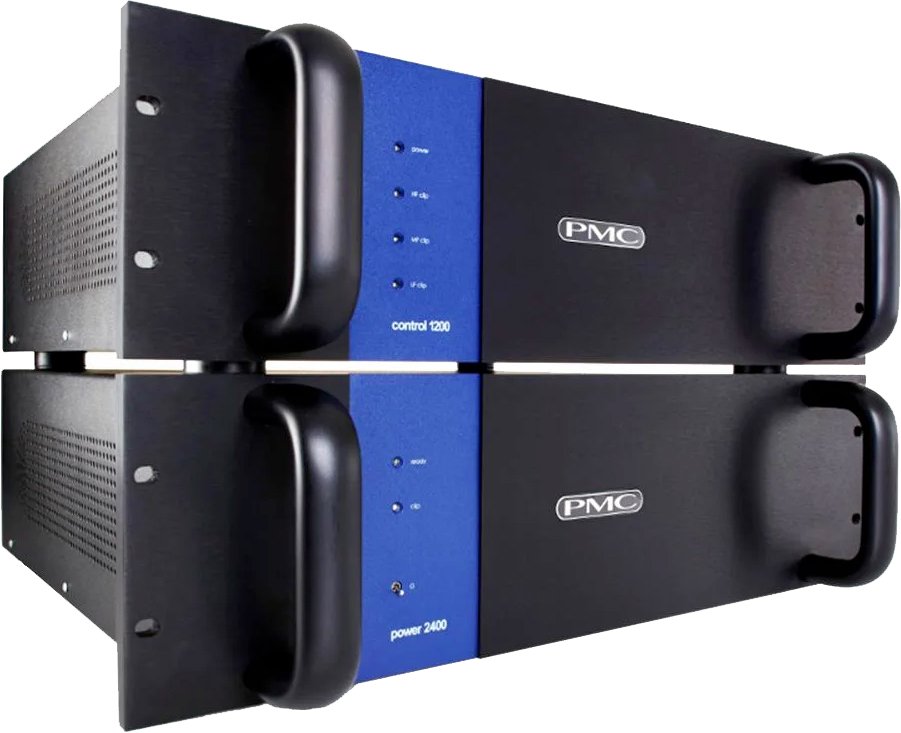

As with all PMC models, there is a matching low-profile centre channel (MB3-C-A) for use in surround configurations. Dedicated subwoofers are not a necessity, as the MB3-A cabinets already cover the 20-60Hz sub-bass frequency range with ease. For this reason, ‘PointOne' channel inputs are included on the Control 1200 to accommodate the LFE or sub channel from multi-channel mixes.

• Type: 3-way ATL active reference monitor

• Frequency response: 20Hz-25kHz

• Power per channel: 3225W (HF 275W, MF 550W, LF 2400W)

• Effective ATL length: 3 metres

• Maximum SPL: 126dB

Available Finishes: Studio black

Crossover Frequency: 380Hz & 3.8kHz

Dimensions: H 870mm (34.2″) x W 380mm (15″) x D 535mm (21″)

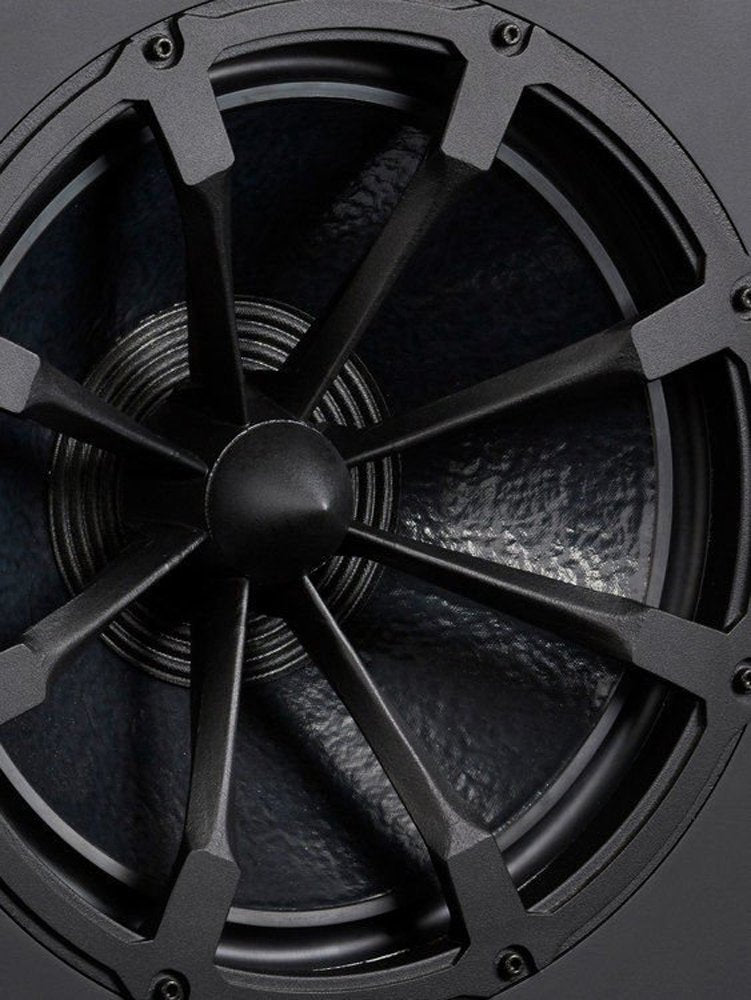

Drive Units: LF " PMC 310mm (12-inch) Radial driver

MF " PMC hand built 75mm soft-dome driver

HF " PMC 34mm soft-dome tweeter with acoustic radiator

Effective ATL Length: 3m (10ft)

Frequency Response: 20Hz " 25kHz

Impedance: Input Impedance 20k Bal

Input Connectors: AES3, 24-bit, 192kHz

Sensitivity: Adjustable +4 to +20dBu

Weight: 49kg (108 lbs) each

Amplifier Power per Channel:

LF " 1 x 2400Wrms

MF " 1 x 550Wrms

HF " 1 x 275Wrms
