Description
Description

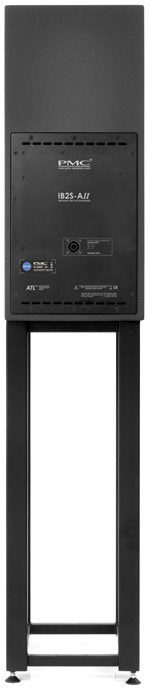

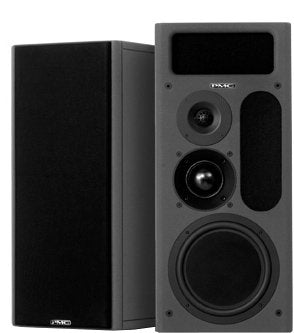

The DSP-controlled, Class-D powered cabinets make use of PMC's ATL (Advanced Transmission Line) bass-loading technology, providing a smoothly controlled, high-resolution low-frequency response. Each cabinet features PMC's hand-built preparatory drivers - the 10-inch carbon-fibre/Nomex™ piston, 75mm fabricdome mid, and the 34mm soft-dome tweeter. The power is supplied by PMC's ultra-low distortion devices that are conveniently rack mountable, providing HF 275W, MF 550W and LF 1200W of acoustically transparent power. This single cabinet monitor features user-adjustable HF and LF shelving filters, ±8dB input level trim, and an AES3 digital input, as standard. The input sensitivity of the balanced analogue inputs can also be adjusted from +4dB to +16dB. In addition, the EQ, level trims and analogue/digital input election settings can be adjusted from a distance using an RJ45-connected remote, which is supplied as standard.
TechnologyATL Tecnology PMC's unique (Advanced Transmission Line) enclosures have taken loudspeaker design to the highest level, using sophisticated cabinet construction, proprietary drive units, and patented absorption materials and techniques. The benefits are enormous compared to the relatively simple sealed and ported designs currently available elsewhere.
Features
Features
Specifications
Specifications
