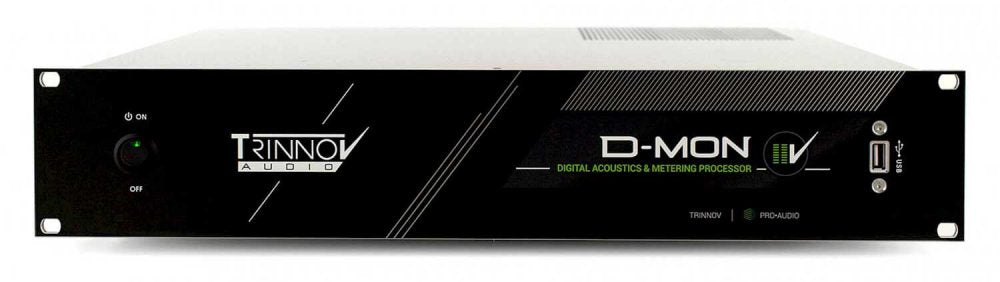

DMON Optimizer

The D-MON Series is a new range of Digital Monitoring Processors, with the acclaimed Optimizer room correction and EUCON integration for AVID Pro Tools systems. The D-MON will fit exactly into your studio configuration. Whatever your speaker sets may be, whether your mixes are in stereo, 5.1, 7.1 or even Dolby Atmos up to 9.3.6.

MODULAR AND UPGRADABLE The D-MON series redefines professional audio monitoring.

Comprehensive feature set and unforessen flexibility makes it one of the most sustainable monitoring solution ever designed.

D-MON supports from 6 up to 18 acoustic Optimization channels. Start with what you need and upgrade later via software update. 6 Optimizer channels are included on the base unit and it is upgradeable for up to 18 Optimizer channels.

TRINNOV OPTIMIZER Our world-renowned room correction Optimizer Technology is recognized as best-in-class by users and reviewers across the professional, commercial cinema and high-end audio worlds.

Introduced to the pro audio market in 2006, its revolutionary solution was quickly embraced by many of the most demanding music, broadcast and post-production sound engineers.

Optimizer technology is now used in nearly 2,000 studios across the globe with nearly 10,000 high-performance installations worldwide.

MULTIPLE SPEAKER SETS D-MON is a powerful processor when it comes to integrating multiple speaker sets

You can not only optimize up to 18 speakers but also mix and match them in any way or form.

Use your main sub with your near fields, create a 5.1 out of two sets or optimize only your surrounds, the possibilities are endless.

PERFECT MATCH FOR DOLBY ATMOS D-MON meets Dolby's requirements for Atmos. Whether you mix TV or Music content, D-MON accomodates any Atmos Home speaker layouts. Optimize any system from 5.1.4 up to 9.3.6.

MATRIX BASS MANAGEMENT D-MON supports and helps with the integration of multiple subwoofers. Bass manage any speaker to one or multiple subwoofers. Advanced management system with custom filter details (freq, slope, shape)

INTEGRATES WITH AUDIO OVER IP Ravenna/AES 67 support, compatible with Aneman Dante compatibility mode Add an extra 16in/16outs at 48kHz to every D-MON processor

ENHANCED MONITORING • Both Analog and Digital professional inputs and outputs • Integrates easily from MIDI and GPIO to Avid and EUCON protocols. • A zero latency Switching Matrix to route all signals. • An Internal Mixer which can create various sums of stems. • Trinnov's Optimizer to perfectly tune any speaker sets.

MADE FOR ONE ANOTHER Our brand-new hardware remote controller "La Remote" is the perfect companion to our D-MON.

• 6 Optimizer channels included on the base unit upgradeable up to 18 channels

• Latency-free Audio Routing Matrix, User assignable Functions (Main, Alt, Cues, Talk-Back, Listen-Back...,)

• 16 channels low latency mixer

• Full control via Trinnov La Remote

• Eucon compatible, ICON DControl/DCommand compatible. Custom integration via midi or GPIO

• All OPTIMIZER functions for best Room Correction from Stereo to full Atmos 9.3.6 Speaker Sets

• AoIP RAVENNA, with DANTE compatibility via AES67 (48 KHz) (software upgrade from Dec. 1st 2021)

• Matrix Bass Management, with several subwoofers per speaker-set (software upgrade from Dec. 1st 2021, for previous and new machines)

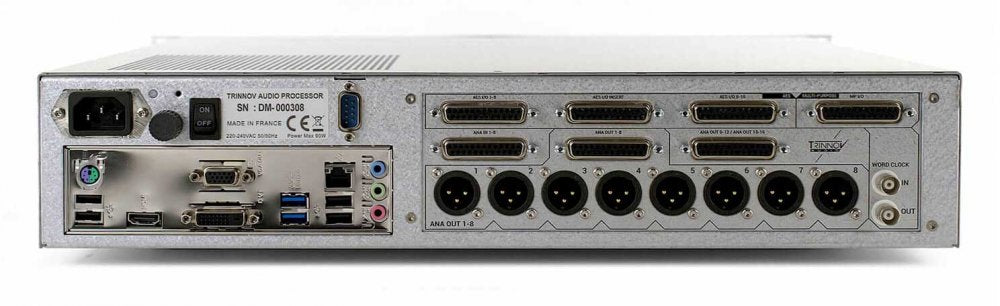

DIGITAL AUDIO CONNECTIVITY:

AES3 Outputs (DB25) Tascam Pinout: x16

AES3 Outputs (DB25) Tascam Pinout: x16

Ravenna/AES67: 16 inputs/16 outputs

Dante compatibility: Yes (48kHz)

Wordclock (BNC): x1 Input, x1 Output

ANALOGUE AUDIO CONNECTIVITY:

Balanced inputs (DB25): x8

Balanced outputs (DB25): x16

Balanced outputs (XLR): x8

AUDIO OVER IP CONNECTIVITY:

Ravenna / AES67: 16 inputs/16 outputs

Dante Compatibility: Yes (48kHz)

PTP Leader Clock: No (sync via AES/EBU or WC)

MULTI PURPOSE I/O (DB25):

General purpose control inputs: x2

General purpose control outputs: x1

Talk Back / Listen Back inputs: Balanced inc. 36V Phantom power

Headphones output: x1 unbalanced

MIDI: x1 Input, x1 Output

SWITCHING & SUMMING:

Sources: 8 Cues/TB/LB

Monitor Selection: Programmable presets & profiles

Switching: Any input, bus or Optimizer out to any physical out

Summing: 18 in / 16 bus

AUDIO PROCESSING:

Native resolution (up to 12 channels): 96kHz

Native resolution (above 12 channels): 48Khz

Per channel: 31 band EQ, FIR EQ, gain, polarity and delay

Per channel delay setting: Meters / Milliseconds / Frames

Global delay setting: Meters / Milliseconds / Frames

AUDIO PERFORMANCE:

ADC Resolution / Sampling Rate: 24 Bits/96 kHz

DAC Resolution / Sampling Rate: 24 Bits/96 kHz

A/D Signal-To-Noise Ratio: 119 dB (A-Weighted)

D/A Signal-To-Noise Ratio: 118 dB (A-Weighted)

Processing Sampling Rate: Native, up to 96kHz

Processing Resolution: 64 bits floating point

Clock / Jitter: attenuation > 50 dB Above 100Hz

POWER SUPPLY:

Power requirement: 240V / 110V - 50 / 60Hz (Manual Switch)

Power consumption: 60W

Mains fuse: 1A slow blow

Analogue section PSU: Dedicated linear PSU with toroidal transformer

Digital section PSU: Switch-mode PSU

WEIGHT & DIMENSIONS:

Dimensions (W x H x D) mm: 444 x 89 x 405

Dimensions (W x H x D) inches: 17 1/2" x 3 1/2" x 16"

Shipping box dimensions (W x H x D) cm: 68 x 56 x 21

Weight: 9.60kg / 21.1 lbs

Shipping weight / volume: 12.50 kg / 0.08 M3

Rackmounting: 2U - Fixed Rack Ears
