General Specifications
Device Type: Immersive Audio Processor

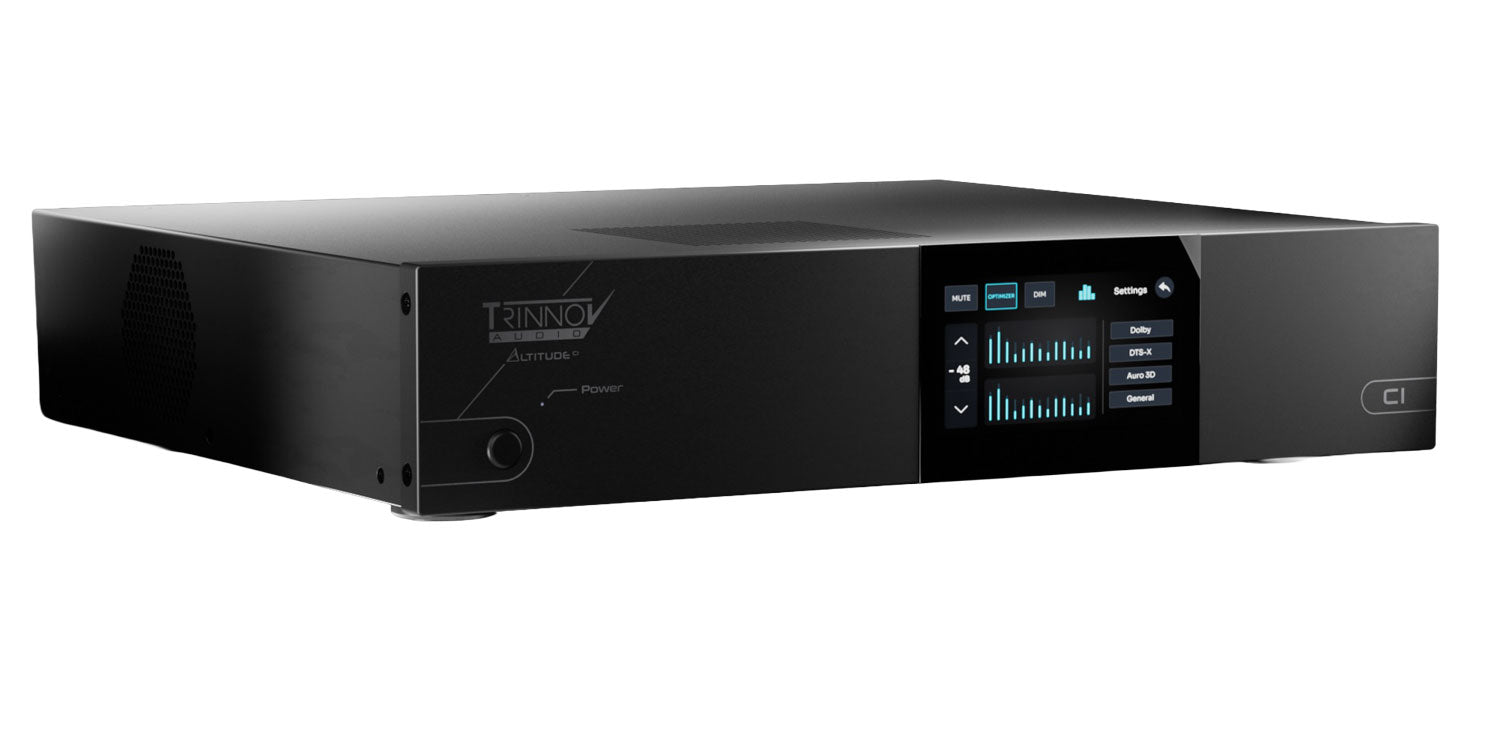

Model: Trinnov AltitudeCI
Channel Configurations: Scalable from 8 to 32 outputs (2-channel increments)
Future Upgrade (2026): Up to 64 output channels (build-to-order)
Audio Processing Architecture: 64-bit floating point software-based
Sample Rate: Up to 192 kHz (channel-dependent)
Form Factor: 2RU Rack-Mountable
Net Weight: 8.6 kg (19 lbs)
Dimensions (W x H x D, no ears/feet): 438 × 88 × 371 mm (17.24 × 3.46 × 14.61 in)
Dimensions (with ears/feet): 482 × 97 × 371 mm (18.98 × 3.82 × 14.61 in)

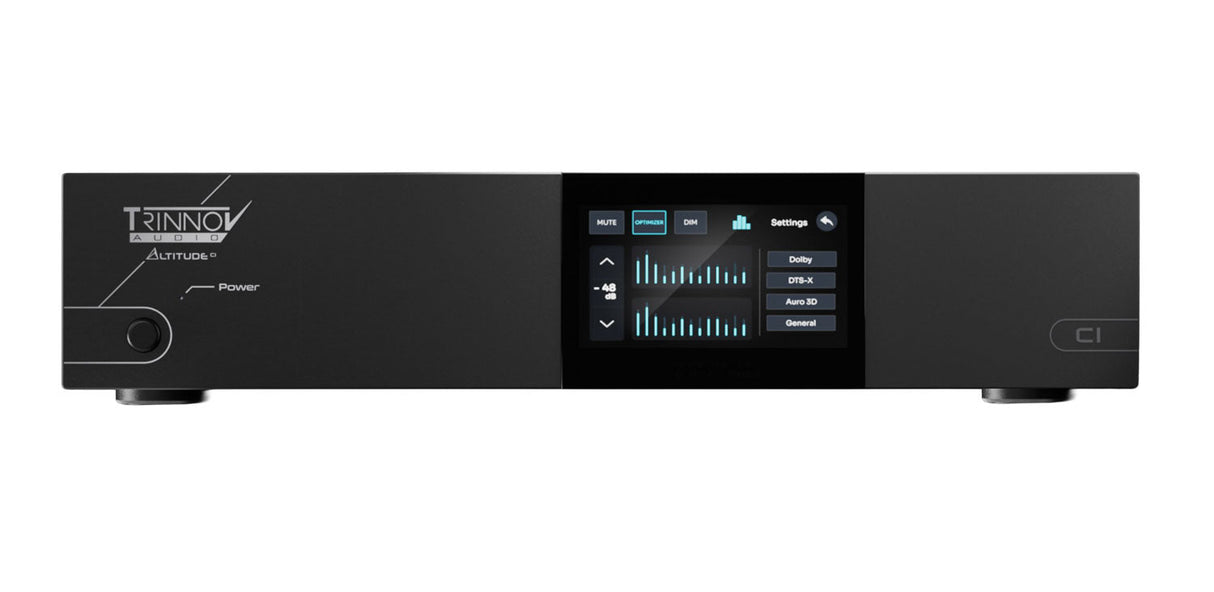

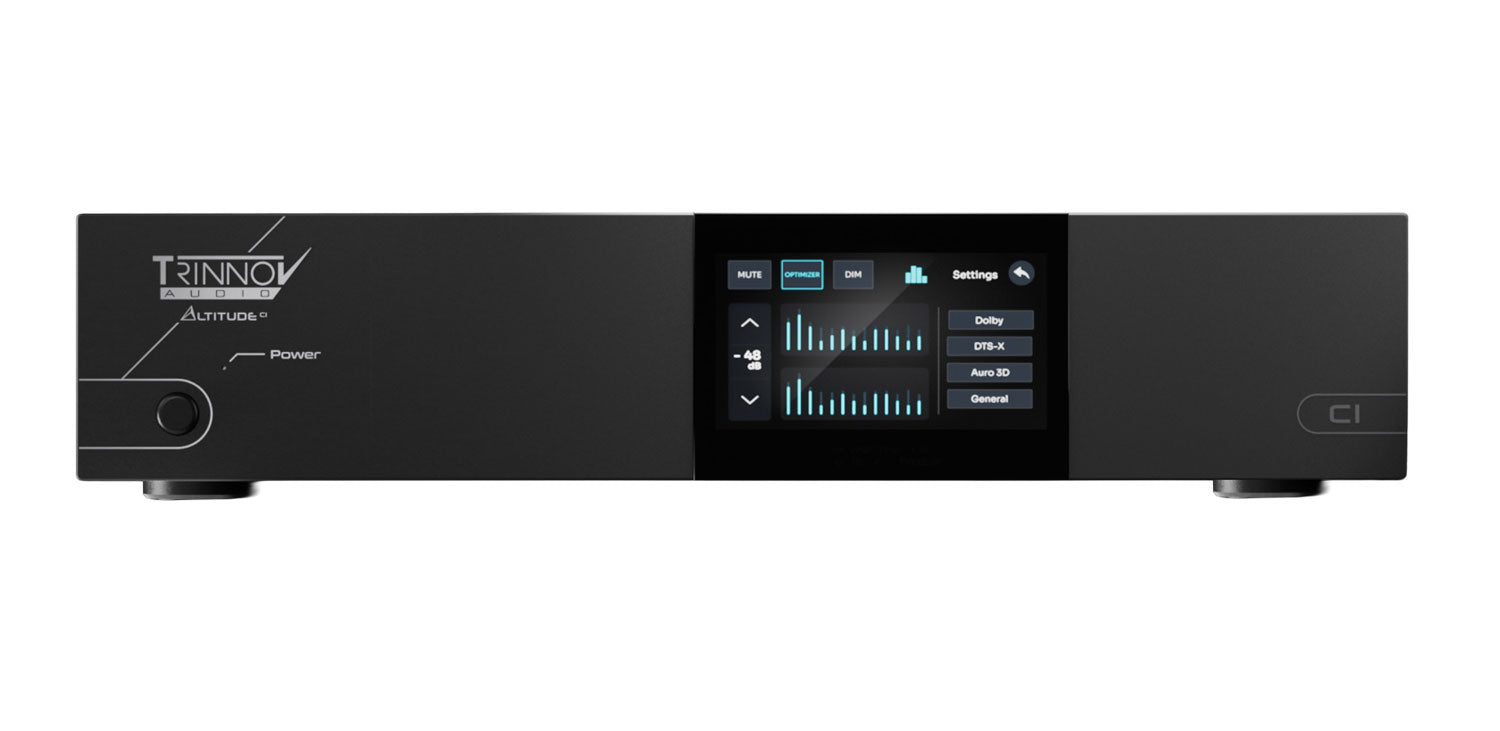

Front Panel: 5-inch touchscreen, smoked-glass and brushed aluminum
Immersive Audio Support
Decoded Formats: Dolby Atmos, DTS:X Pro, Auro-3D, IMAX Enhanced
Upmixers: Dolby Surround, DTS Neural:X, Auro-Matic
Channel Assignment: Flexible, any decoded channel to any speaker output
HDMI Specifications
Inputs/Outputs: 4 x HDMI In, 2 x HDMI Out
Version: HDMI 2.1 with HDCP 2.3
Bandwidth: 40 Gbps (all ports)
Video Resolutions: Up to 8K60 (4:2:0), 4K120 (4:4:4)
HDR Support: HDR10, HDR10+, Dolby Vision, HLG
Gaming Features: VRR, FRL, ALLM
Features: ARC/eARC, OSD, full pass-through
Audio Input Connectivity
Dante: Up to 32 input channels
Ravenna / AES67: Up to 32 input channels (48 kHz)
AES/EBU: Up to 32 inputs via 2 x DB25
S/PDIF: 1 x Coaxial, 1 x Optical
3D Microphone: 1 x Ethercon (with power)
Future Input (2026): Up to 64 AoIP input channels (build-to-order)
Audio Output Connectivity
Analog Outputs: 8 x balanced via 1 x DB25
AES/EBU: Up to 32 outputs via 2 x DB25
Dante: Up to 32 output channels
Ravenna / AES67: Up to 32 output channels (48 kHz)
Analog Output Level: +18 dBu max
THD+N: 110 dB (1 kHz 0 dBFS, 20 kHz BW)
Dynamic Range: 115 dB A-weighted (ref +18 dBu)
Output Routing: Any output to any physical channel (analog, digital, AoIP)
Networking & AoIP
Ethernet Ports: 3 (1 x RJ45, 2 x SFP cages)
SFP Module: 1 x RJ45 provided
Networking Modes: Integrated switch, isolated, or redundant
Supported Protocols: Dante (native hardware), AES67, Ravenna
DirectLink: Supported with Amplitude16
Dolby Media Server Compatibility: Via AES67
Control & Integration
User Interfaces: macOS/Windows App, Web UI, iOS/Android App
Control Protocols: IR (3.5mm jack), RS-232, IP
Triggers: 1 x Input, 4 x Programmable Outputs
Control Drivers: Crestron, Control4, Savant, RTI, AMX, Nice, AVA
Remote Management: my.trinnov.audio Partner Access
IR Receiver: Included
IR Remote Control: Optional
Power Modes: Standby & Fast Boot (firmware-ready)
Digital Acoustic Optimization
Included Technologies: Trinnov Optimizer™, WaveForming™, Remapping™
Calibration Workflow: Step-by-step guided
3D Mic Support: Auto compensation file upload via Ethercon
Streaming Audio
Roon: Certified Roon Ready (coming soon)
Audirvāna: Certified (coming soon)
UPnP Formats: FLAC, WAV, MP3, OGG
Power & Thermal
Power Supply: 100–240V Auto-Switching
Max Power Consumption: 140 W
Idle Power: 0.5 W
Cooling: Temperature-Controlled Exhaust Fans
Heat Output: 480 BTU/hr
Main Fuses: 2 x T800mA
Included Features
Software Scalability: Upgrade channels via software
Hybrid Routing: Analog, Digital, AoIP (no external converters required)
Use Case Flexibility: From 2.0 Hi-Fi to 64-channel DCI-grade systems
UI Languages: Multilingual
UI Security: Password lock (coming in future firmware)
UI Modes: Guided Setup & Expert Mode
Optimized Pairing
Ideal Match: Amplitude16 Power Amplifier
Shared DAC Architecture: Consistent quality across analog and AoIP paths
AoIP Routing: Extended via Dante input board on Amplitude16
Stackable Chassis: Matches Altitude and Amplitude design for clean racks
