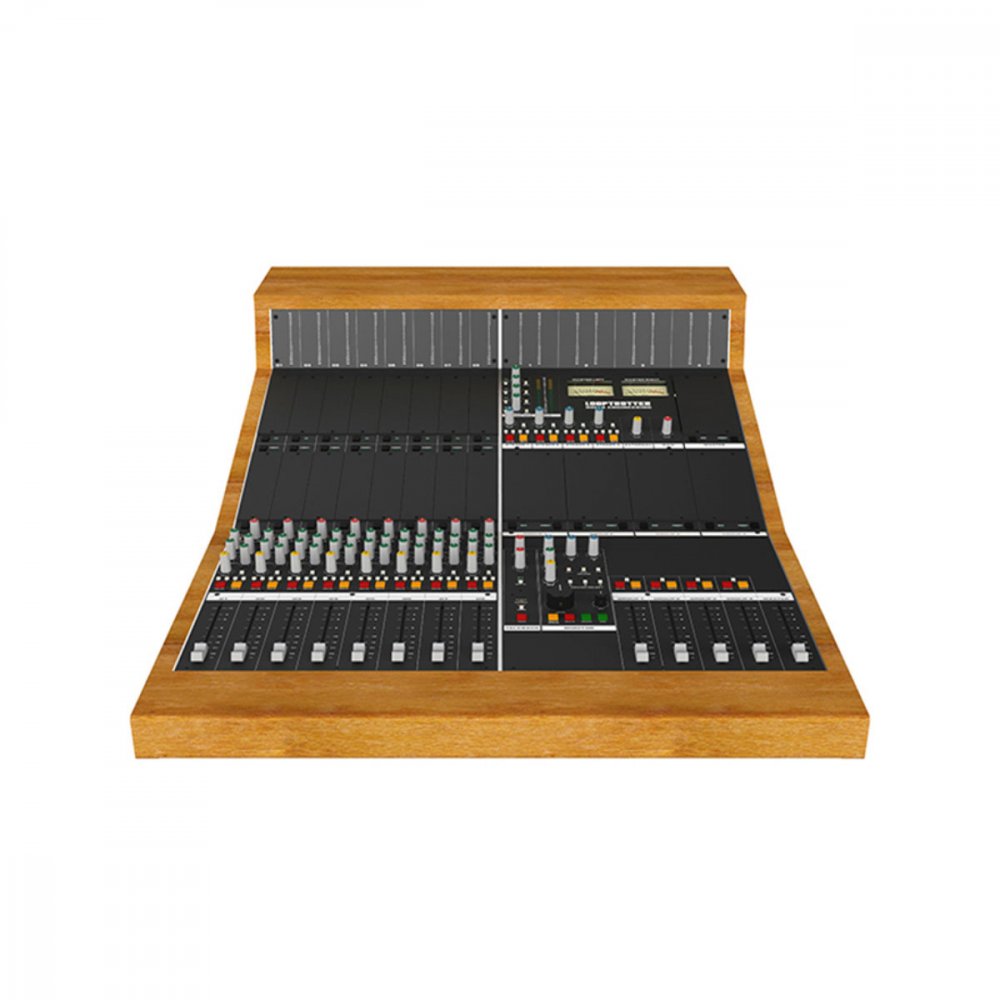

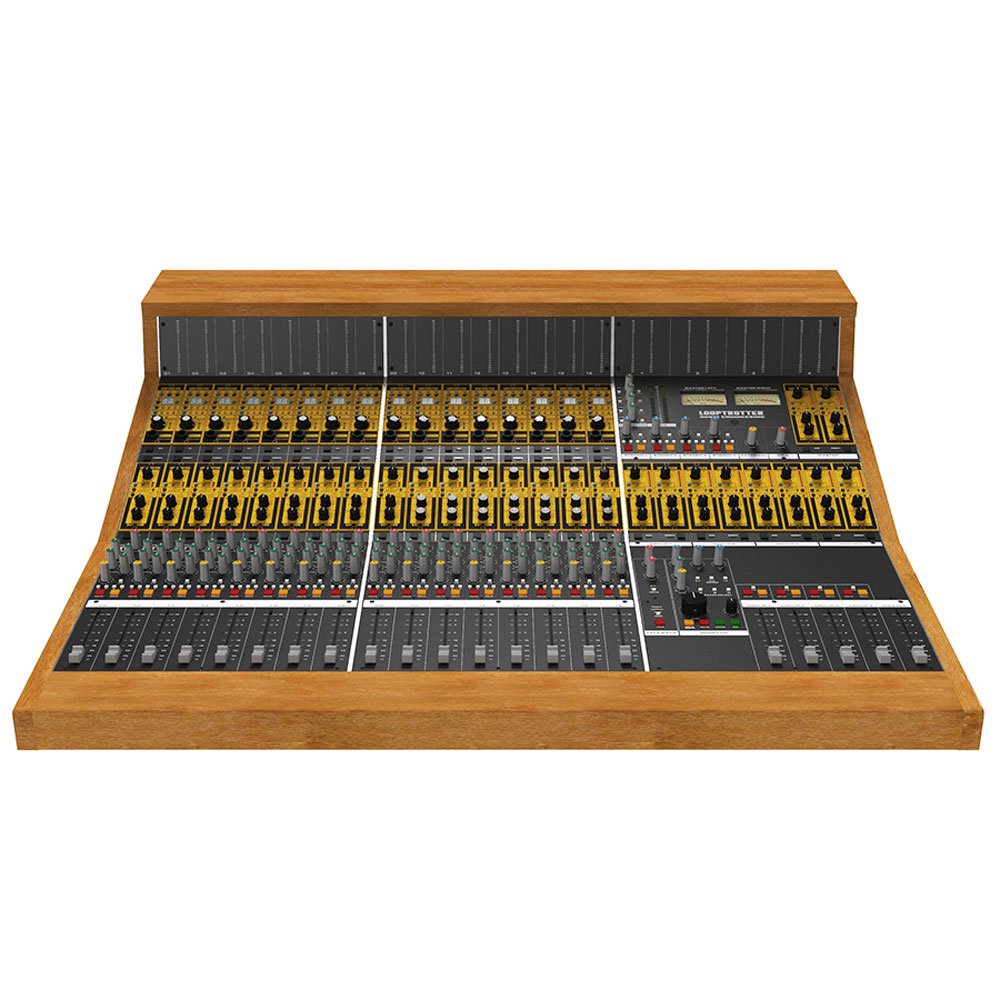

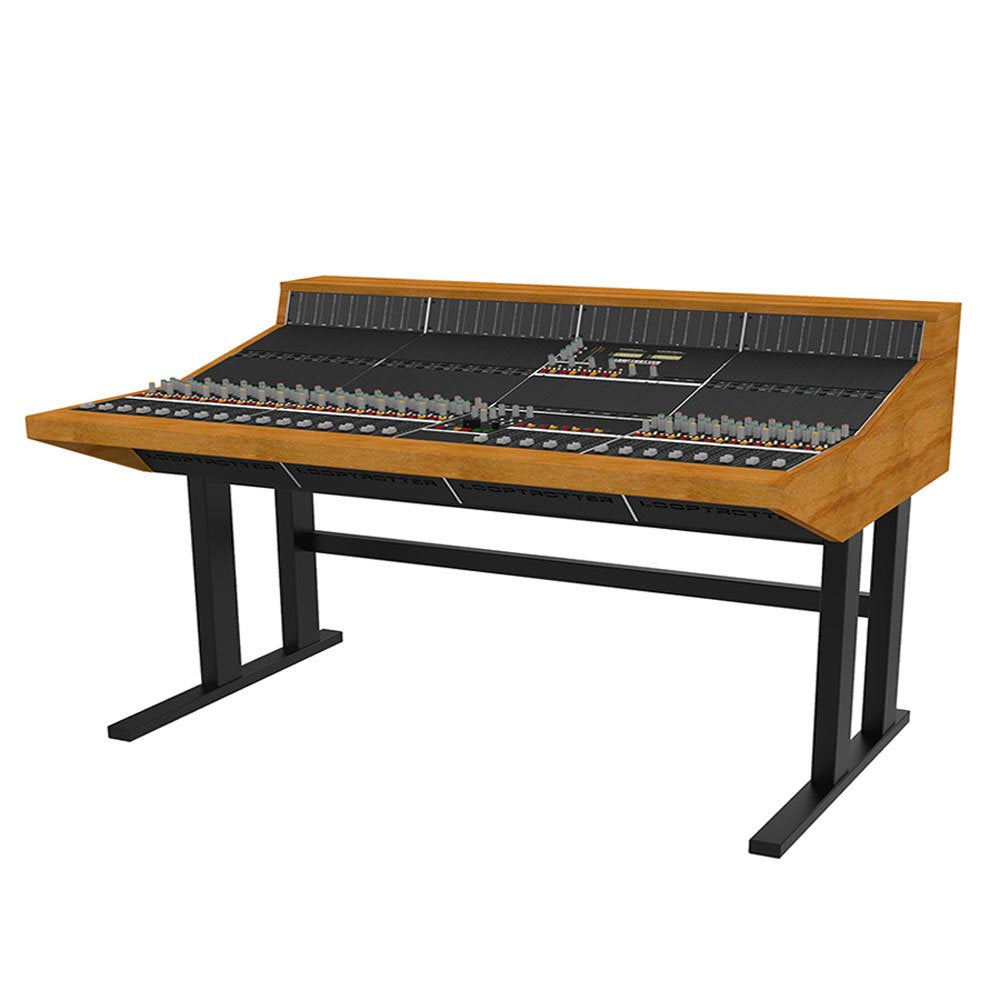

Modular Console

The Looptrotter Modular Console is a highly adaptable and professional-grade solution designed for studios and engineers who utilize the 500 series ecosystem. Rather than relying on fixed internal preamps or EQs, it offers a completely modular design, allowing users to install their preferred 500-series modules directly into each channel. This flexibility empowers audio professionals to craft their ideal signal path and tailor their console to any session or style simply by swapping out modules. Whether you're tracking, mixing, or summing, the console's architecture ensures pristine analog signal flow while supporting creative freedom and personalization.

Beyond its modularity, the console boasts robust routing and monitoring features that enhance both workflow and audio quality. Each of the eight channels includes two 500-series slots, four Aux sends, panning, Mute and Solo buttons, and a direct "To Tape" level control for effortless analog recording or re-tracking. The Master Module amplifies this versatility with an intuitive monitor section, five assignable stereo buses, VU metering, and extensive Talkback/Listen capabilities, making it equally powerful for both tracking and mixing environments. With high-quality Alps faders, true bypass routing, and exceptional build quality, the Looptrotter Modular Console offers a hands-on, tactile experience that bridges analog warmth with modern flexibility"ideal for studios seeking a customizable centerpiece.

• Fully Modular Design: Customize each channel with your choice of 500-series modules for total flexibility.

• Dual 500-Series Slots Per Channel: Easily swap preamps, EQs, or other modules to shape your sound.

• High-End Analog Summing: Delivers top-tier analog mixing with the warmth and clarity professionals seek.

• Built-In Routing and Insert Control: True Bypass and detachable inserts available on all key signal paths.

• Flexible Channel Controls: Each channel includes Mute, Solo, Panning, 4 Aux Sends, and To Tape level control.

• Versatile Recording & Mixing Options: Switch between Record and Mix modes for seamless workflow transitions.

• Expandable Summing with Group Routing: Assign any channel to four stereo groups, the master bus, or both.

• Advanced Monitoring Section: Select between three speaker sets, DAW return, LR mix, or external input with individual level control.

• Integrated Talkback System: Includes built-in and external mic options, three talkback modes, and footswitch control.

• Complete Connectivity: Multiple balanced I/O options via XLR, TRS, and DB25 for full studio integration.

• High-Quality Components: Features ALPS faders, discrete analog circuitry, LED metering, and durable construction throughout.

• Master and Group Processing: Each summing group and the master bus include dual 500-series slots with insert and bypass controls.

GENERAL SPECIFICATIONS:

• Fully modular analog console system

• 100% analog signal path with discrete OP-AMPS

• Customizable configuration using interchangeable 500-series modules

• Compatible with most 500-series modules on the market

• No built-in preamps or EQs " uses 500-series slots instead

• Default wooden finish; other veneers available

• True Bypass capability for all module slots and external inserts

• Integrated analog summing, advanced Talkback/Listen system, and monitor control

• Fully operational as an empty frame with no 500-series modules installed

CHANNEL MODULE (8-CHANNEL BLOCK):

• 2 x 500-series slots per channel with True Bypass

• Selectable work modes: RECORD (MIC) and MIX (DAW)

• MIC/LINE input (DB25) and DAW input (DB25)

• Direct TAPE/DAW output with adjustable "To Tape" level (DB25)

• INSERT SEND and RETURN (DB25)

• 4 x AUX sends per channel with PRE/POST switching

• PAN control with +3 dB at hard left/right

• Routing: L-R mix, groups 1"4, or all combined (5 assignable buses)

• MUTE and SOLO switches

• 24-LED pre-fader peak meter (0 = 0dBu)

• Alps faders

• LED meter bridge included

STEREO INPUTS:

• 4 x stereo inputs (DB25)

• Routing to L-R mix or stereo groups 1"4

• Stereo LEVEL control

• MUTE and SOLO switches

GROUP MODULES:

• 4 x stereo groups

• 2 x 500-series slots per group with stereo sidechain link

• True Bypass and INSERT ON/OFF per slot

• GROUP OUTPUT connector post-insert and fader (DB25)

• Stereo fader and Alps faders

• MUTE, SOLO, and L-R routing buttons

• Group LED meters included

MASTER MODULE:

• 2 x 500-series slots on Master Buss (L/R) with True Bypass

• INSERT ON/OFF for Master Buss

• Analog VU meters for L-R output (0dB = +4dBu)

• DAW input level control

• External input level control

• 4 x AUX Masters with PRE/POST switching and SOLO

• LED meters for AUX SOLO level

• SOLO switches for each group

• MUTE switches for each group

• 5 assignable stereo summing groups: groups 1"4 + master

• Summing group LED meters (bridge)

• Built-in talkback mic with adjustable gain

• Listen mic input with adjustable level

• External talkback mic input (XLR, 48V phantom) with gain control

• Studio listen mic input (XLR, 48V phantom) with gain control

• Talkback footswitch input (TRS)

• Talkback modes: MOMENTARY, STABLE, AUTO (via USB MIDI Timecode)

• Routing options for talkback: AUX 1"4, Studio Loudspeaker (SLS)

MONITOR SECTION:

• Selectable sources: L-R mix, DAW return, External input

• 3 x monitor outputs (A/B/C) with individual TRIM controls (XLR)

• MONO summing option

• Monitor MUTE and DIM switches

• DIM attenuation adjustable from -30dB to 0dB

• SOLO bus monitoring with SOLO LEVEL control (-30dB to 0dB)

• PHONES level control and ¼" TRS headphone output

• SOLO CLEAR switch

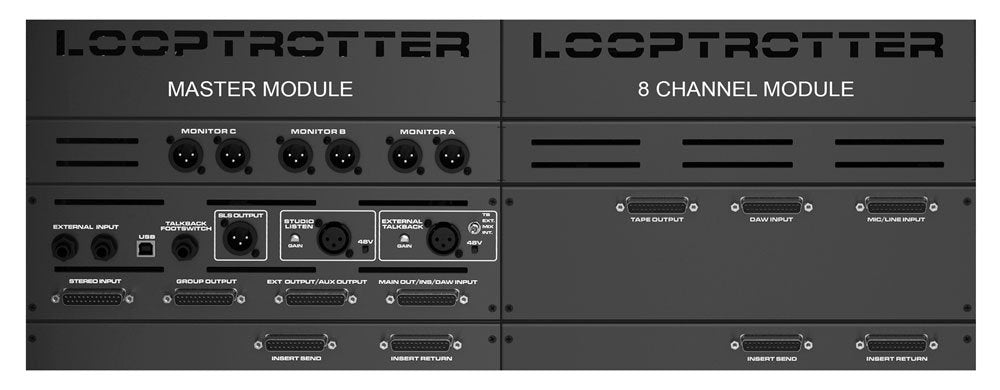

CONNECTIVITY:

• Mic/line input: DB25

• Daw input: DB25

• Tape output: DB25

• Insert send/return: DB25

• Main output: DB25

• Group output: DB25

• Stereo input: DB25

• Aux outputs: DB25

• External output: DB25

• Studio loudspeaker (sls) output: XLR

• Studio listen input: XLR

• External talkback input: XLR

• External stereo input: 1/4 TRS (rear), RCA (front)

• Monitor outputs a/b/c: XLR

• Talkback footswitch input: TRS

• USB port for midi timecode (talkback auto mode)
