GRACE DESIGN  |  Barcode: MOXI

MOXi

$963.00 CAD

2 in stock

Description

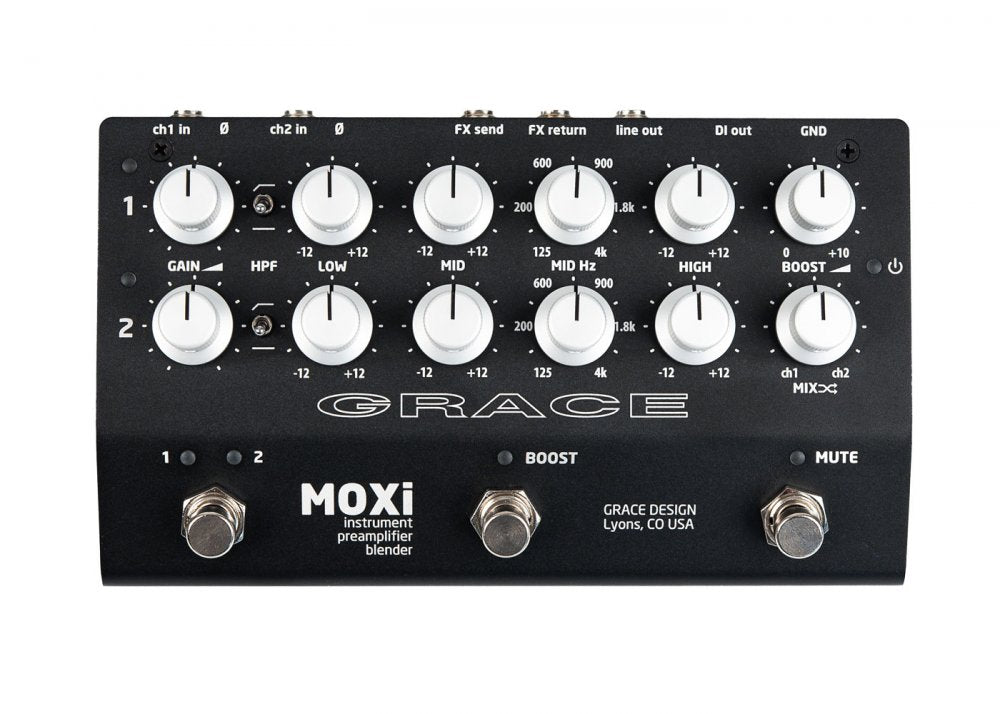

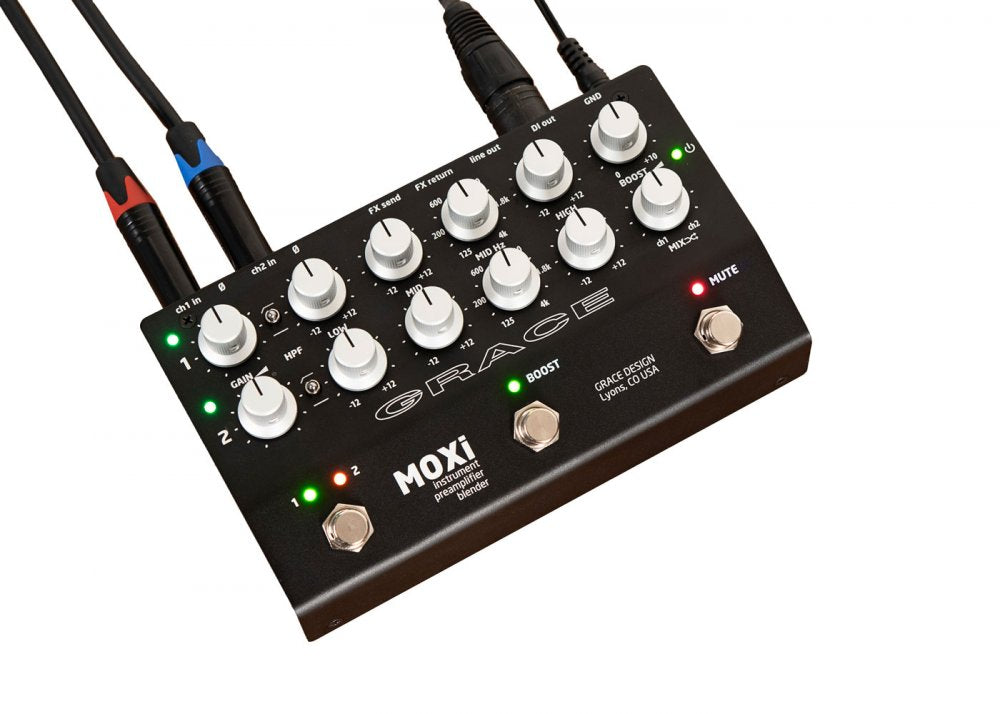

The MOXi from Grace Design is a compact yet powerful dual-channel preamp and DI designed specifically for acoustic instrument players. Positioned as the sweet spot between the feature-rich FELiX and the simpler BiX, MOXi brings Grace's renowned audio fidelity to a more streamlined and pedalboard-friendly format. It's an ideal choice for musicians who require top-tier sound quality, flexible EQ, and dual-channel functionality without the complexity of larger systems.

Each channel features a musical-sounding preamp, independent 3-band EQ, and a 75 Hz high-pass filter, offering precise tonal control. The unit supports blending or A/B channel switching, making it perfect for multi-instrument setups. Key performance features include a transformer-balanced XLR DI output, a separate stage amp output, an FX loop with individual send and return, and footswitches for mute/tuning, A/B switching, and a 10 dB variable boost. Additional enhancements include phase reverse, 12V mic bias on each 1/4" input, and a robust build designed and manufactured in Lyons, Colorado.

Whether you're gigging, recording, or crafting the perfect live setup, the MOXi delivers exceptional sound, versatility, and reliability in a sleek and user-friendly design.

Specifications

General Specifications

2-channel high-quality acoustic instrument preamp, EQ, and DI

Designed and built in Lyons, Colorado, USA

Power requirement: 9VDC, 150mA

Inputs

2 x 1/4" inputs (ch1 and ch2)

12V mic bias power available on both 1/4" inputs

Input impedance: 1 Mohm on both channels

Independent phase reverse switch for each channel

Equalization

Independent 3-band EQ per channel

LF (Low Frequency), MID, and HF (High Frequency) controls

75Hz high-pass filter (HPF) on each channel

Compressor / Dynamic Control

Boost footswitch for variable +10dB level boost

Rear panel Boost defeat switch for ch1

Blend/MIX or A-B output operation

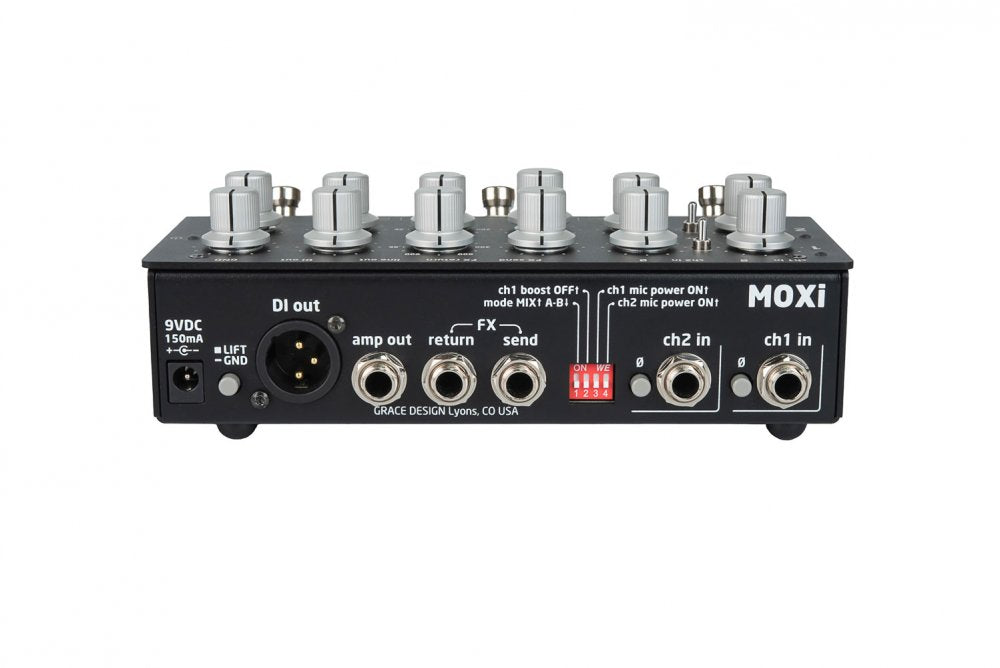

Outputs

Balanced XLR DI output with high-quality output transformer

Line-level 1/4" stage amp output

FX loop: separate 1/4" send and return jacks

Ground lift switch

Controls & Footswitches

A/B footswitch to toggle instrument setups

Mute/Tune footswitch: mutes all outputs except FX send

Boost footswitch with rear panel defeat toggle (ch1 only)

Connectivity

1 x XLR DI out

1 x 1/4" line level amp out

1 x FX send and 1 x FX return

9VDC power input
